Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

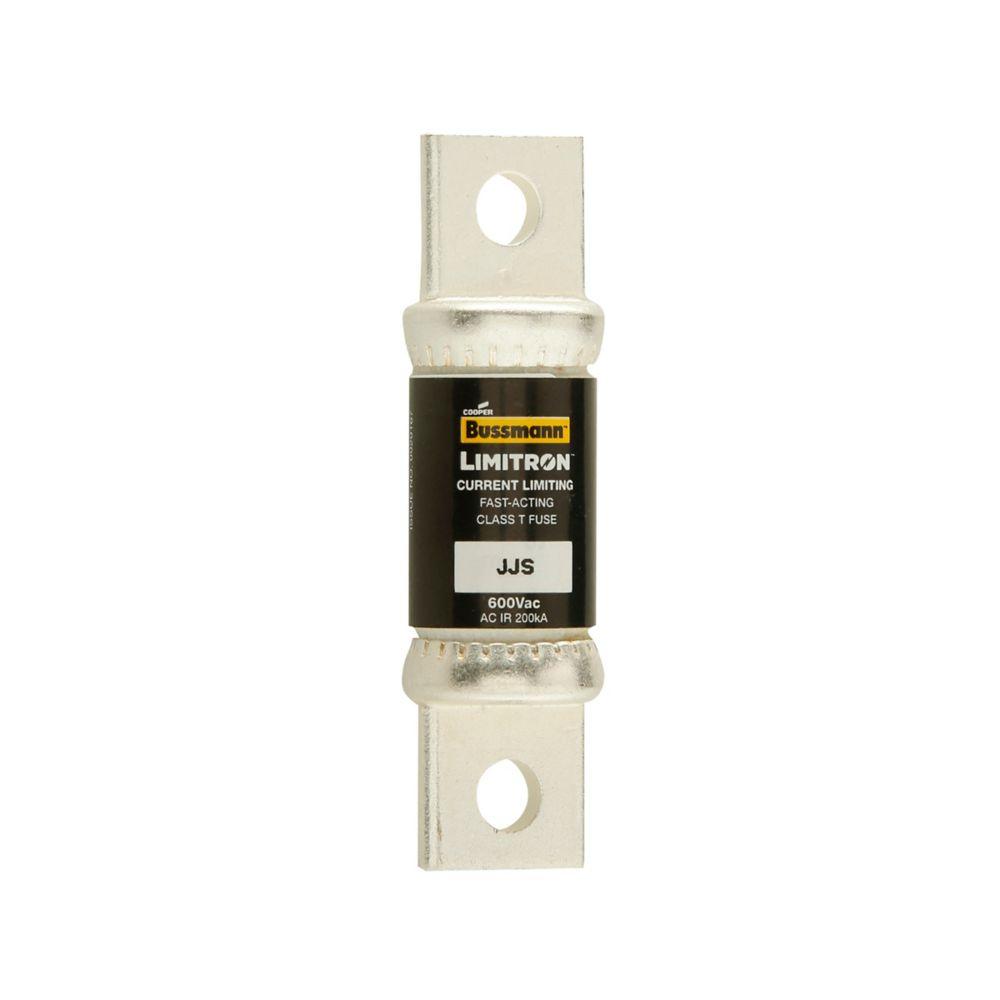

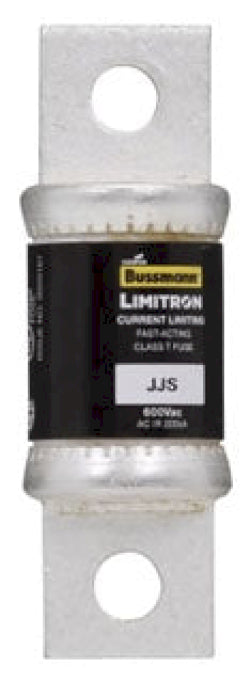

JJS-125
JJS-125 is a fast-acting Class T fuse from Eaton Bussmann designed for current limiting and VFD line protection applications.This 125 amp, 600 volt AC fuse features a small footprint with bolted blade end connections for secure mounting. It offers a high interrupting rating of 200,000 amperes symmetrical and complies with UL 248-15, CSA, and CE certifications. The JJS series fuse is non-indicating and provides very fast acting characteristics suitable for protecting sensitive equipment.
- Amperage: 125 A
- Voltage Rating: 600 Vac
- Fuse Class: T (Class T)
- Interrupting Rating: 200,000 A symmetrical
- Mounting Type: Bolted blade ends
- Fuse Type: Fast acting, current limiting
- Length: 3.25 inches
- Certifications: UL 248-15, CSA, CE
- Non-indicating design
- Small footprint for compact installations
- VFD line protection capable
Specifications
- Part Number: JJS-125
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Diameter : 0.88
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628129
- GTIN : 00051712628129
- Country of Origin : Mexico
- Dimensions : 3.25 in x 0.88 in x 3.25 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
