Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-100

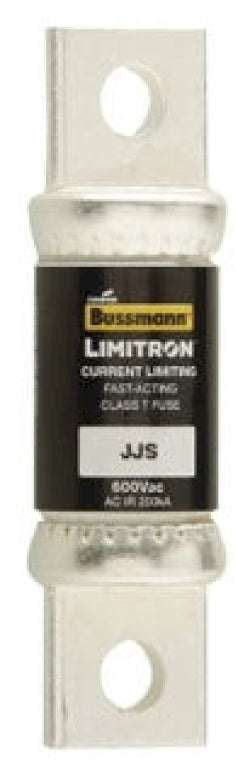

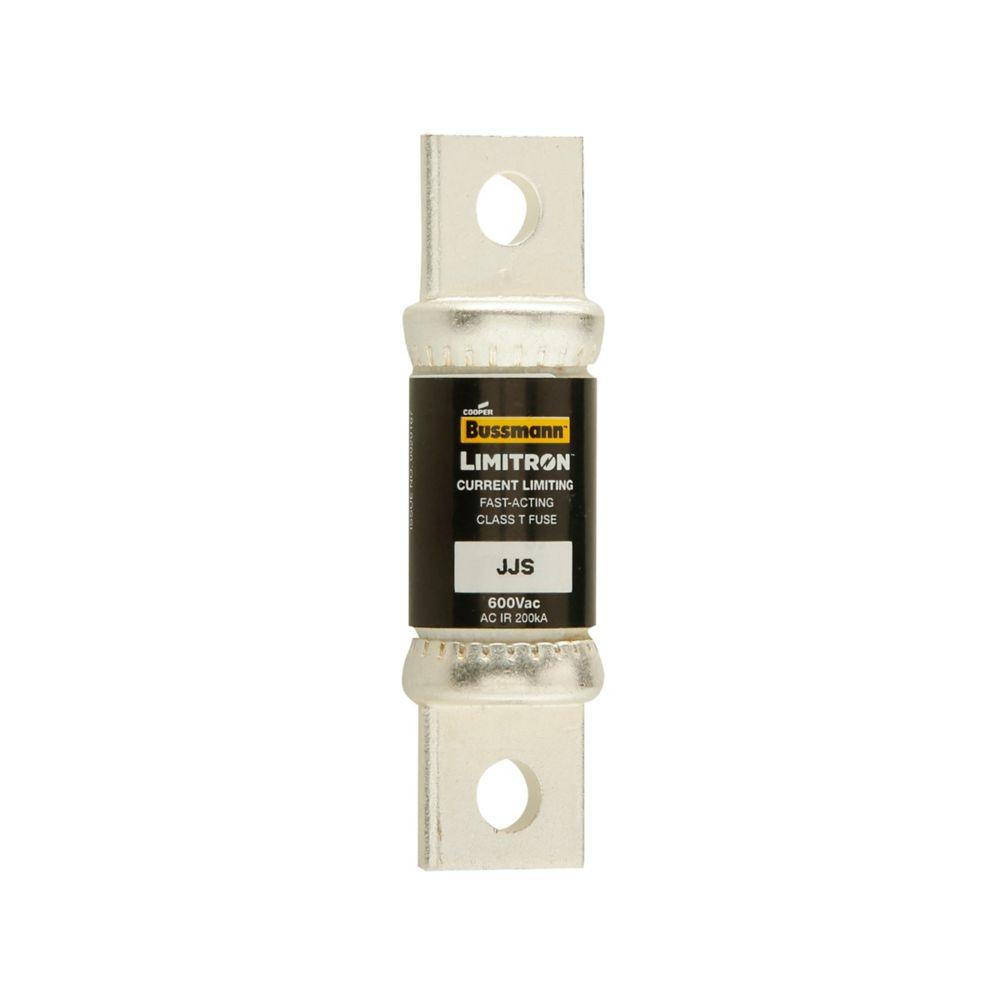

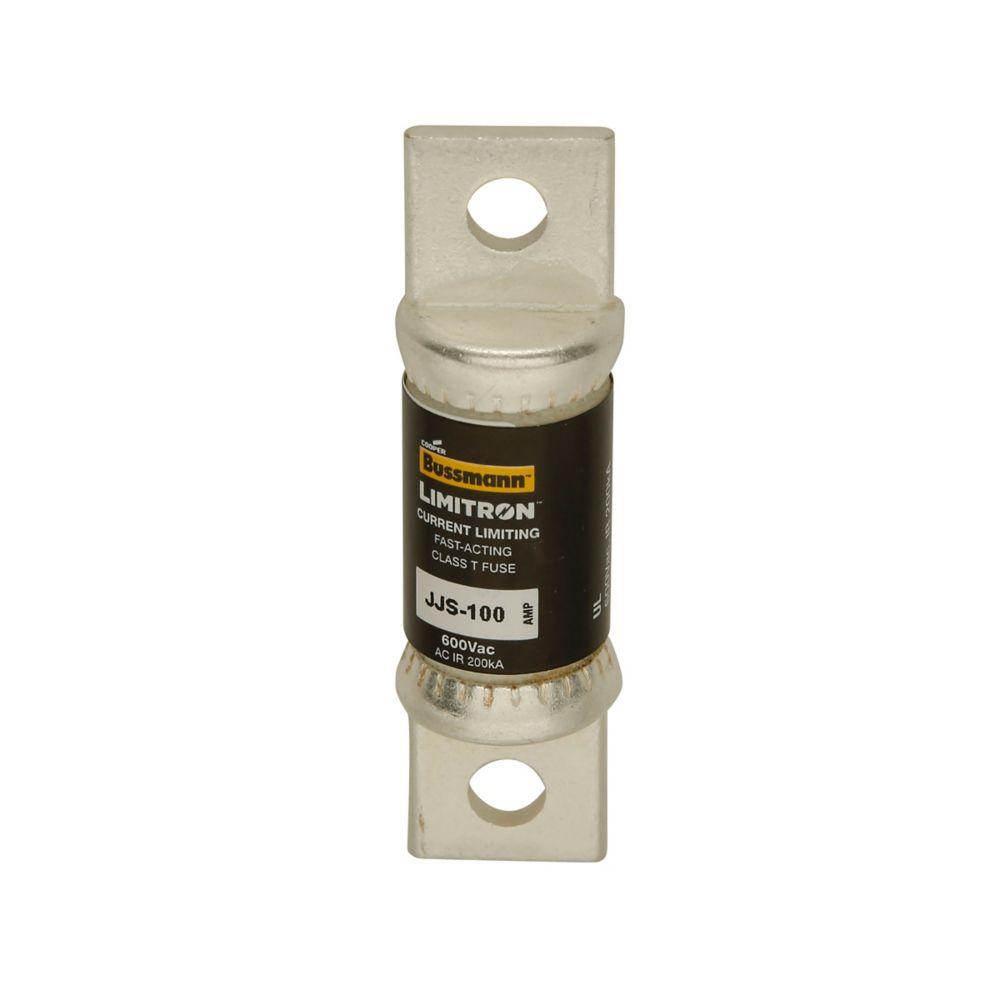

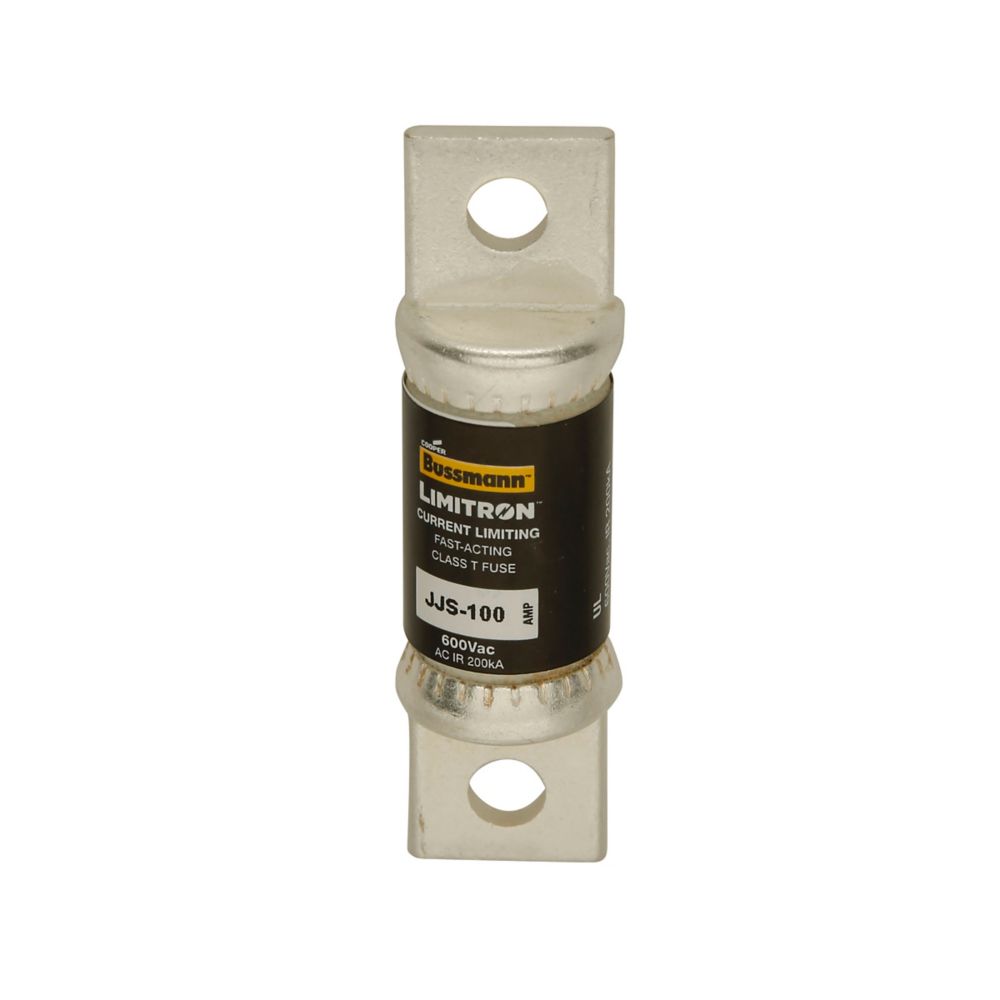

JJS-100 is a current-limiting, fast-acting Class T fuse from Eaton Bussmann, designed for reliable protection in demanding electrical applications.
This non-indicating fuse features a compact, small footprint design with bolted blade connections, making it ideal for variable frequency drive (VFD) line protection. It delivers high interrupting capacity and rapid response to overloads, safeguarding sensitive equipment.
-
Key Specifications
- Amperage: 100 A
- Voltage: 600 V AC
- Poles: Not applicable (fuse, single pole)
- Mounting Type: Bolted blade end x bolted blade end
- Interrupt Rating: 200 kAIC at 600 V
- Series/Frame: JJS
- Trip Unit: Not applicable (non-adjustable, fast-acting fuse)
- Certifications: UL Component Recognized, CE Marked, RoHS Compliant
- Type: Class T, current-limiting, very fast acting
- Indicator: Non-indicating
- Application: VFD line protection, control or solenoid circuits
- Packaging: Standard
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJS-100
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 100
- AIC rating : 200kA@600V
- Diameter : 0.75
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628020
- GTIN : 00051712628020
- Country of Origin : Mexico
- Dimensions : 2.95 in x 0.75 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.0088
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
