Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJS-1

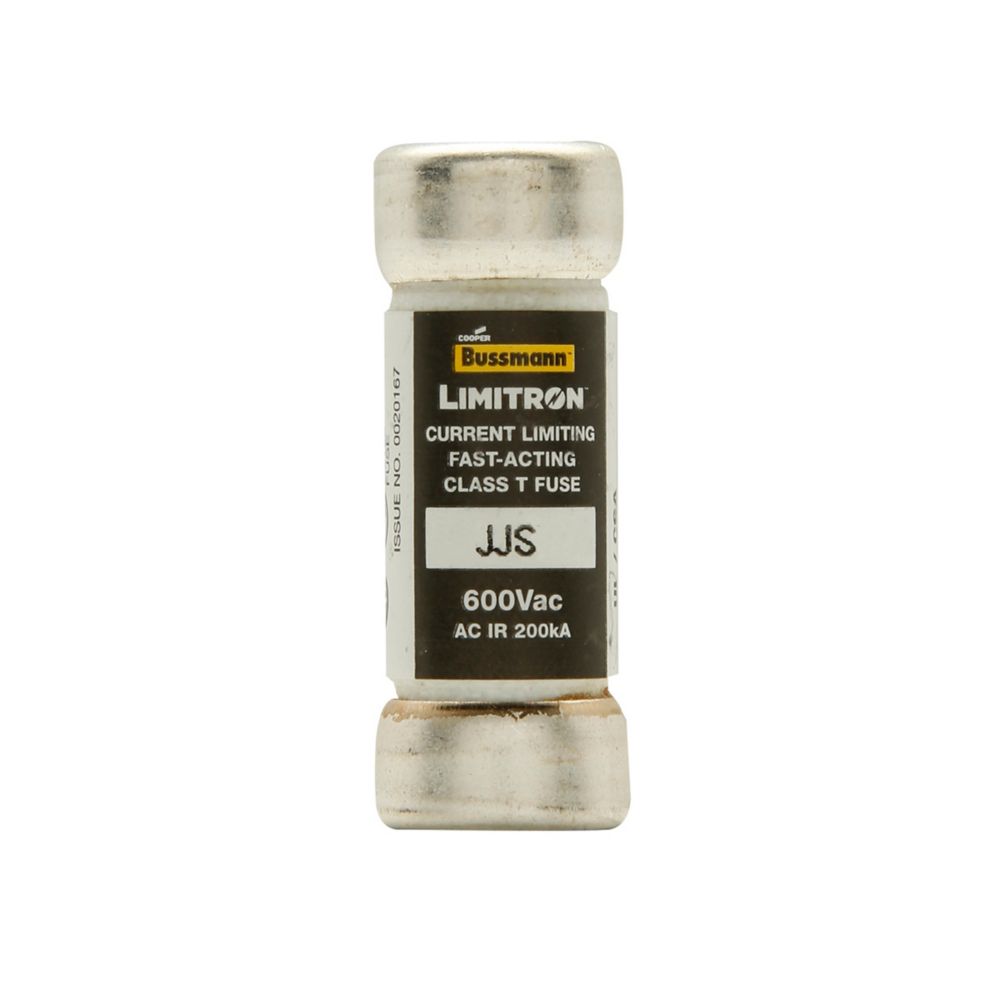

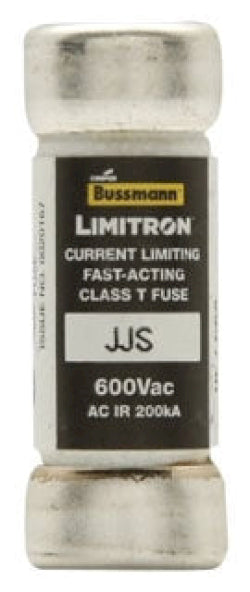

JJS-1 is an Eaton Bussmann Class T fast-acting current-limiting fuse designed for electronic and VFD line protection.
This 1 amp, 600 Vac fuse features a small footprint and ferrule end termination, suitable for cartridge fuse holders. It offers a high interrupt rating of 200,000 amps symmetrical RMS, ensuring reliable protection in demanding applications. The JJS series is UL Component Recognized and provides very fast-acting characteristics for sensitive electronic circuits.
- Key Specifications
- Amperage: 1 Amp
- Voltage Rating: 600 Vac
- Fuse Type: Fast-Acting, Class T
- Interrupt Rating: 200,000 A RMS Symmetrical
- Mounting Type: Cartridge Fuse Holder
- Termination Style: Ferrule End
- Body Style: Cartridge
- Series: JJS Limitron
- Certifications: UL Component Recognized (Guide JFHR2, File E56412)
- Application: VFD line protection, electronic circuits
- Part Number: JJS-1
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : T
- Barrels : 1
- UPC : 051712628082
- GTIN : 00051712628082
- Country of Origin : Mexico
- Dimensions : 0.4 in x 0.56 in x 0.4 in (Length/Depth x Height x Width)
- Weight : 0.15
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
