Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJN-90

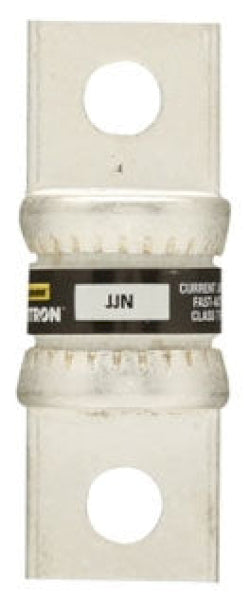

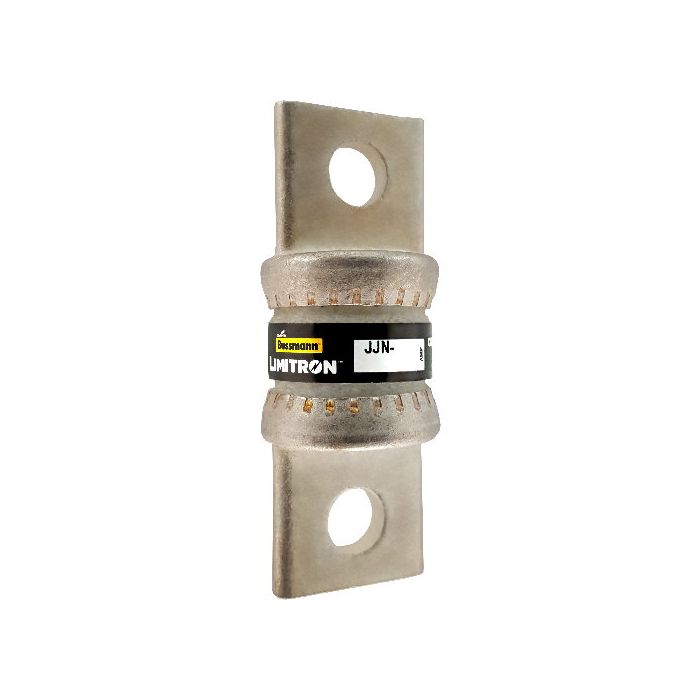

JJN-90 is a fast-acting, current-limiting Class T fuse from Eaton Bussmann, designed for reliable circuit protection in demanding applications.
This non-indicating, bolted blade fuse offers advanced current-limiting performance, making it ideal for VFD line protection and other high-fault environments. It features a melamine body, is non-rejection type, and is rated for 300V AC and 160V DC operation.
-
Key Specifications
- Amperage: 90A
- Voltage: 300V AC / 160V DC
- Poles: Single
- Mounting Type: Holder (bolted blade)
- Interrupt Rating: 200kA at 300V AC, 20kA at 160V DC
- Series/Frame: JJN (Class T)
- Trip Unit: Fast-acting, current-limiting
- Certifications: UL, CSA, CE
- Body Material: Melamine
- Non-indicating, non-rejection design
- Diameter: 0.75 inch
- Application: VFD line protection, general branch circuit protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJN-90
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJN
- Voltage : 300
- Amperage : 90
- AIC rating : 200kA@300V
- Diameter : 0.75
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712627900
- GTIN : 00051712627900
- Country of Origin : Mexico
- Dimensions : 2.16 in x 0.75 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.079
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
