Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJN-80

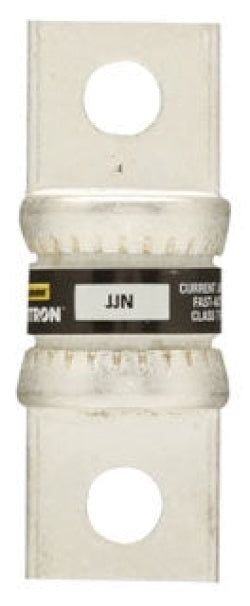

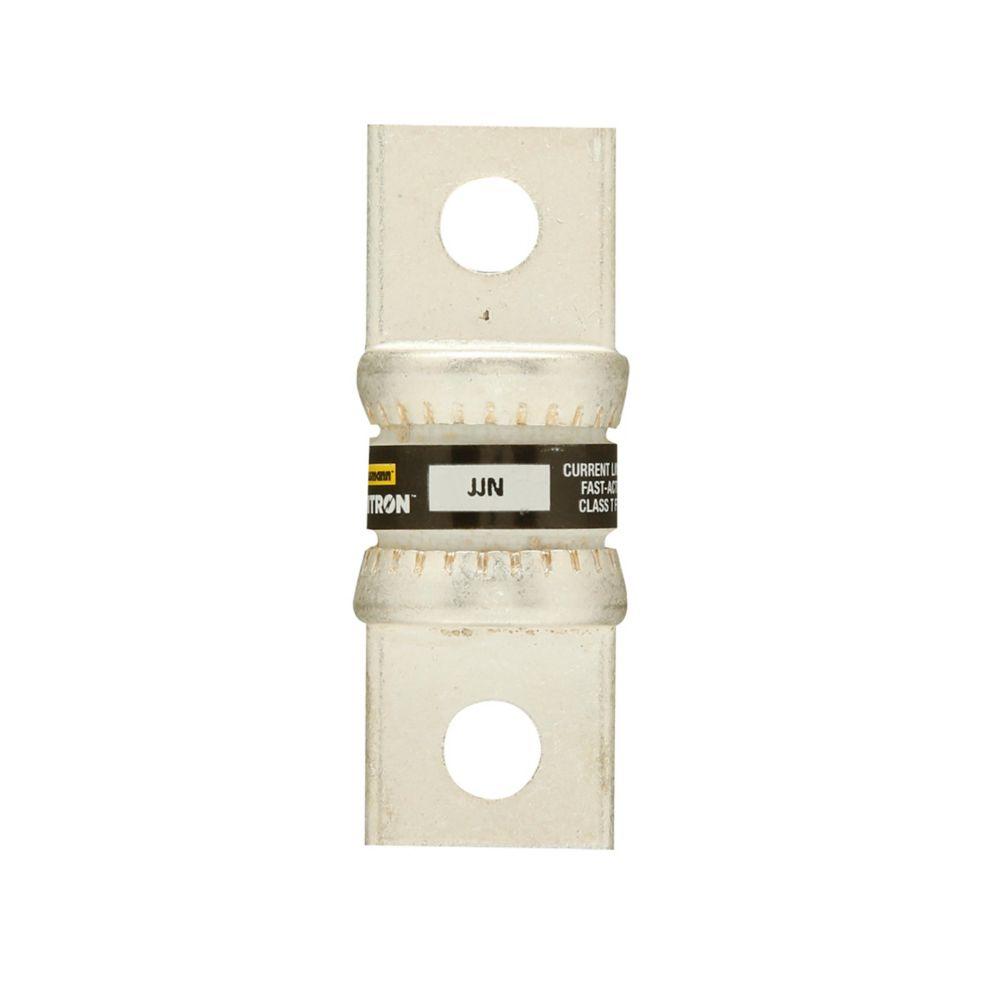

JJN-80 is an Eaton Bussmann Class T fast-acting fuse designed for advanced current-limiting protection in low voltage applications.
This 80 amp fuse features a voltage rating of 300 Vac and 160 Vdc, with a high interrupt rating of 200 kAIC at 300 Vac and 20 kAIC at 160 Vdc. It uses bolted blade end connections for secure mounting and is part of the Limitron series, providing very fast acting characteristics ideal for VFD line protection and electronic circuits.
- Key Specifications
- Amperage: 80 A
- Voltage Rating: 300 Vac, 160 Vdc
- Interrupt Rating: 200 kAIC at 300 Vac, 20 kAIC at 160 Vdc
- Fuse Type: Class T, Fast-Acting
- Mounting Type: Bolted Blade Ends
- Series: Limitron (JJN)
- Poles: Single Pole
- Non-Indicating
- Current Limiting
- Dimensions: 19 x 21 mm
- Certifications: Eaton Bussmann standards
- Part Number: JJN-80
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJN
- Voltage : 300
- Amperage : 80
- AIC rating : 200kA@300V
- Diameter : 0.75
- Class Rating : T
- Barrels : 1
- UPC : 051712627801
- GTIN : 00051712627801
- Country of Origin : Mexico
- Dimensions : 2.16 in x 0.75 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.78
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
