JJN-700 - Cooper Bussmann Eaton 700A 300VAC Class T Very Fast Acting Fuse, Bolted Blade Ends, 100kA Interrupt Rating

JJN-700

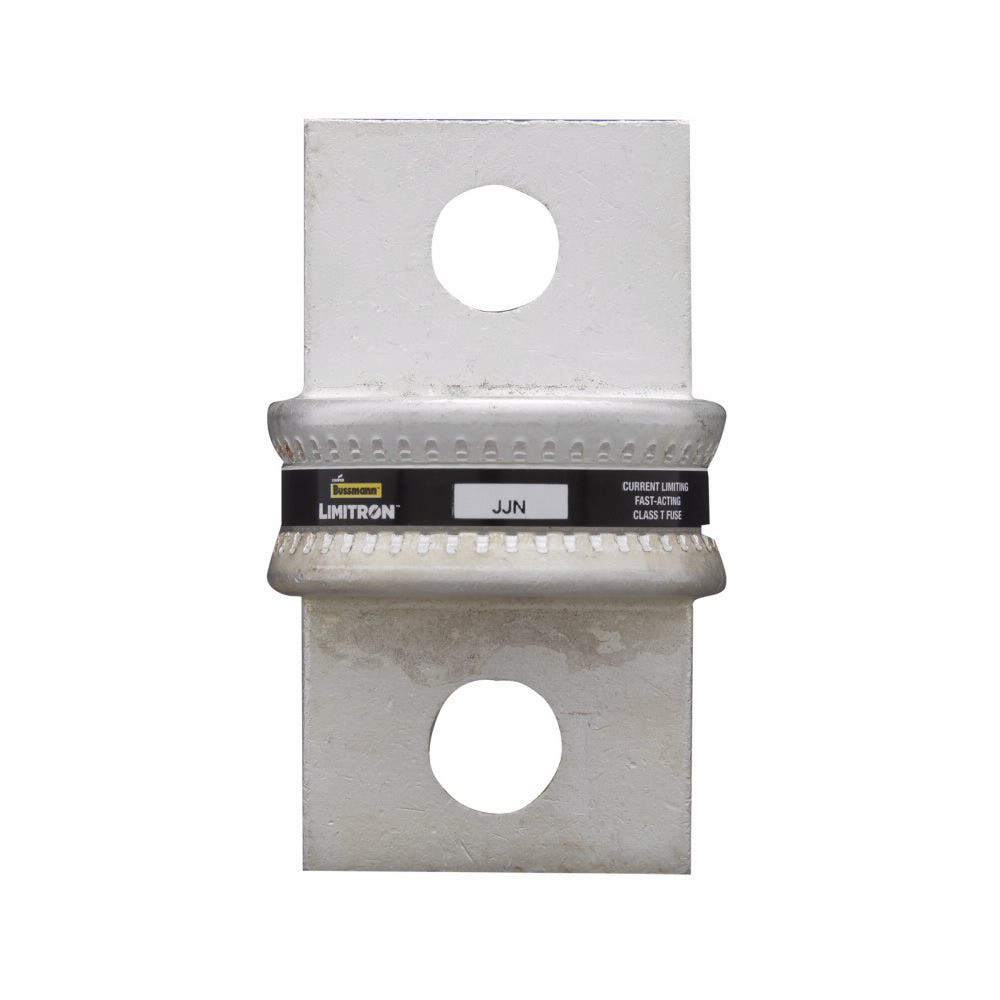

JJN-700 is a Cooper Bussmann Eaton Class T very fast acting fuse designed for advanced current-limiting protection in electrical circuits.This 700 amp, 300 VAC fuse features bolted blade end connections and provides high interrupting ratings of 100kA at 170 VDC and up to 200kA at 300 VAC. It is ideal for VFD line protection and other demanding applications requiring fast-acting, current-limiting fuses.

• Amperage: 700A
• Voltage Rating: 300 VAC
• Fuse Class: T (Limitron)
• Interrupt Rating: 100kA at 170 VDC, 200kA at 300 VAC
• Mounting Type: Bolted blade end x bolted blade end
• Poles: Single pole
• Fuse Type: Very fast acting, current limiting
• Non-indicating fuse
• Dimensions: Approx. 1.25" x 3.06"
• Series: Bussmann JJN
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJN-700
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 700
• AIC rating : 200kA@300V
• Diameter : 1.75
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712627245
• GTIN : 00051712627245
• Dimensions : 3.38 in x 1.75 in x 1.75 in (Length/Depth x Height x Width)
• Weight : 0.85
