Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

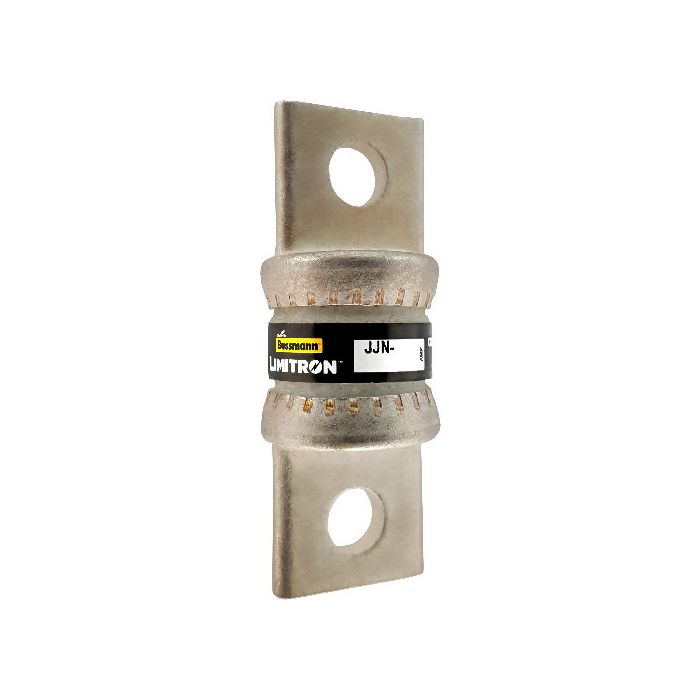

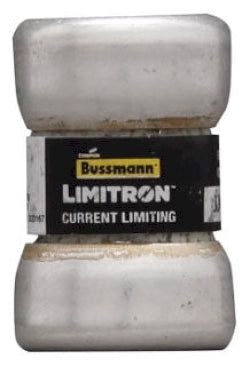

JJN-70
JJN-70 is a fast-acting, current-limiting Class T fuse from Eaton Bussmann, designed for advanced circuit protection and VFD line applications.
This non-indicating, bolt-on fuse offers a 70 Amp rating at 300VAC, with a 200kA interrupting rating for reliable protection against high fault currents. It is part of the JJN series, known for robust performance in demanding electrical environments.
-
Key Specifications
- Amperage: 70A
- Voltage: 300VAC, 160VDC
- Poles: 1
- Mounting Type: Bolt-on (bolted blade ends)
- Interrupt Rating: 200kA at 300VAC, 20kA at VDC
- Series/Frame: JJN
- Trip Unit: Fast-acting, current-limiting
- Certifications: UL listed
- Non-indicating
- Non-rejection
- VFD line protection
- Dimensions: 0.75" x 2.16"
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJN-70
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJN
- Voltage : 300
- Amperage : 70
- AIC rating : 200kA@300V
- Diameter : 0.75
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712627702
- GTIN : 00051712627702
- Country of Origin : Mexico
- Dimensions : 2.16 in x 0.75 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.078
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
