Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

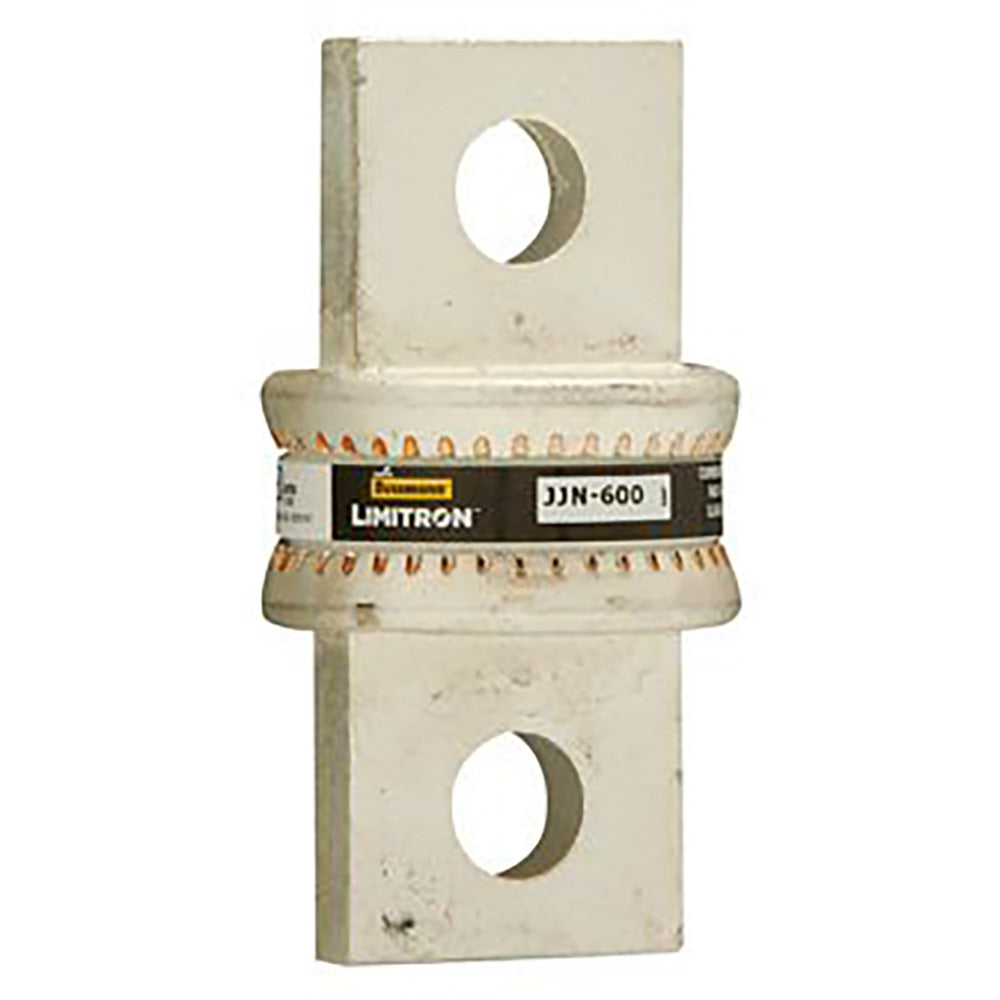

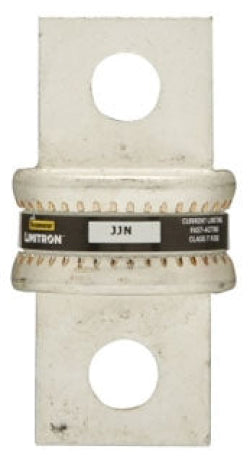

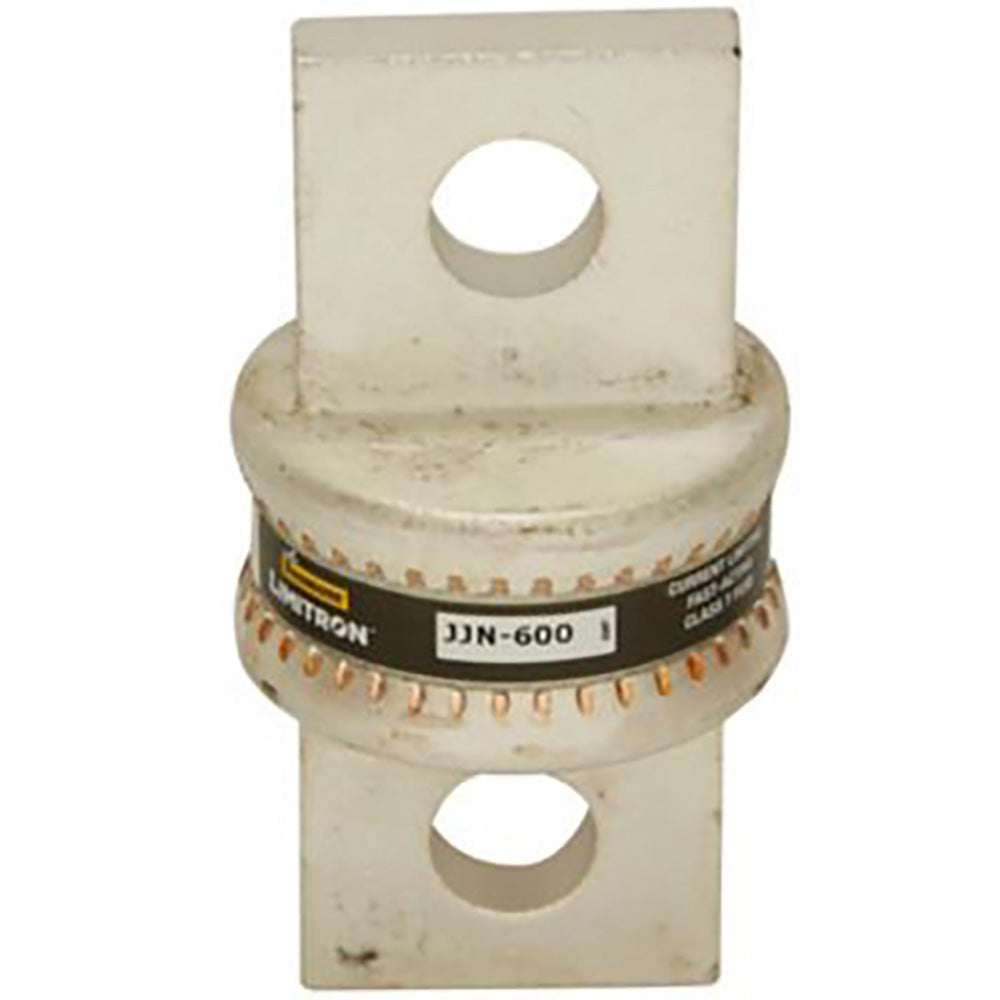

JJN-600
JJN-600 is a 600 ampere, 300 Vac Class T fast-acting current-limiting fuse from Eaton Bussmann designed for high-performance circuit protection.This fuse features a very fast-acting T-Tron characteristic with a high interrupt rating of 200 kA at 300 Vac and 20 kA at 160 Vdc. It is constructed with bolted blade ends for secure mounting and is suitable for protecting control or solenoid circuits. The JJN series is known for its advanced Limitron technology providing reliable, current-limiting protection in compact form.
- Key Specifications
- Amperage: 600 A
- Voltage Rating: 300 Vac, 160 Vdc
- Interrupt Rating: 200 kA at 300 Vac, 20 kA at 160 Vdc
- Fuse Class: T (Limitron)
- Fast-Acting (T-Tron characteristic)
- Mounting Type: Bolted blade ends
- Series: JJN
- Non-indicating fuse
- Application: Control and solenoid circuit protection
- Manufacturer: Eaton Bussmann
Specifications
- Part Number: JJN-600
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJN
- Voltage : 300
- Amperage : 600
- AIC rating : 200kA@300V
- Diameter : 1.25
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712627054
- GTIN : 00051712627054
- Country of Origin : Mexico
- Dimensions : 3.06 in x 1.25 in x 1.25 in (Length/Depth x Height x Width)
- Weight : 0.15
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
