Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

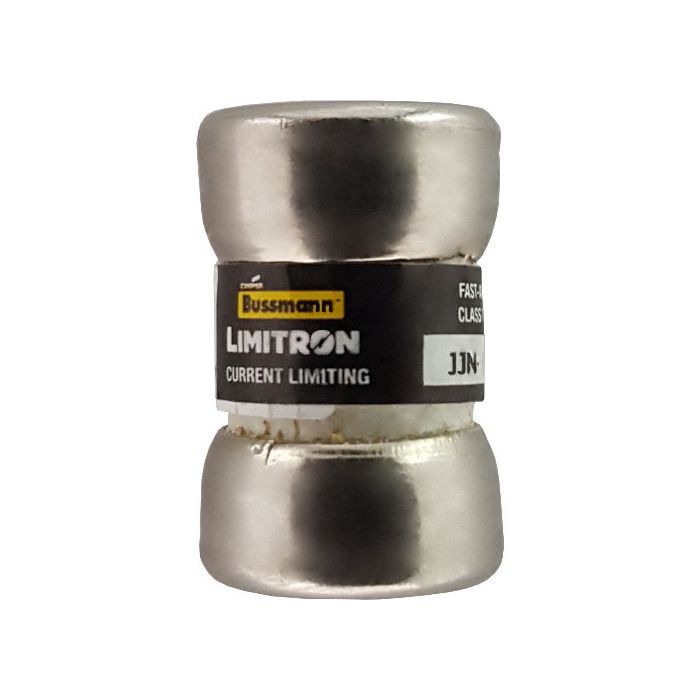

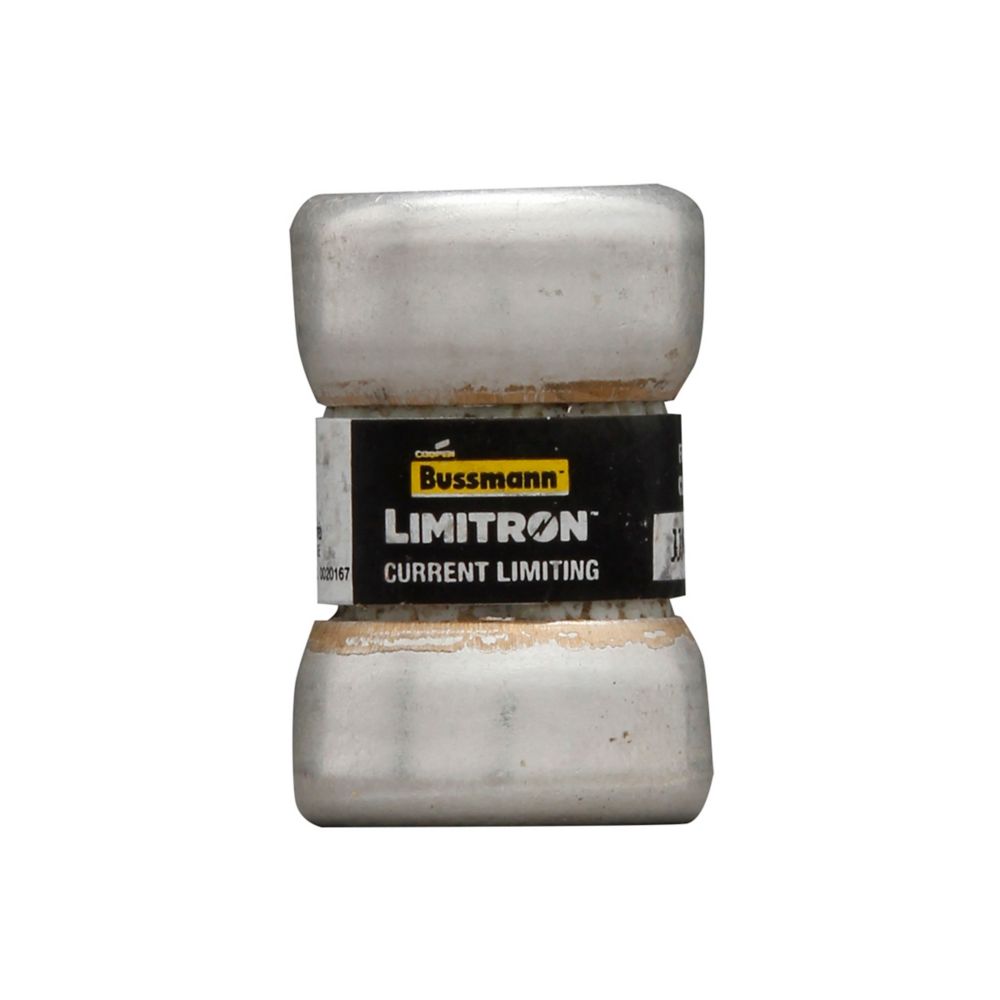

JJN-60
JJN-60 is a fast-acting, current-limiting Class T fuse from Eaton Bussmann, designed for reliable circuit protection in demanding applications.
This non-indicating, ferrule-end fuse is rated for 60 amps at 300VAC, with a very high interrupting rating of 200,000 amps. It is ideal for protecting control circuits, solenoids, and VFD lines, offering rapid response to overcurrent conditions. The JJN-60 is part of the Limitron series and is recognized for its compact size and robust construction.
-
Key Specifications
- Amperage: 60A
- Voltage: 300VAC, 160VDC
- Poles: 1
- Mounting Type: Ferrule (blade) terminals
- Interrupt Rating: 200,000A @ 300VAC, 20,000A @ 160VDC
- Series/Frame: JJN (Limitron)
- Trip Unit: Very fast-acting, current-limiting
- Certifications: UL Listed (Std. 248-15), CSA Certified (C22.2 No. 248.15)
- Physical Size: 0.56" x 0.88"
- Non-indicating
- Ideal for control, solenoid, and VFD protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJN-60
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJN
- Voltage : 300
- Amperage : 60
- AIC rating : 200kA@300V
- Diameter : 0.56
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712627016
- GTIN : 00051712627016
- Country of Origin : Mexico
- Dimensions : 0.88 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
