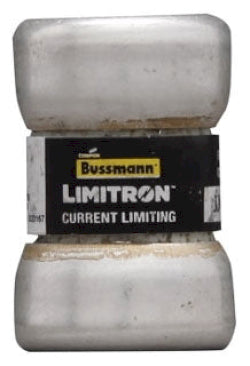

JJN-50 - Bussmann Eaton 50A 300V Class T Fast-Acting Fuse, 1 Pole, 200kA Interrupt Rating

JJN-50

JJN-50 is a Bussmann Eaton Class T fast-acting fuse rated for 50 amps and 300 volts AC.This JJN-50 fuse features a current-limiting design with a 200,000 A interrupting rating at 300 VAC. It is a single-pole, 1-barrel fuse with a compact size of 0.56" diameter, suitable for low voltage circuit protection. The fuse is UL Listed (Std. 248-15, Guide JDDZ, File E4273) and CSA Certified (C22.2 No. 248.15, Class 1422-02, File 53787), ensuring compliance with industry safety standards.

Key Specifications
• Amperage: 50A
• Voltage Rating: 300 VAC
• Poles: 1
• Mounting Type: Cartridge (1 Barrel)
• Interrupt Rating: 200,000 AIC RMS @ 300 VAC
• Fuse Type: Class T, Fast-Acting
• Physical Size: 0.56" diameter
• Series: JJN Limitron
• Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JJN-50
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 50
• AIC rating : 200kA@300V
• Diameter : 0.56
• Class Rating : T
• Barrels : 1



Product Data

• UPC : 051712627504
• GTIN : 00051712627504
• Country of Origin : Mexico
• Dimensions : 0.86 in x 0.57 in x 0.57 in (Length/Depth x Height x Width)
• Weight : 0.03
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
