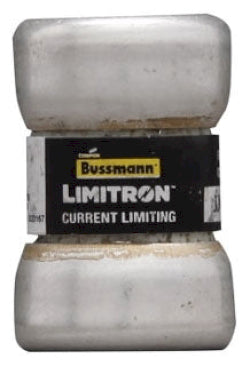

JJN-45 - Eaton Bussmann 45A 300V AC Class T Fast-Acting Fuse, Current Limiting, 1 Pole

JJN-45

JJN-45 is a 45 amp, 300 volt AC Class T fast-acting fuse from Eaton Bussmann designed for advanced circuit protection.This fuse features current-limiting technology with a very fast-acting response, suitable for protecting variable frequency drives and other sensitive equipment. It has a cylindrical body style with ferrule ends, a 1-pole configuration, and an interrupting rating of 200,000 AIC at 300 VAC. The JJN-45 is UL Listed to Standard 248-15 and CSA Certified, ensuring reliable performance and safety compliance.

• Amperage: 45 A
• Voltage Rating: 300 VAC, 160 VDC
• Fuse Class: Class T
• Poles: 1
• Mounting Type: Ferrule end x ferrule end
• Interrupting Rating: 200,000 AIC at 300 VAC
• Fast-Acting, Current Limiting
• Body Style: Cylindrical
• UL Listed (Std. 248-15, Guide JDDZ, File E4273)
• CSA Certified (C22.2 No. 248.15, Class 1422-02, File 53787)
• Physical Size: Approximately 0.56" x 0.88"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJN-45
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 45
• AIC rating : 200kA@300V
• Diameter : 0.56
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712627450
• GTIN : 00051712627450
• Country of Origin : Mexico
• Dimensions : 0.86 in x 0.57 in x 0.57 in (Length/Depth x Height x Width)
• Weight : 0.025
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
