JJN-350 - Eaton Bussmann 350A 300Vac Class T Fast-Acting Current-Limiting Fuse

JJN-350

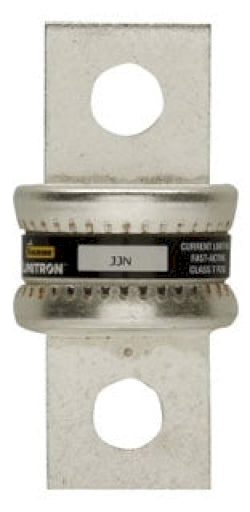

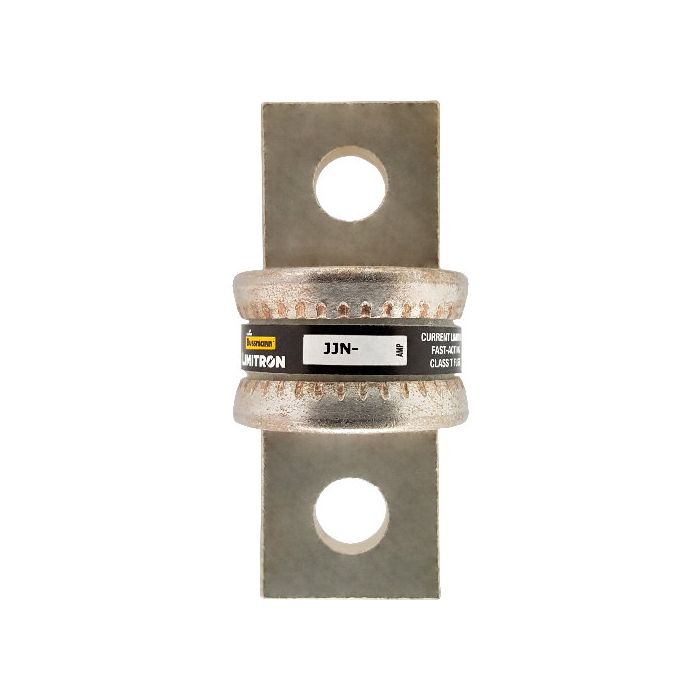

JJN-350 is a 350 ampere, 300 Vac Class T fast-acting current-limiting fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a bolted blade end connection on both ends, providing secure mounting and excellent electrical contact. It is non-indicating and suitable for VFD line protection and control circuit applications. The JJN-350 fuse has a high interrupting rating of 200 kA at 300 Vac and 20 kA at 160 Vdc, ensuring safe interruption of fault currents. It is CE marked and RoHS compliant, meeting industry safety and environmental standards.

• Amperage Rating: 350 A
• Voltage Rating: 300 Vac / 160 Vdc
• Class: Class T
• Fuse Type: Fast-Acting, Current-Limiting
• Connection: Bolted blade end x bolted blade end
• Interrupt Rating: 200 kA at 300 Vac, 20 kA at 160 Vdc
• Mounting Type: Blade end
• Non-indicating fuse
• Dimensions: 2.75 in length x 1 in width x 1 in height
• Certifications: CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJN-350
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 350
• AIC rating : 200kA@300V
• Diameter : 1
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712627139
• GTIN : 00051712627139
• Country of Origin : Mexico
• Dimensions : 2.75 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.25
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
