Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJN-35

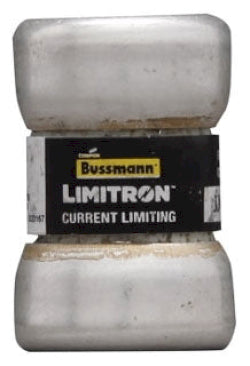

JJN-35 is a 35 amp, 300 VAC Class T fast-acting cartridge fuse from Eaton designed for high interrupting capacity applications.This Eaton Bussmann series JJN fuse features current-limiting, very fast-acting characteristics with a 200 kA interrupt rating at 300 VAC and 20 kA at 160 VDC. It is non-indicating and suitable for protecting large apartment complexes, multi-family meter stacks, and VFD line protection.
- Amperage: 35 A
- Voltage Rating: 300 VAC / 160 VDC
- Fuse Class: T
- Speed: Very Fast Acting
- Interrupt Rating: 200 kA AC / 20 kA DC
- Mounting Type: Cartridge
- Non-indicating fuse
- Current-limiting design
- Series: Bussmann JJN
- Applications: Multi-family meter stacks, VFD protection
Specifications
- Part Number: JJN-35
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJN
- Voltage : 300
- Amperage : 35
- AIC rating : 200kA@300V
- Diameter : 0.56
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712627351
- GTIN : 00051712627351
- Country of Origin : Mexico
- Dimensions : 0.88 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
