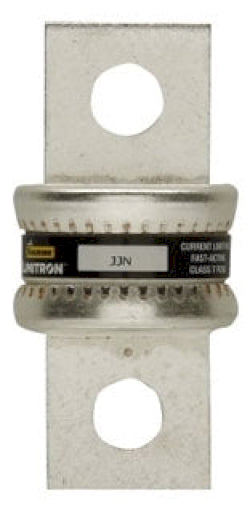

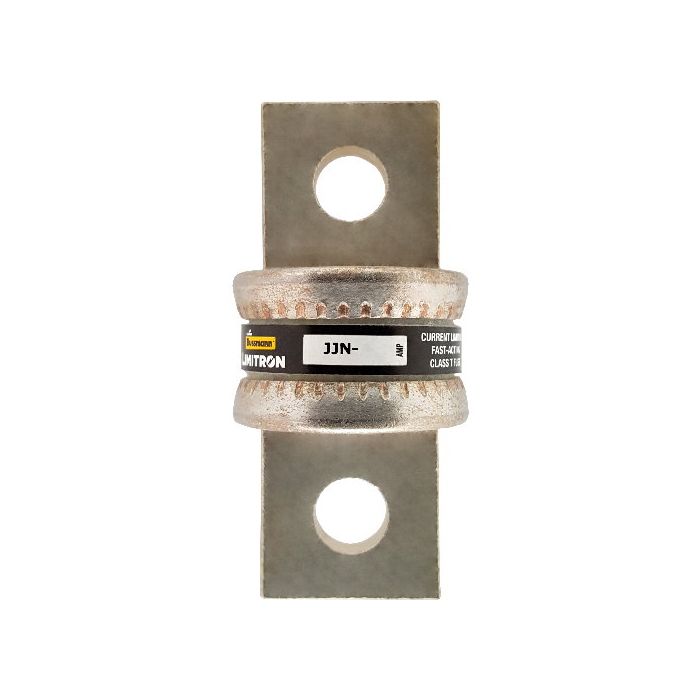

JJN-300 - Eaton Bussmann 300A 300V Class T Fast-Acting Fuse, Blade Terminal, 200kA Interrupt Rating

JJN-300

JJN-300 is a 300 amp, 300 volt Class T fast-acting fuse from Eaton Bussmann designed for high-performance circuit protection.This JJN-300 fuse features a current-limiting design with very fast acting characteristics, suitable for protecting control circuits and semiconductor devices. It has a blade terminal type for easy mounting and a high interrupting rating of 200,000 amperes at 300 VAC, ensuring reliable short-circuit protection. The fuse complies with UL 248-15 and CSA certifications and measures approximately 1 inch by 2.75 inches.

• Amperage Rating: 300A
• Voltage Rating: 300 VAC / 160 VDC
• Fuse Type: Class T, Limitron Series
• Interrupting Rating: 200,000 AIC at 300 VAC, 20,000 AIC at 160 VDC
• Characteristics: Very Fast Acting, Current Limiting
• Terminal Type: Blade
• Dimensions: 1" x 2.75"
• Certifications: UL Listed (Std. 248-15), CSA Certified
• Manufacturer: Eaton Bussmann

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJN-300
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 300
• AIC rating : 200kA@300V
• Diameter : 1
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712627306
• GTIN : 00051712627306
• Country of Origin : Mexico
• Dimensions : 2.75 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.25
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
