JJN-30 - Eaton Bussmann 30 Amp 300 Vac Class T Fast-Acting Fuse, Ferrule Terminal, 200kA Interrupt Rating

JJN-30

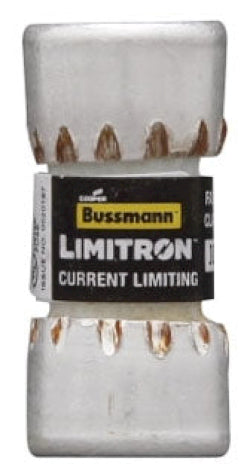

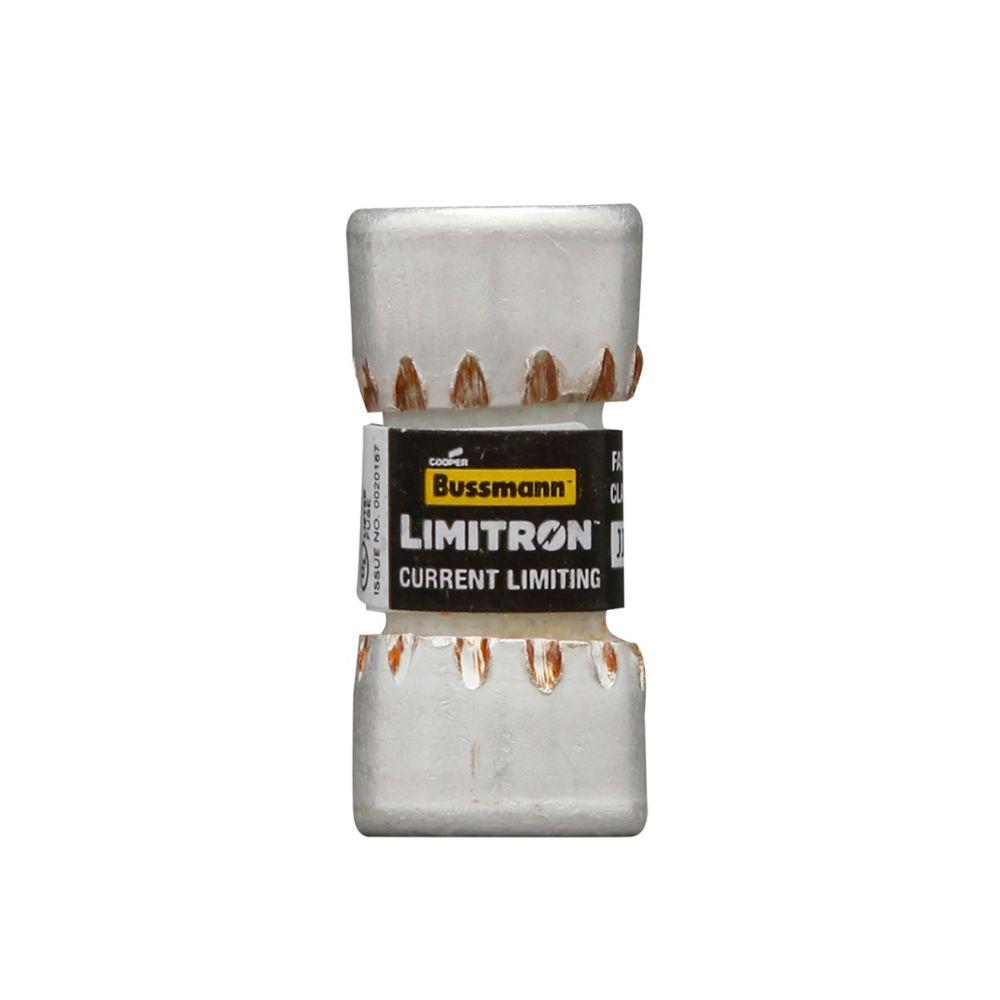

JJN-30 is a 30 Amp, 300 Vac Class T fast-acting fuse from Eaton Bussmann designed for advanced circuit protection.This current-limiting fuse features very fast acting characteristics suitable for VFD line protection and multi-family meter stacks. It has a ferrule terminal mounting type, a 200,000 Amp interrupt rating at 300 Vac, and is UL 248-15, CSA, and CE certified. The fuse measures 0.88 inches in length and 0.41 inches in diameter.

Key Specifications
• Amperage: 30 Amp
• Voltage Rating: 300 Vac / 160 Vdc
• Class: T (Limitron)
• Fuse Type: Fast-Acting, Current Limiting
• Mounting Type: Ferrule Terminal
• Interrupt Rating: 200,000 A Symmetrical (AC), 20,000 A (DC)
• Dimensions: 0.88 in length x 0.41 in diameter
• Certifications: UL 248-15, CSA, CE
• Non-indicating
• Series: JJN

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJN-30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 30
• AIC rating : 200kA@300V
• Diameter : 0.41
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712627009
• GTIN : 00051712627009
• Country of Origin : Mexico
• Dimensions : 0.42 in x 0.87 in x 0.42 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
