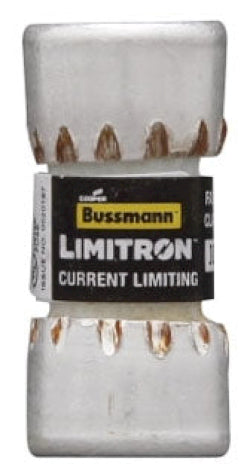

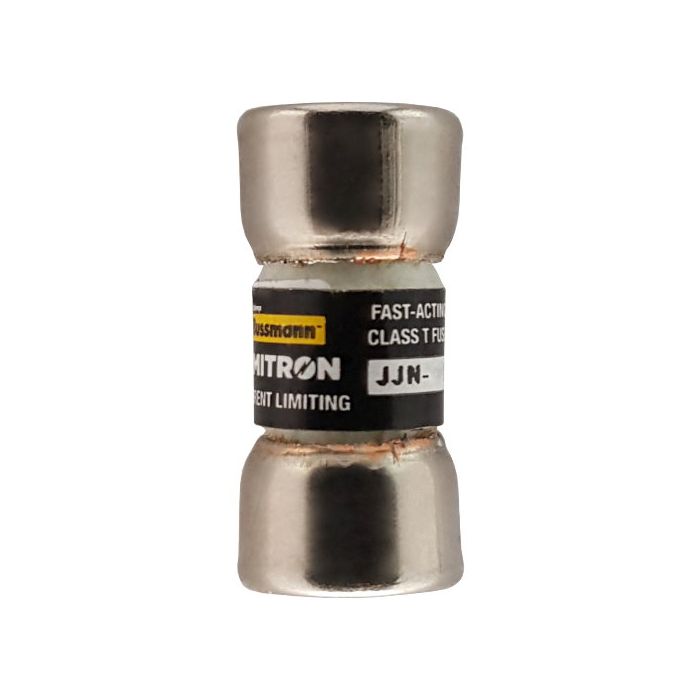

JJN-3 - Cooper Bussmann Eaton 3A 300V Class T Fast Acting Fuse, 1 Pole, Holder Mount, 200kA Interrupt

JJN-3

JJN-3 is a Cooper Bussmann Eaton Class T fast acting fuse rated for 3 amps and 300 volts AC. It features a current-limiting design for enhanced circuit protection.JJN-3 fuse is a non-indicating, very fast acting, current limiting fuse from the Limitron series. It has a cylindrical melamine body, ferrule end terminals, and is designed for holder mounting. The fuse offers a high interrupting rating of 200,000 amps at 300 volts AC, suitable for applications such as large apartment complexes, multi-family meter stacks, and VFD line protection.

Key Specifications
• Amperage: 3 A
• Voltage Rating: 300 V AC
• Class: T (Fast Acting)
• Interrupting Rating: 200 kAIC
• Poles: 1
• Mounting Type: Holder Mount
• Body Type: Cylindrical Melamine
• Terminal Type: Ferrule End
• Series: JJN Limitron
• Indicating: Non-Indicating
• Current Limiting: Yes, Very Fast Acting
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJN-3
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 3
• AIC rating : 200kA@300V
• Diameter : 0.41
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712627078
• GTIN : 00051712627078
• Country of Origin : Mexico
• Dimensions : 0.88 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
