Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

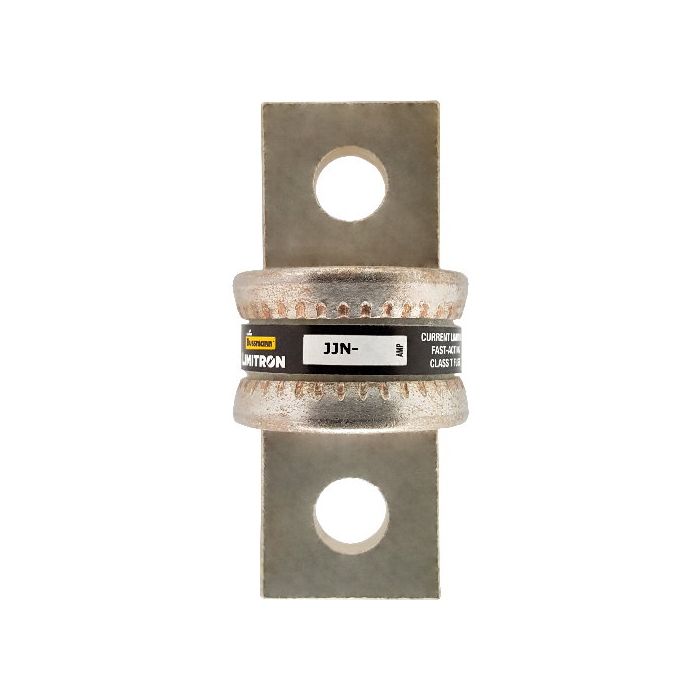

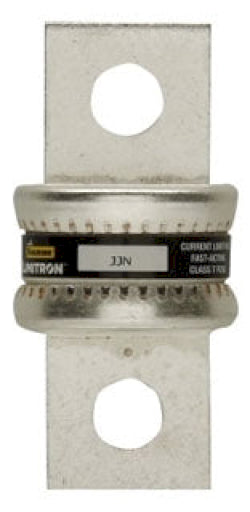

JJN-250
JJN-250 is a 250 amp, 300 Vac Class T fast-acting fuse from Eaton Bussmann designed for advanced circuit protection.This fuse features a current-limiting, fast-acting design with a 200kA interrupting rating at 300 Vac and 20kA at 160 Vdc. It is part of the Limitron series, providing reliable protection for branch circuits with a compact size and standard mounting. The fuse is UL and CSA certified, ensuring compliance with safety standards.
- Amperage: 250A
- Voltage Rating: 300 Vac, 160 Vdc
- Interrupt Rating: 200kA at 300 Vac, 20kA at 160 Vdc
- Fuse Type: Class T, fast-acting
- Series: Limitron
- Mounting Type: Standard fuse holder
- Current Limiting: Yes
- Certifications: UL, CSA
- Poles: Single pole
- Physical Size: Compact
Specifications
- Part Number: JJN-250
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJN
- Voltage : 300
- Amperage : 250
- AIC rating : 200kA@300V
- Diameter : 1
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712627092
- GTIN : 00051712627092
- Country of Origin : Mexico
- Dimensions : 2.75 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.25
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
