2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
JJN-20

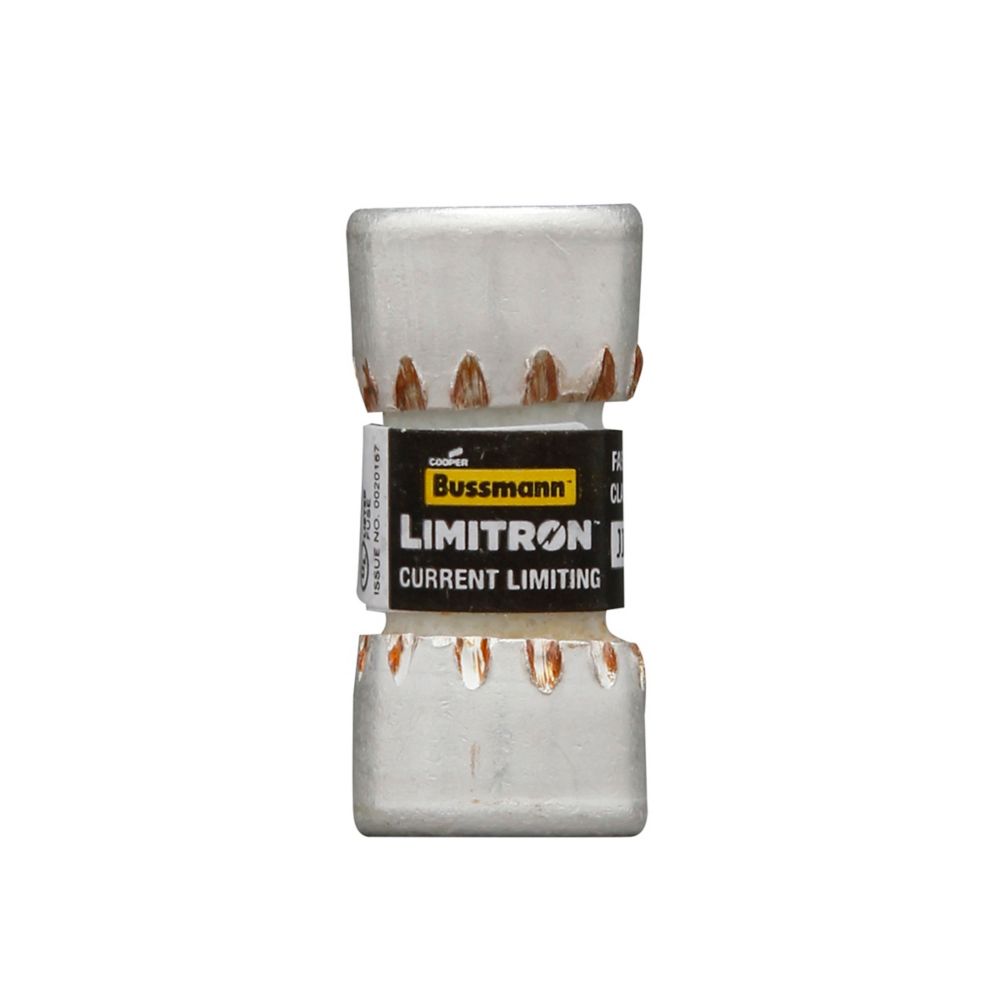

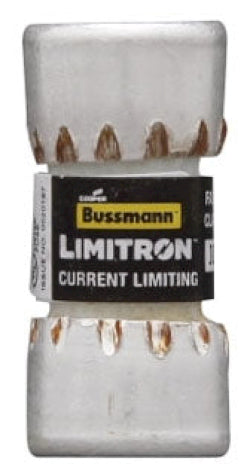

JJN-20 is a Cooper Bussmann (Eaton) Class T, very fast-acting, current-limiting fuse designed for advanced circuit protection.
This non-indicating, ferrule-end fuse offers superior current limitation and rapid response to overloads, making it ideal for demanding applications such as VFD line protection. It is UL Listed and CSA Certified for safety and compliance.
-
Key Specifications
- Amperage: 20A
- Voltage: 300V AC, 160V DC
- Poles: 1 (single pole)
- Mounting Type: Ferrule end x ferrule end
- Interrupt Rating: 200,000A (200kA) at 300V AC, 20kA at 160V DC
- Series/Frame: JJN (Limitron)
- Trip Unit: Not applicable (fuse)
- Certifications: UL Listed (Std. 248-15, File E4273), CSA Certified (C22.2 No. 248.15, File 53787), CE Marked, RoHS Compliant
- Physical Size: 0.41" x 0.88"
- Type: Very fast-acting, current-limiting
- Application: Branch circuit and electronic equipment protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJN-20
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJN
- Voltage : 300
- Amperage : 20
- AIC rating : 200kA@300V
- Diameter : 0.41
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712627207
- GTIN : 00051712627207
- Country of Origin : Mexico
- Dimensions : 0.42 in x 0.87 in x 0.42 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
