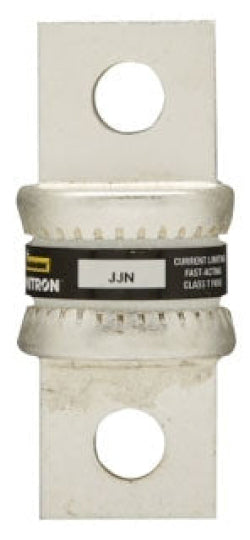

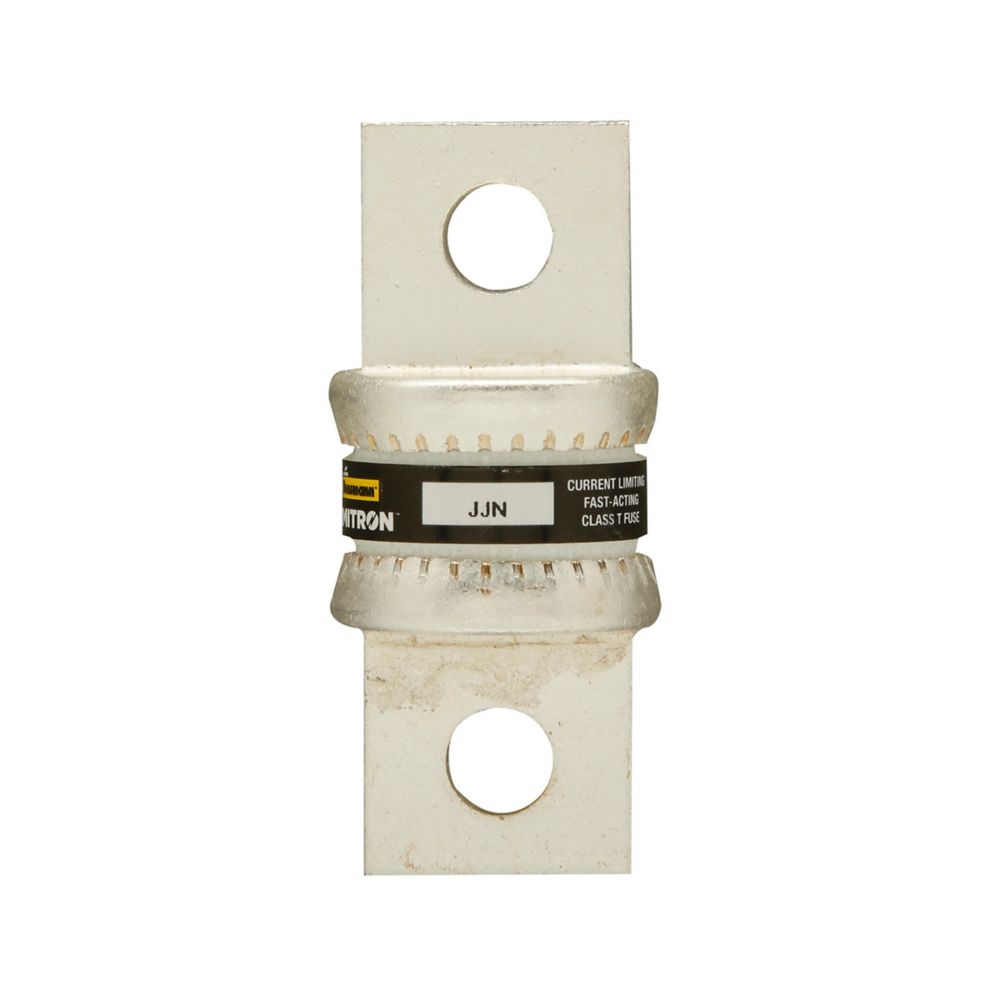

JJN-175 - Cooper Bussmann 175A 300V Class T Fast-Acting Fuse, Current Limiting, Bolt-On Mount

JJN-175

JJN-175 is a Cooper Bussmann Class T fast-acting fuse designed for advanced circuit protection.This 175 amp, 300 volt AC fuse features very fast-acting, current-limiting characteristics ideal for protecting control and solenoid circuits. It has a bolt-on mounting type and an interrupting rating of 200,000 AIC at 300VAC. The fuse is UL Listed (Std. 248-15, Guide JDDZ, File E4273) and CSA Certified (C22.2 No. 248.15, Class 1422-02, File 53787). Its physical dimensions are approximately 0.88 inches in diameter by 2.44 inches in length.

Key Specifications
• Amperage: 175A
• Voltage Rating: 300VAC, 160VDC max
• Fuse Class: Class T
• Fuse Type: Very Fast Acting, Current Limiting
• Interrupting Rating: 200,000 AIC @ 300VAC, 20kA @ 160VDC
• Mounting Type: Bolt-On
• Dimensions: 0.88" diameter x 2.44" length
• Standards: UL Listed, CSA Certified
• Series: JJN (Limitron)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJN-175
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 175
• AIC rating : 200kA@300V
• Diameter : 0.88
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712627177
• GTIN : 00051712627177
• Country of Origin : Mexico
• Dimensions : 2.44 in x 0.88 in x 0.88 in (Length/Depth x Height x Width)
• Weight : 0.0088
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
