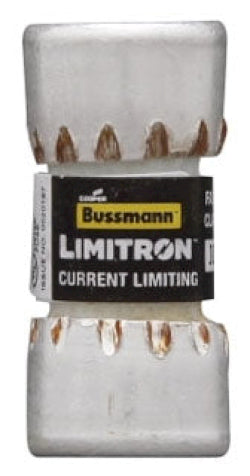

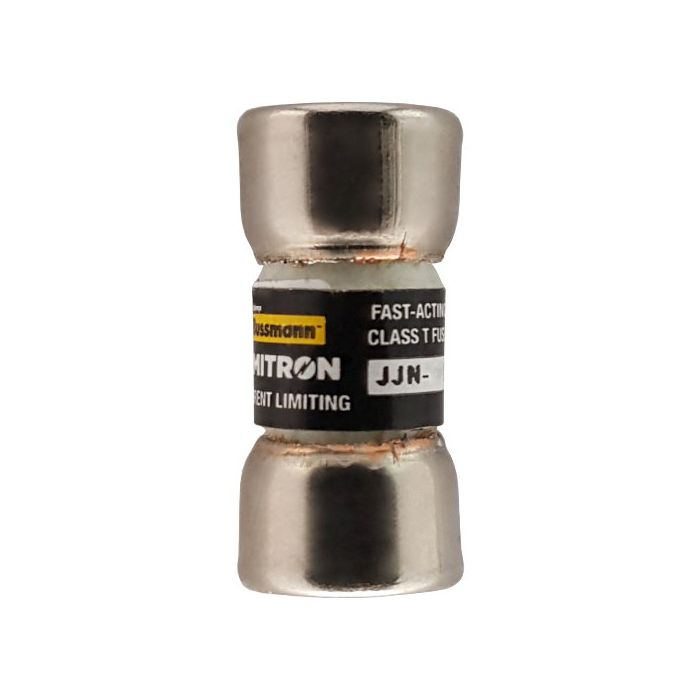

JJN-15 - Eaton Bussmann 15A 300V AC Class T Fast-Acting Fuse, 1 Pole, 200kA Interrupt Rating

JJN-15

JJN-15 is a 15 Amp, 300 Volt AC, Class T fast-acting fuse from Eaton Bussmann designed for advanced circuit protection.This fuse features current-limiting technology with a very fast-acting characteristic, suitable for protecting variable frequency drives (VFD) and other sensitive equipment. It has a 1-pole design with ferrule end connections and an interrupting rating of 200,000 AIC at 300 VAC. The JJN-15 is UL listed to standard 248-15 and CSA certified, ensuring compliance with rigorous safety standards.

Key Specifications
• Amperage: 15 Amps
• Voltage Rating: 300 Volts AC
• Fuse Class: Class T (Limitron)
• Interrupting Rating: 200,000 AIC RMS @ 300 VAC
• Poles: 1 Pole
• Mounting Type: Ferrule end x ferrule end
• Fuse Characteristic: Very Fast Acting, Current Limiting
• Certifications: UL Listed (Std. 248-15), CSA Certified (C22.2 No. 248.15)
• Physical Size: 0.41" diameter x 0.88" length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JJN-15
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 15
• AIC rating : 200kA@300V
• Diameter : 0.41
• Class Rating : T
• Barrels : 1



Product Data

• UPC : 051712627153
• GTIN : 00051712627153
• Country of Origin : Mexico
• Dimensions : 0.42 in x 0.87 in x 0.42 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
