JJN-1200 - Eaton Bussmann 1200A 300V AC Class T Fast-Acting Fuse

JJN-1200

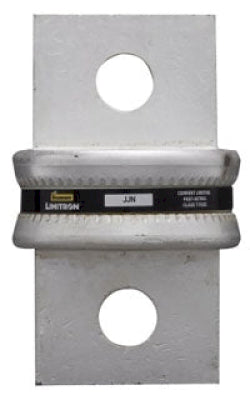

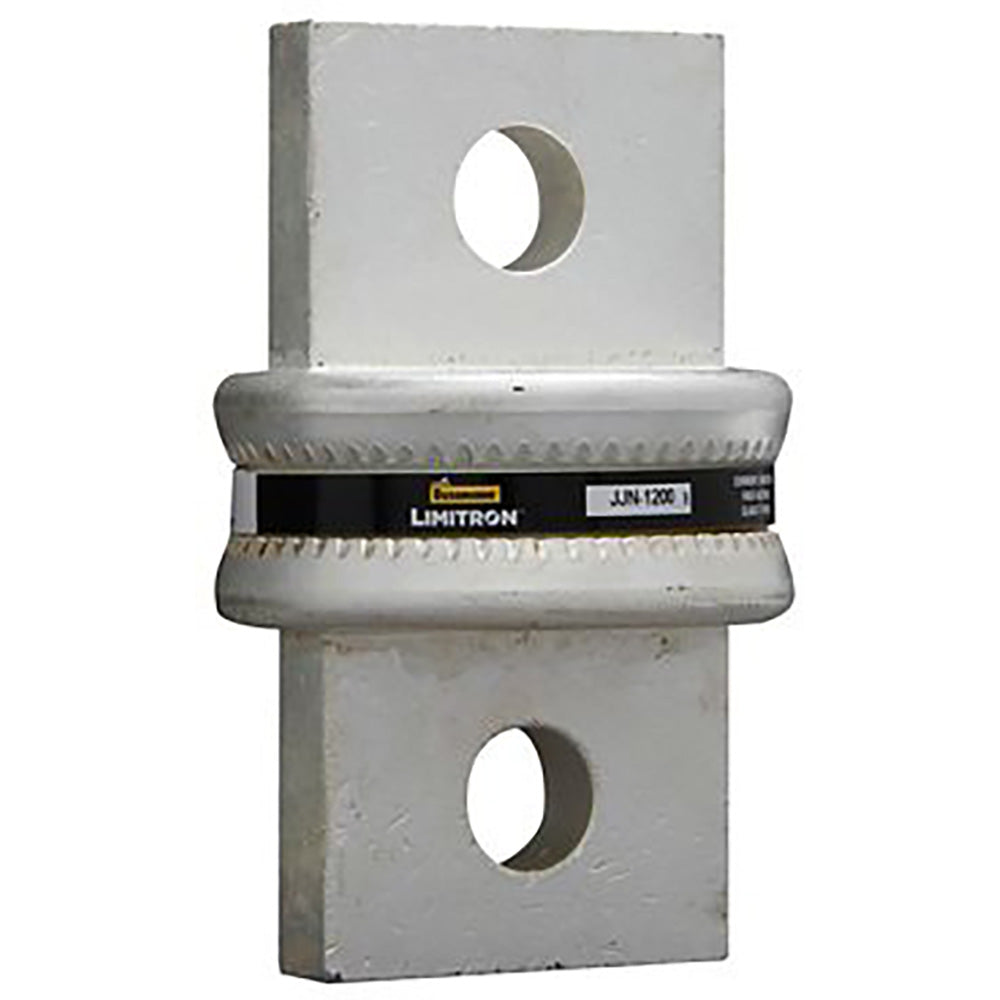

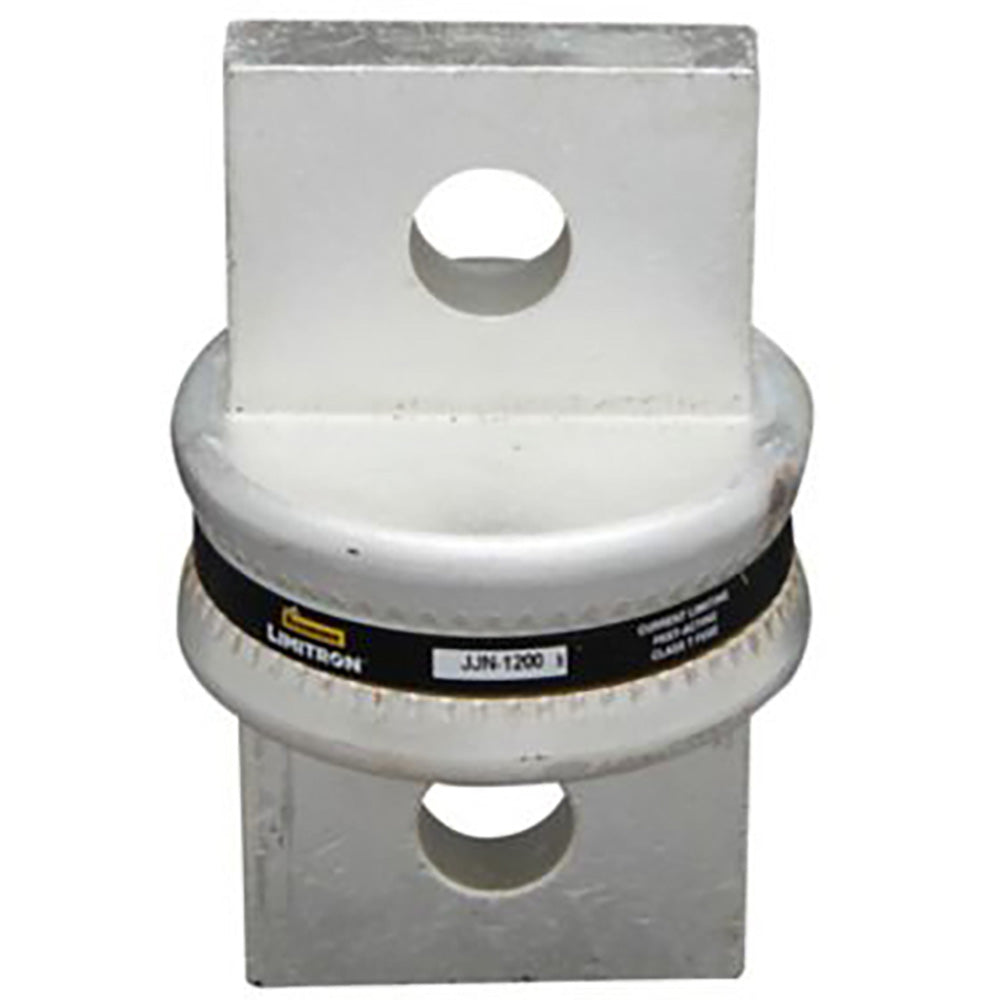

JJN-1200 is a 1200 amp, 300 volt AC Class T fast-acting fuse from Eaton's Bussmann series designed for advanced circuit protection.This current-limiting, very fast-acting fuse features a bolted blade end x bolted mounting type and is UL listed and CSA certified. It offers a high interrupting rating of 200,000 AIC at 300 VAC, suitable for protecting variable frequency drives and other sensitive equipment. The fuse measures approximately 2 inches by 4 inches and complies with UL Standard 248-15.

Key Specifications
• Amperage: 1200 A
• Voltage Rating: 300 VAC
• Fuse Class: Class T
• Interrupting Rating: 200,000 AIC RMS @ 300 VAC
• Mounting Type: Bolted blade end x bolted
• Fuse Type: Current-limiting, very fast acting
• Dimensions: Approx. 2" x 4"
• Certifications: UL Listed (Std. 248-15), CSA Certified
• Series: Bussmann Limitron JJN

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJN-1200
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 1200
• AIC rating : 200kA@300V
• Diameter : 2
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712627238
• GTIN : 00051712627238
• Country of Origin : Mexico
• Dimensions : 4 in x 2 in x 2 in (Length/Depth x Height x Width)
• Weight : 1.45
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
