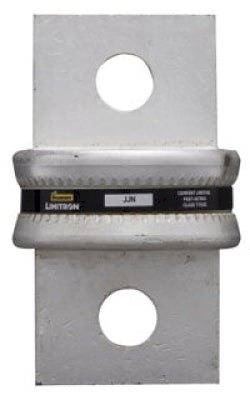

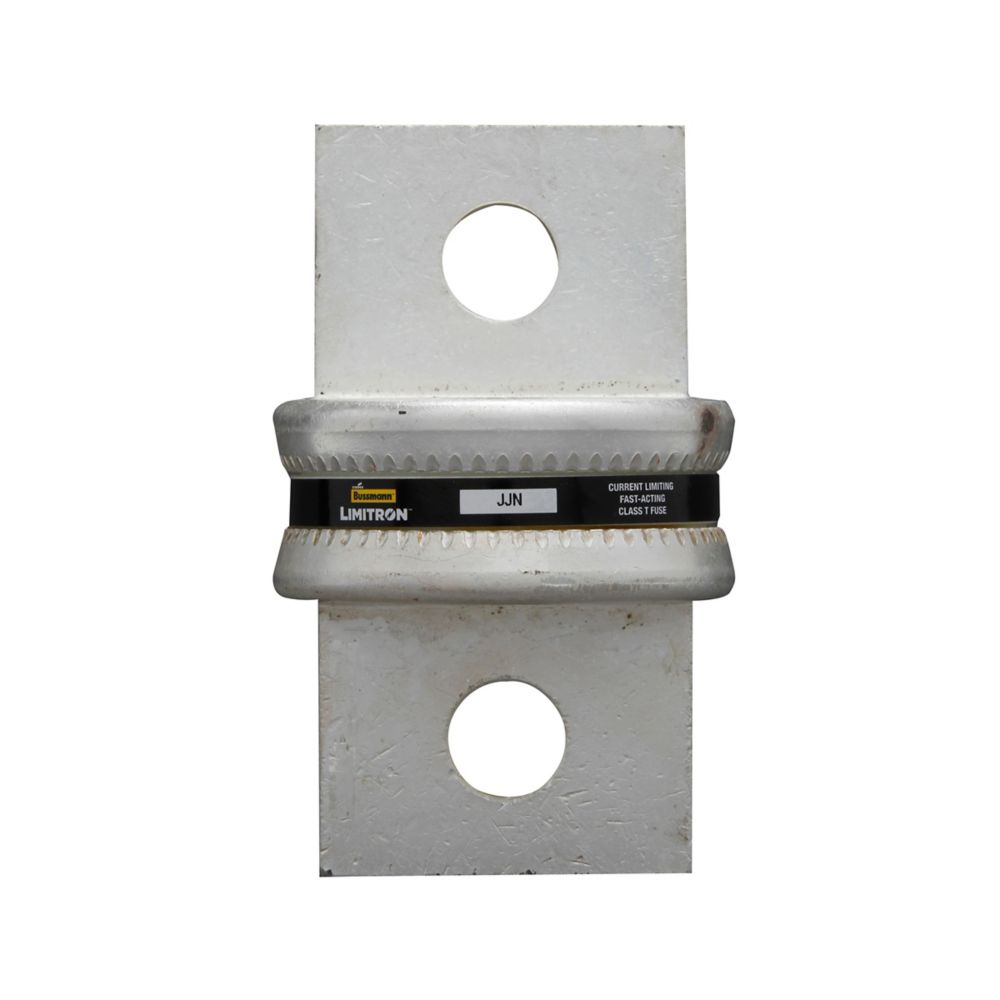

JJN-1000 - Eaton Bussmann 1000A 300V Class T Fast-Acting Fuse, Current-Limiting, 200kA Interrupt Rating

JJN-1000

This fuse features a very fast-acting characteristic ideal for protecting variable frequency drives and other sensitive electronic equipment. It has a high interrupting rating of 200,000 AIC at 300 VAC and 100,000 AIC at 170 VDC, ensuring reliable fault clearing. The fuse is non-indicating with bolted blade end mounting and complies with UL 248-15 and CSA C22.2 No. 248.15 standards.

Key Specifications
• Amperage: 1000 A
• Voltage Rating: 300 VAC, 170 VDC
• Fuse Type: Class T, JJN series
• Interrupting Rating: 200,000 AIC @ 300 VAC, 100,000 AIC @ 170 VDC
• Fast-Acting, Current-Limiting
• Mounting: Bolted blade end
• Physical Size: Approximately 2" x 4"
• Certifications: UL Listed (Std. 248-15), CSA Certified
• Non-Indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: JJN-1000
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 1000
• AIC rating : 200kA@300V
• Diameter : 2
• Class Rating : T
• Barrels : 1



Product Data

• UPC : 051712627191
• GTIN : 00051712627191
• Dimensions : 4 in x 2 in x 2 in (Length/Depth x Height x Width)
• Weight : 1.45 lb
