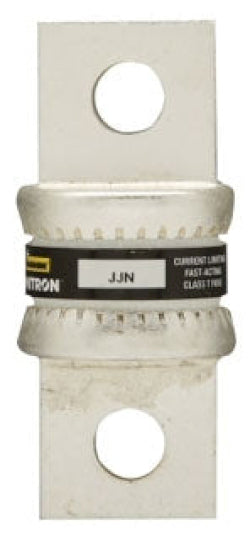

JJN-100 - Eaton Bussmann 100A 300VAC Class T Fast-Acting Fuse, Bolted Blade End, 200kA Interrupt Rating

JJN-100

JJN-100 is a 100 amp, 300 VAC Class T fast-acting fuse from Eaton Bussmann designed for high-performance circuit protection.This fuse features a bolted blade end connection type, current-limiting and very fast-acting characteristics suitable for VFD line protection and other demanding applications. It has a 200kA interrupt rating at 300 VAC and 20kA at 160 VDC, with a melamine tube construction and silver fuse element. Certified to UL Std. 248-15, CSA, and CE standards, it ensures reliable and safe operation.

• Amperage: 100 A
• Voltage Rating: 300 VAC / 160 VDC
• Fuse Class: Class T
• Interrupt Rating: 200kA @ 300 VAC, 20kA @ 160 VDC
• Connection Type: Bolted Blade End x Bolted Blade End
• Construction: Melamine Tube with Silver Fuse Element
• Dimensions: 0.75" diameter x 2.16" length
• Fuse Type: Fast-Acting, Current Limiting
• Certifications: UL Listed, CSA Certified, CE Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJN-100
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : T-Tron
• Type : JJN
• Voltage : 300
• Amperage : 100
• AIC rating : 200kA@300V
• Diameter : 0.75
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 051712627023
• GTIN : 00051712627023
• Country of Origin : Mexico
• Dimensions : x 2-5/32 in x
• Weight : 1
• Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
