JJL36250M75 - Square D Powerpact J-Frame 250A 600V 3-Pole Molded Case Circuit Breaker

JJL36250M75

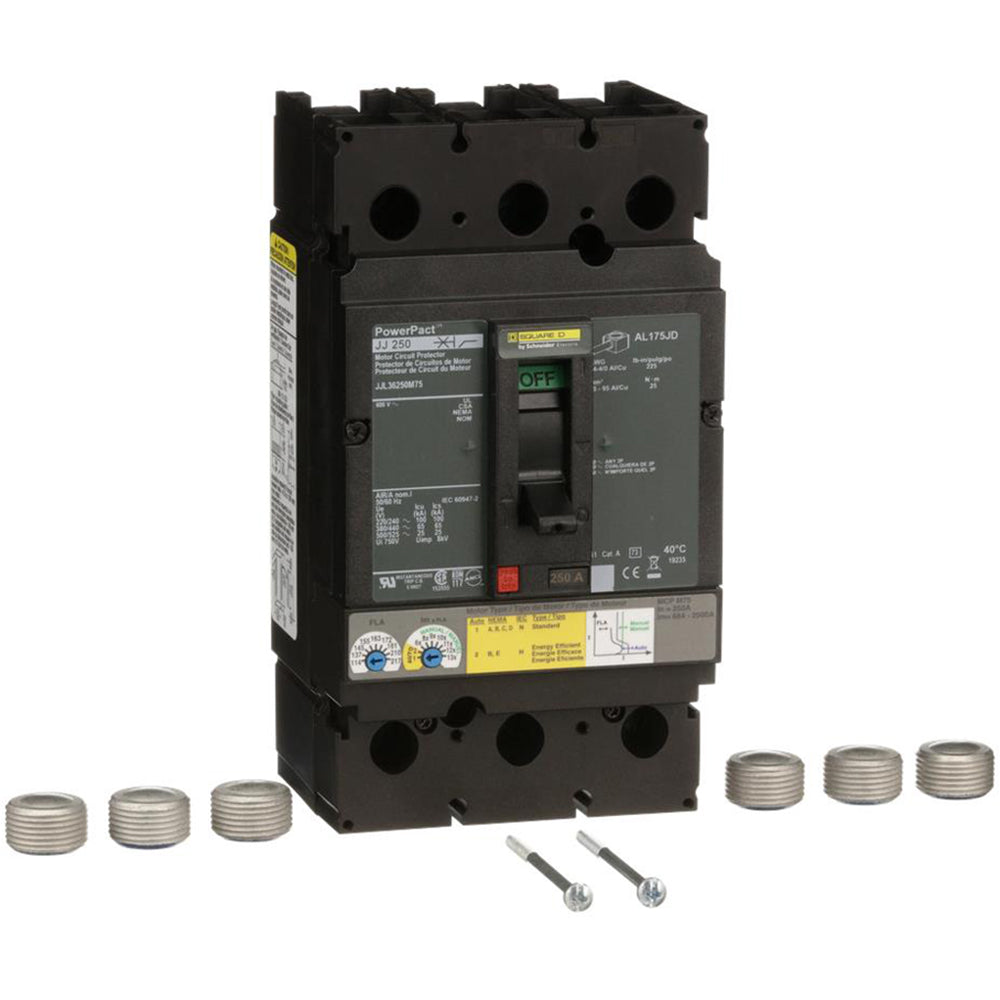

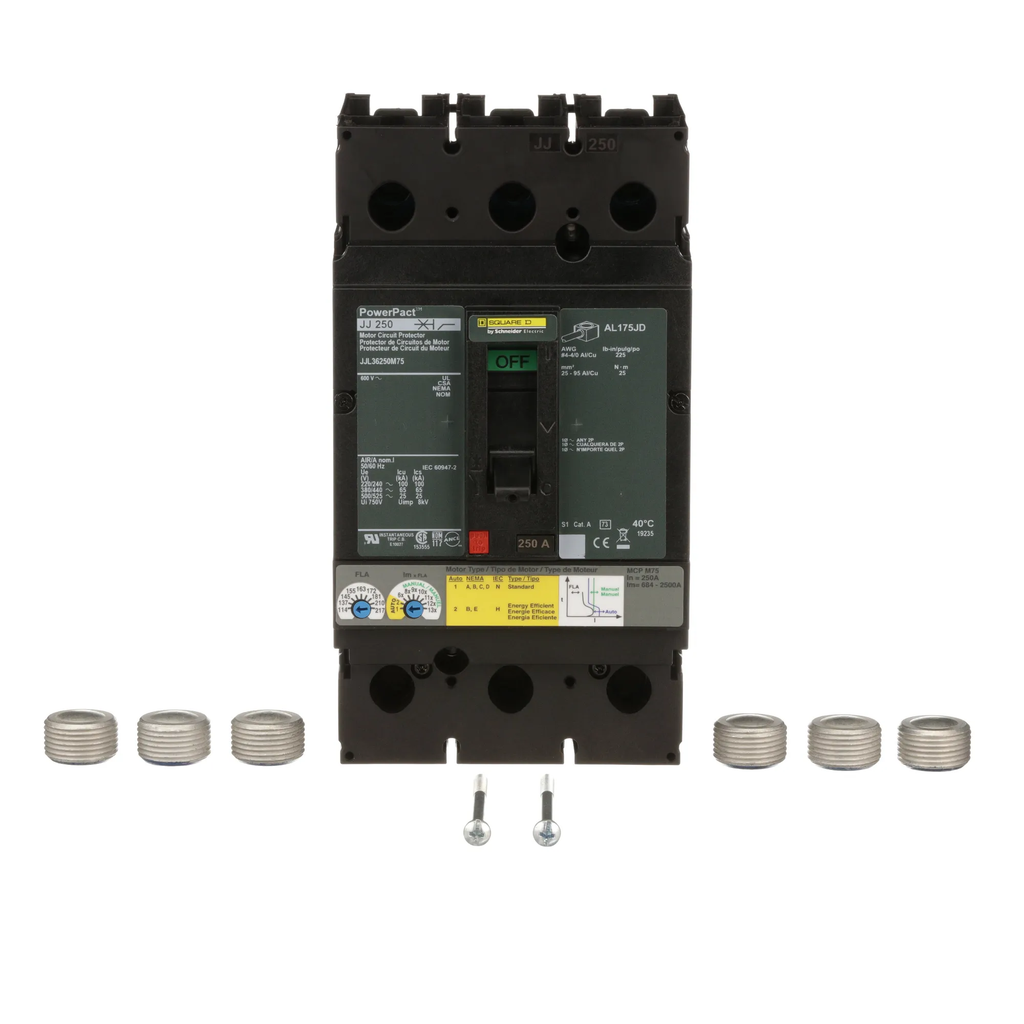

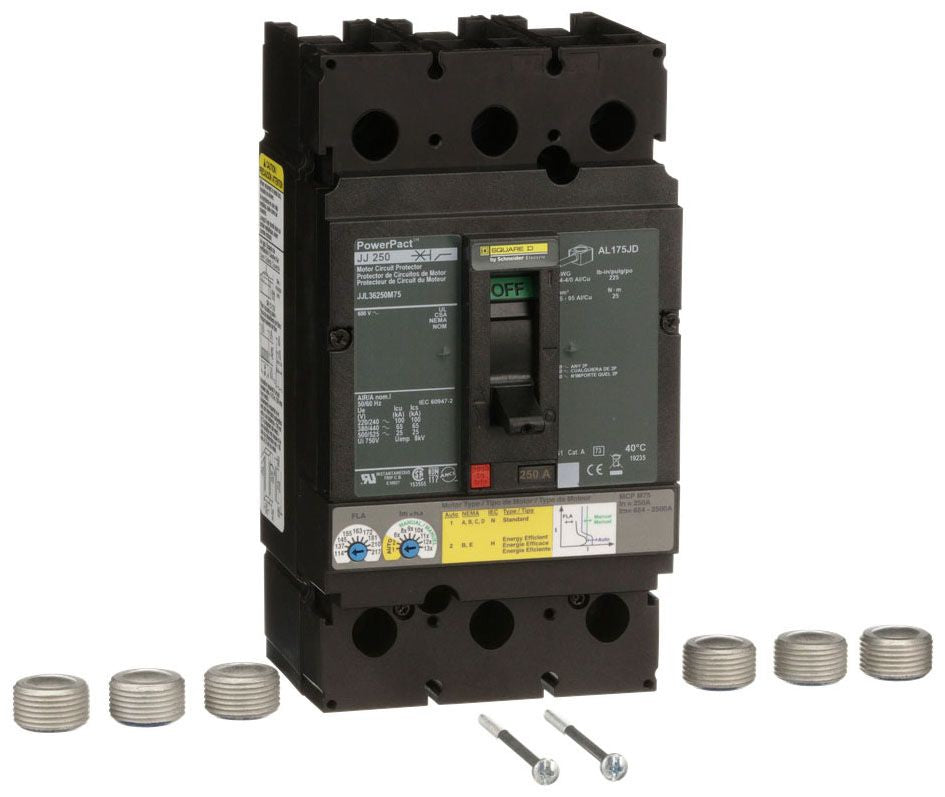

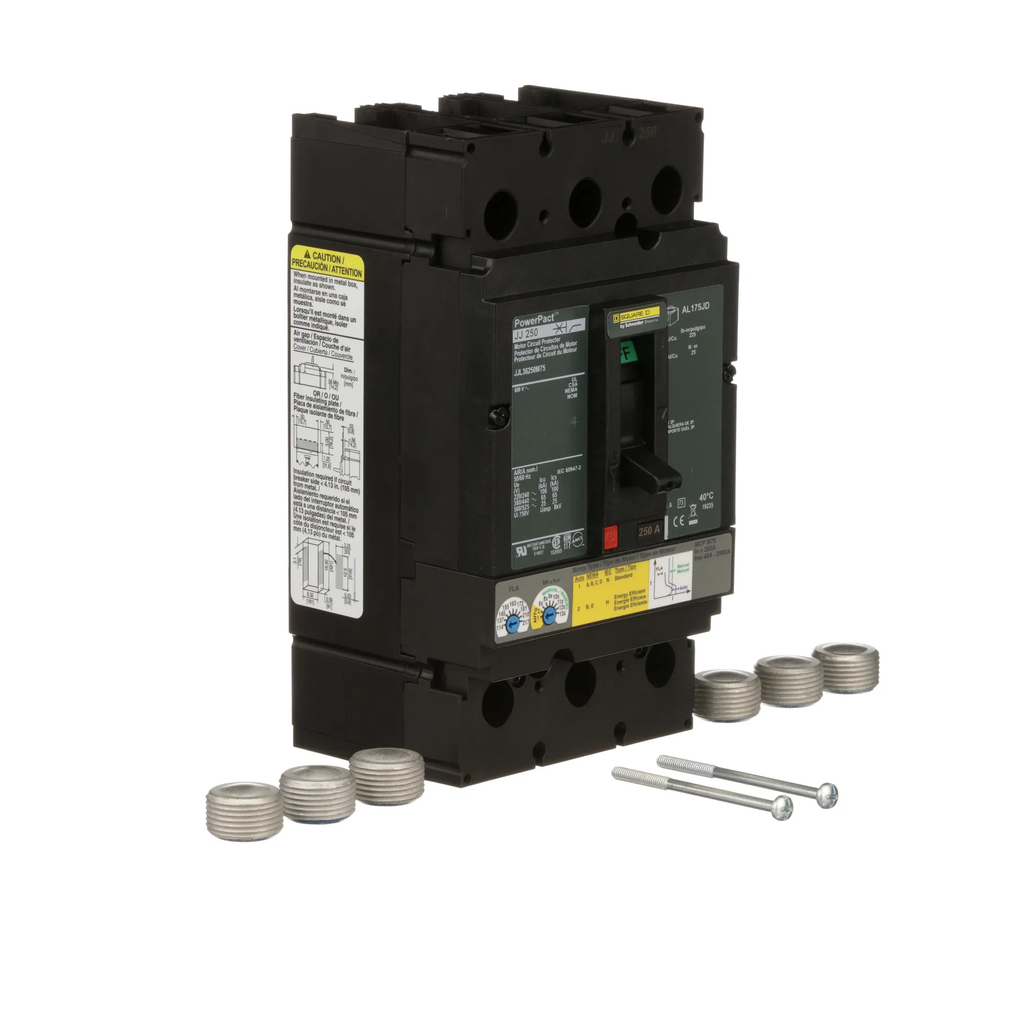

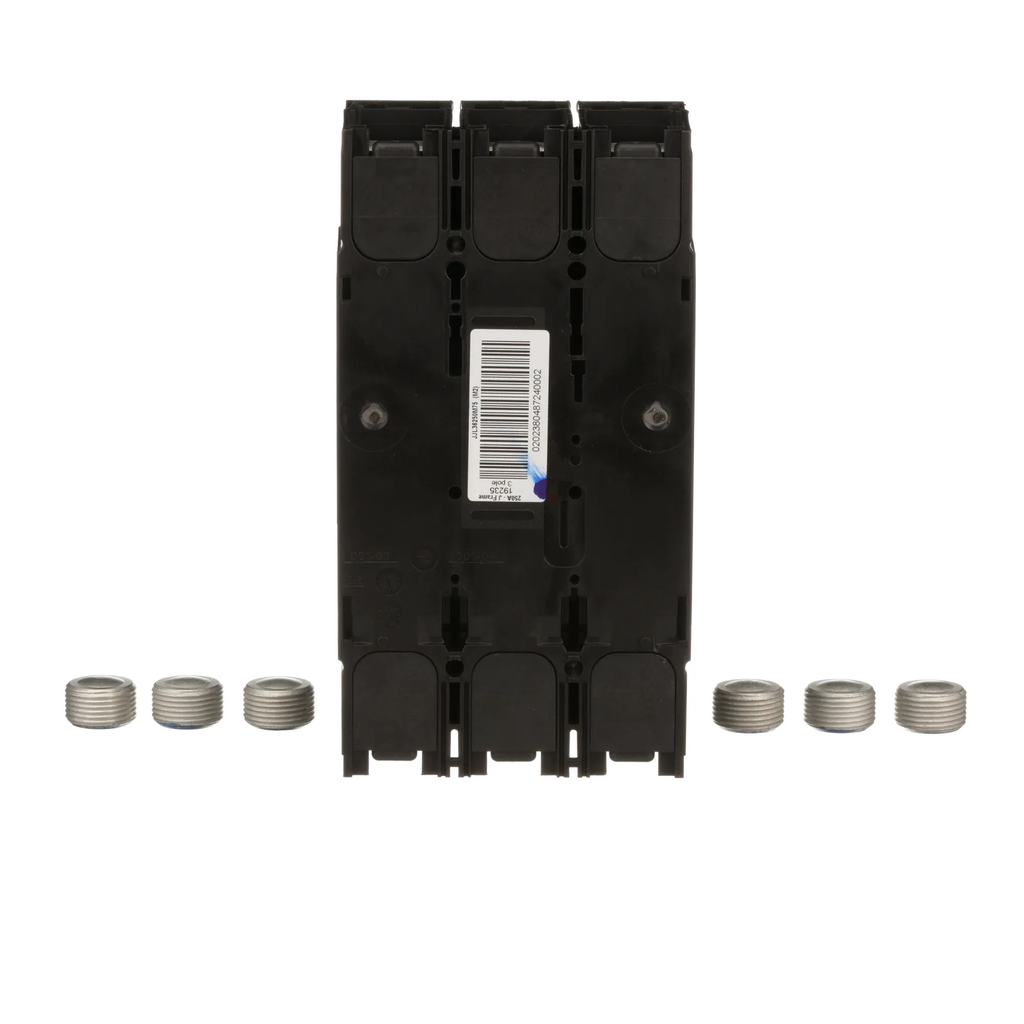

JJL36250M75 is a Square D Powerpact J-Frame molded case circuit breaker designed for 250 amp, 600 volt, 3-pole applications.This circuit breaker features thermal-magnetic trip technology with instantaneous protection, a 65kA interrupt rating at 480V, and is suitable for motor circuit protection with line and load side lug terminals. It supports feed-thru connections and is UL listed for safety and reliability. The breaker has a unit-mount lug mounting type and accommodates AWG 3/0 to 350 kcmil aluminum or copper wire.

Key Specifications
• Amperage: 250A
• Voltage Rating: 600V AC
• Poles: 3
• Frame Type: J-Frame
• Interrupt Rating: 65kA @ 480V
• Trip Unit: Thermal Magnetic with Instantaneous Protection
• Mounting Type: Unit-Mount Lug
• Connection Type: Line and Load Side Lugs
• Wire Range: AWG 3/0 to 350 kcmil Aluminum/Copper

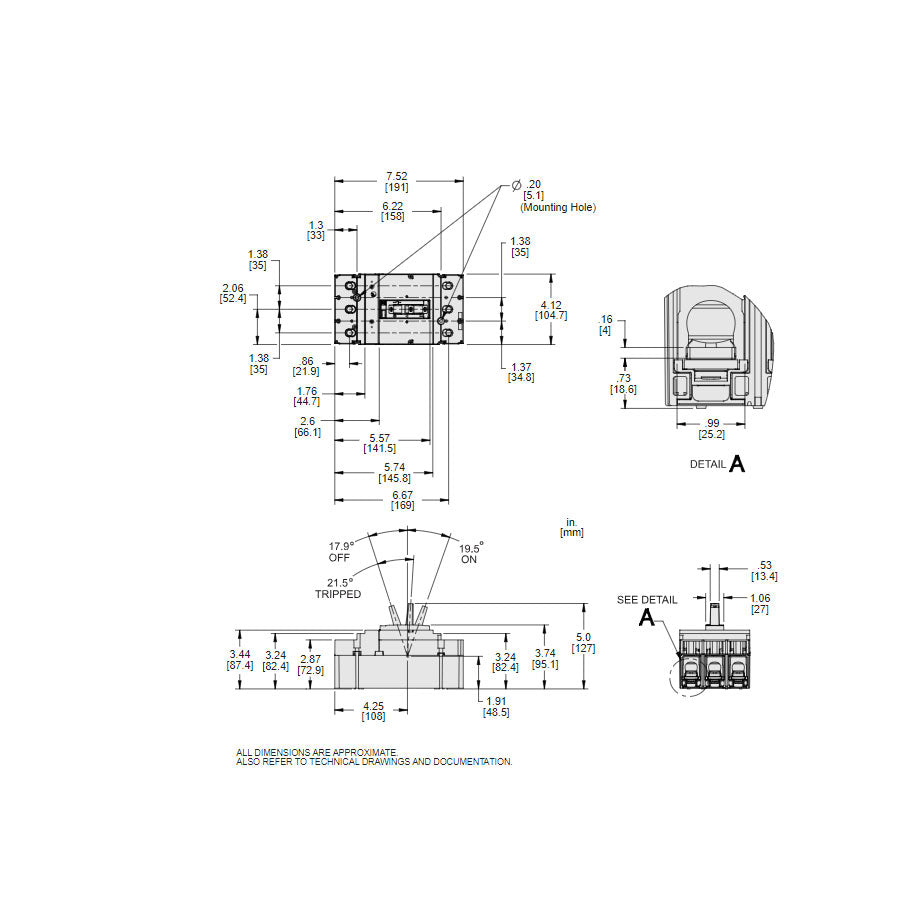

• Dimensions (HxWxD): 7.52" x 4.12" x 5"
• Weight: 5.29 lbs
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JJL36250M75
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JJ
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3 AWG Max. Wire Size 350 MCM
• Breaker Type : Motor Circuit Protector
• Protection : Magnetic Only
• Phase Connection : ABC



Product Data

• UPC : 785901541134
• GTIN : 00785901541134
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
