Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
JHC70

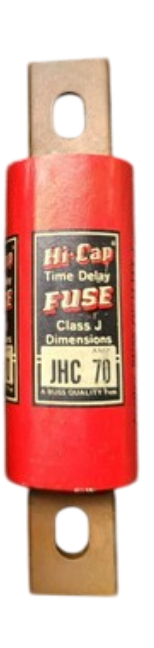

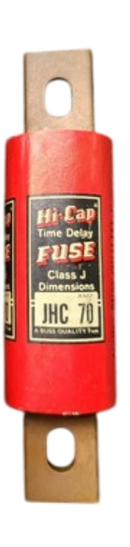

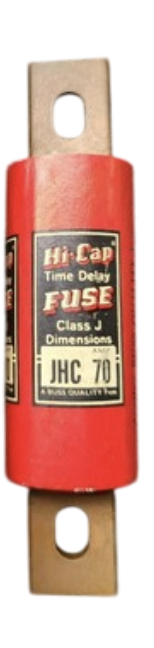

JHC70 is a 70A, 600V Class J time delay fuse designed for reliable circuit protection in industrial and commercial applications.This Eaton Bussmann series fuse features a high interrupting rating and is engineered for use in low voltage circuits requiring time delay characteristics. The JHC70 is a single-pole, bolted blade end fuse with a rejection style design to prevent improper fuse replacement.
- Amperage Rating: 70 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kAIC at 600 Vac
- Class: Class J
- Mounting Type: Bolted blade end
- Series: Bussmann
- Time Delay: Yes
- Rejection Style: Yes
- Number of Poles: 1
- RoHS Compliant
- CE Marked
Specifications
- Part Number: JHC70
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Hi Cap
- Type : JHC
- Voltage : 600
- Amperage : 70
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Class Rating : J
- Barrels : 1
Product Data
- Weight : 4
