Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

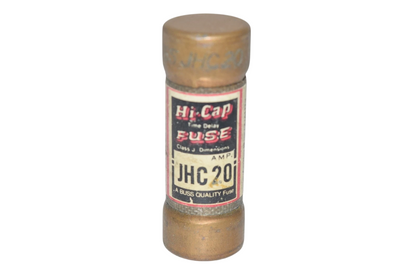

JHC20
JHC20 is a 20 Amp, 600 Volt Class J time delay Hi-Cap fuse designed for reliable overcurrent protection in electrical systems. JHC20 features a single barrel cartridge construction with a high interrupting rating of 200kA at 600V, providing excellent current-limiting and time-delay performance for industrial and commercial applications. This fuse is suitable for use in panelboards, motor control centers, and other low voltage power distribution equipment requiring Class J protection.
- Key Specifications
- Amperage: 20 Amp
- Voltage Rating: 600 Volts AC
- Fuse Type: Class J, Time Delay (Hi-Cap)
- Interrupting Rating: 200,000 Amps (200kA) at 600V
- Poles: 1 Barrel Cartridge
- Mounting Type: Cartridge Fuse Holder
- Series/Frame: Hi-Cap (JHC Series)
- Trip Unit: Time Delay
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: JHC20
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Hi Cap
- Type : JHC
- Voltage : 600
- Amperage : 20
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Class Rating : J
- Barrels : 1
Product Data
- Weight : 3
