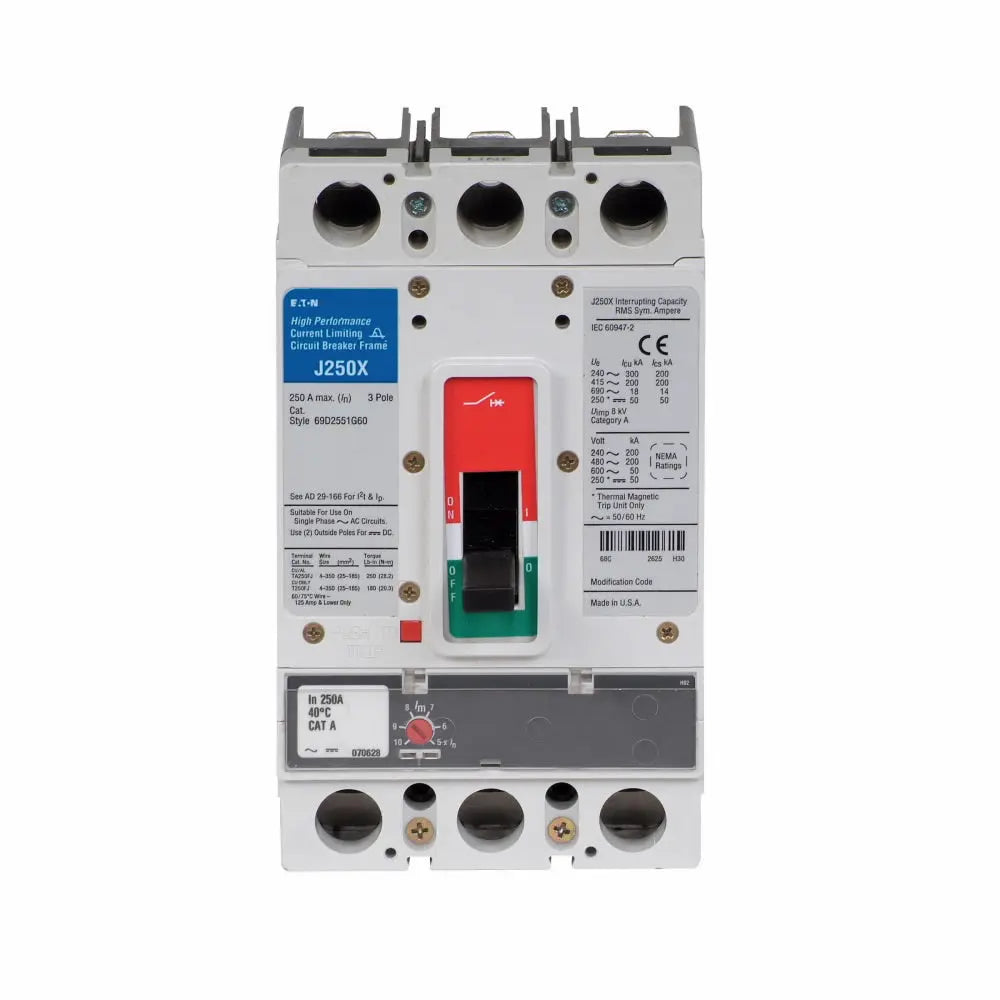

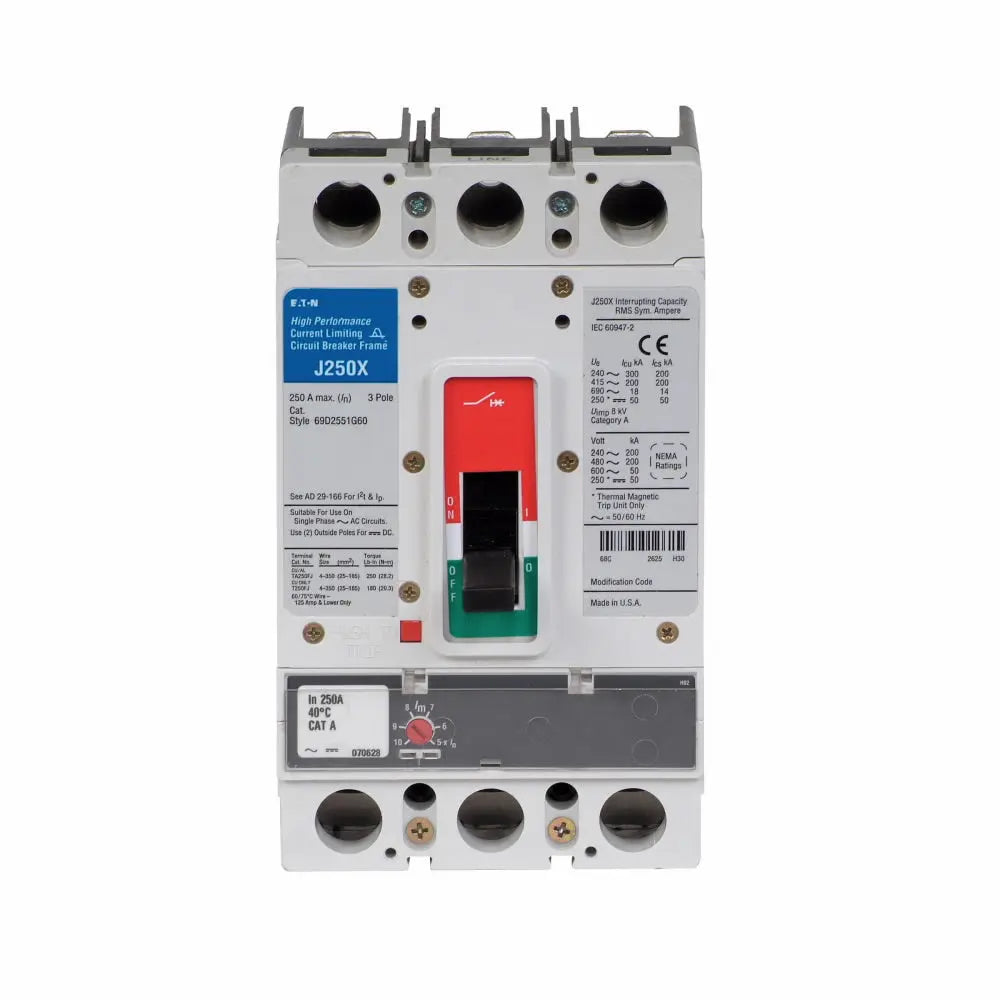

JGX3250FAG - Cutler Hammer 250A 600V 3P Circuit Breaker Series G Fixed Thermal Adjustable Magnetic

JGX3250FAG

JGX3250FAG is a Cutler Hammer Series G molded case circuit breaker designed for industrial power distribution applications.This circuit breaker features a 250 ampere rating, 600 volts AC maximum voltage, and three poles. It uses a fixed thermal and adjustable magnetic trip unit for reliable protection. The breaker has a high interrupting rating of 200kA at 240V and 480V, suitable for demanding electrical environments. It includes line and load side lug terminals and a JG frame type.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton Division)
• Amperage: 250A
• Voltage: 600 VAC max
• Poles: 3
• Frame Type: JG
• Trip Unit: Fixed thermal, adjustable magnetic
• Interrupt Rating: 200kA at 240V and 480V
• Mounting Type: Feed-Thru
• Series: Series G
• Certifications: Eaton standard industrial certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGX3250FAG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : JGX
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786685126722
• GTIN : 00786685126722
• Country of Origin : Dominican Republic
• Dimensions : 3.57 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 6
• Certification : CSA Certified,UL Listed,IEC Rated,CE Marked
