Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
JGU3150FAG

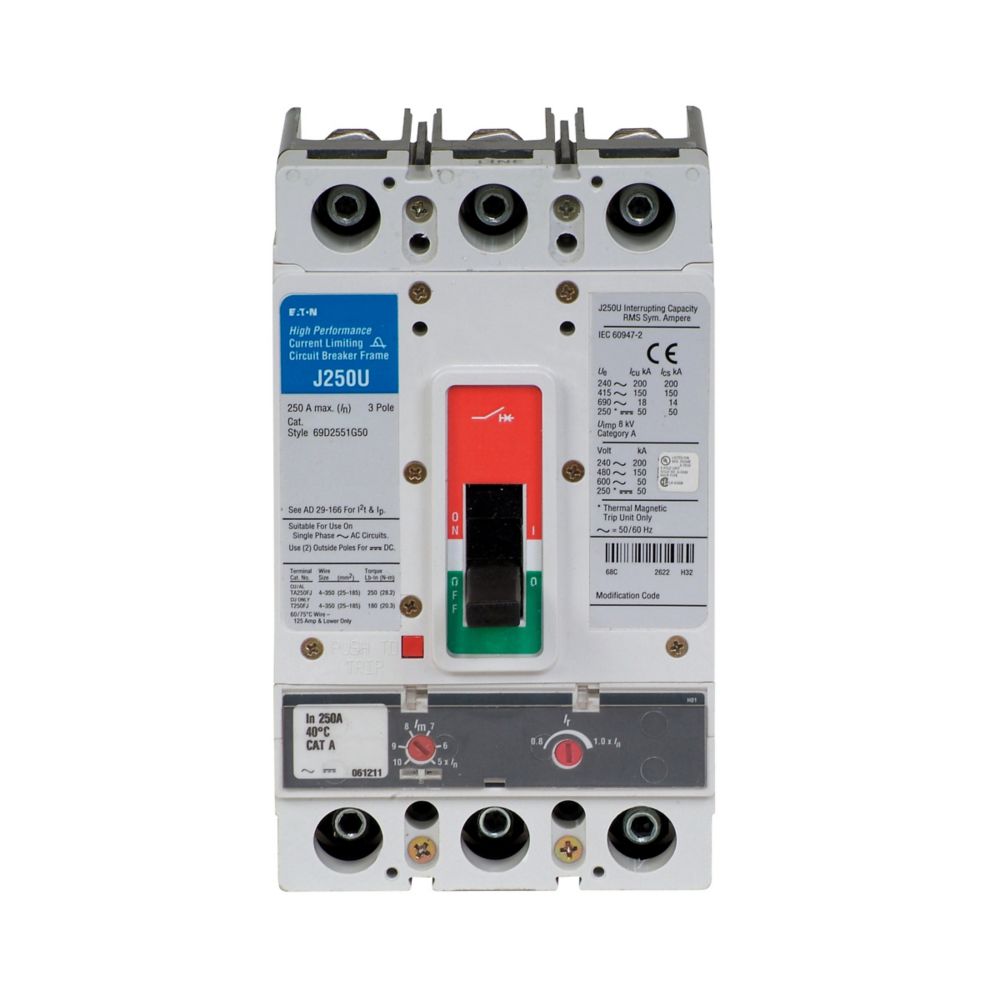

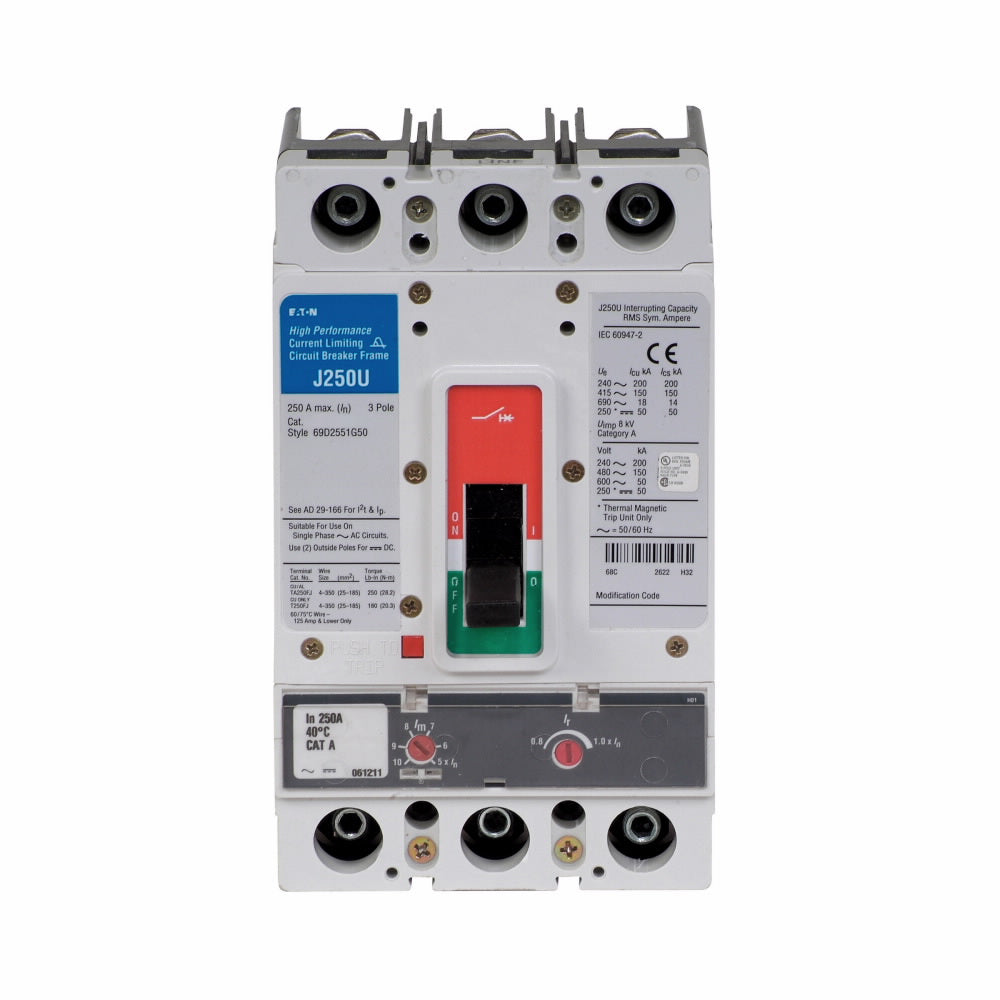

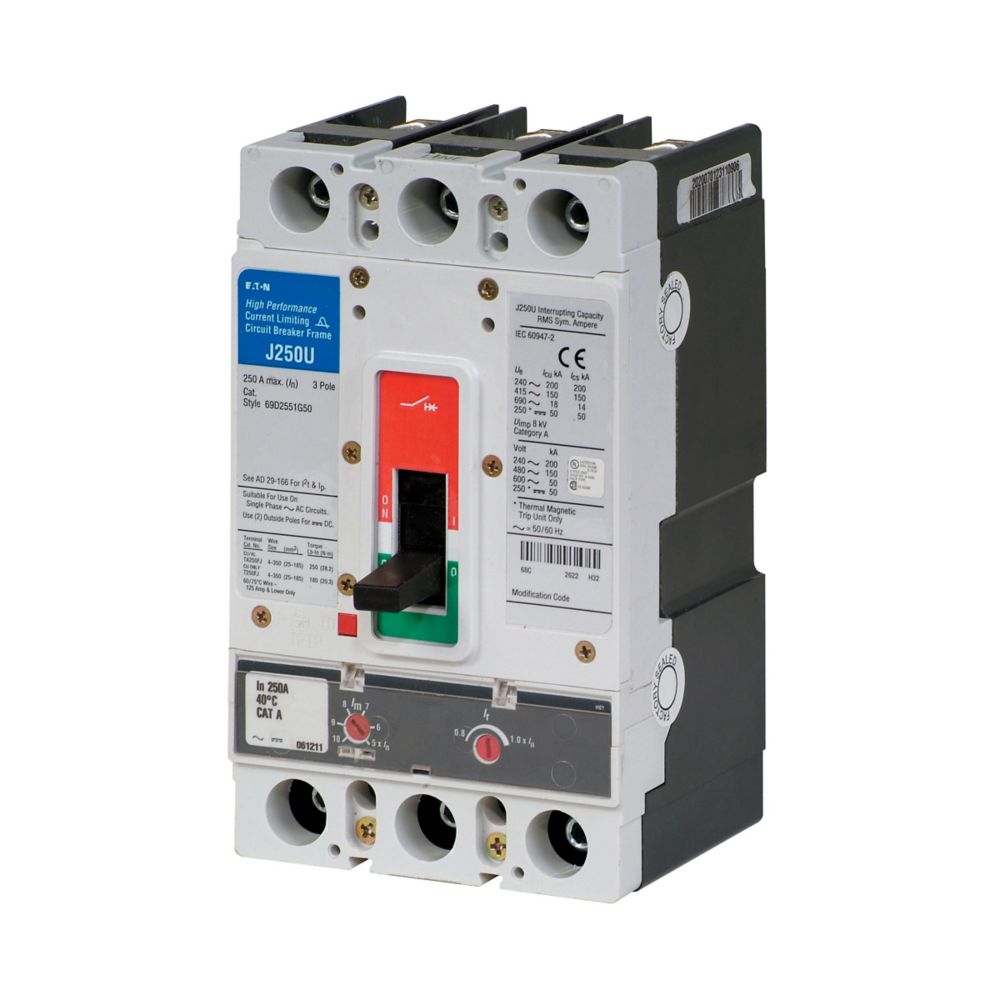

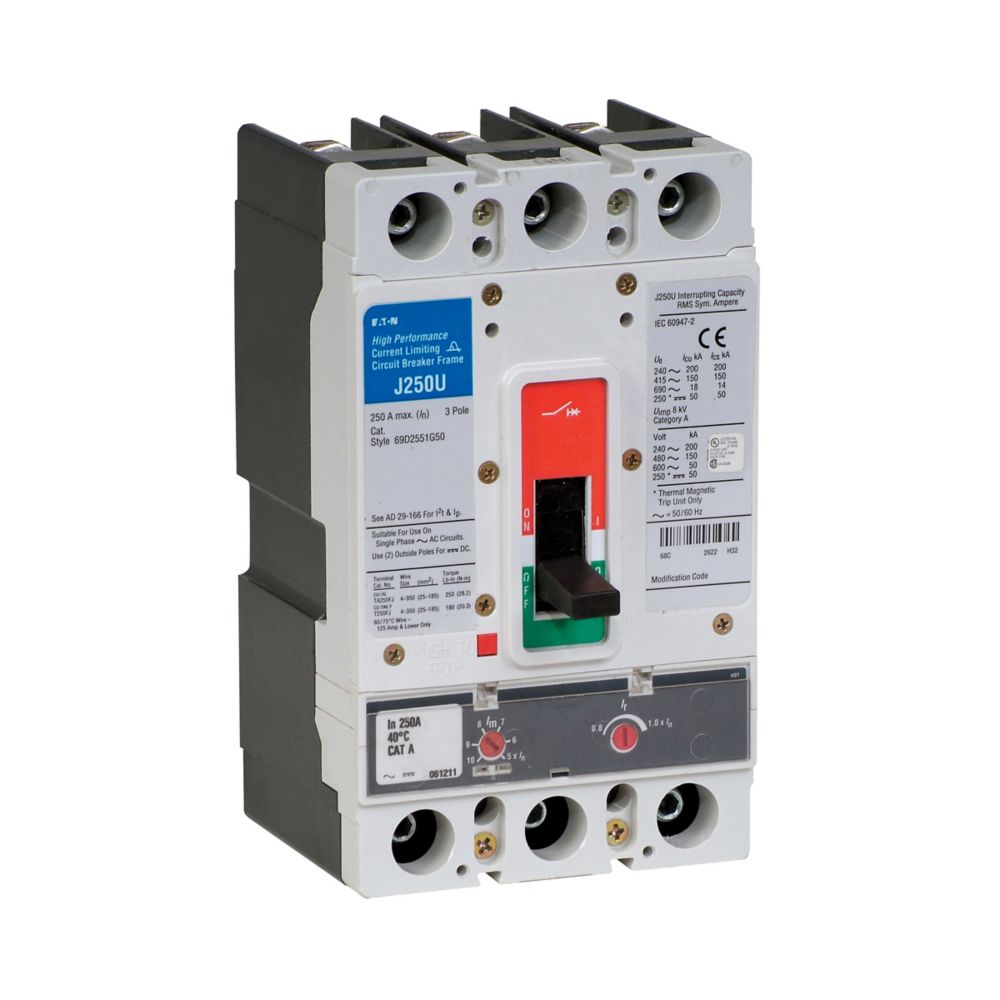

JGU3150FAG is a three-pole molded case circuit breaker from Cutler Hammer, designed for reliable protection in industrial and commercial power distribution systems.This JG frame circuit breaker features a 150 amp current rating, 600 volt maximum voltage, and is part of the Series G family. It offers adjustable magnetic and fixed thermal trip functionality for precise circuit protection. The breaker is feed-thru style, suitable for panelboard and switchgear applications.
- Part Number: JGU3150FAG
- Manufacturer: Cutler Hammer
- Series/Frame: JG Frame, Series G
- Amperage: 150 A
- Voltage: 600 VAC
- Poles: 3
- Interrupt Rating: 150 kA at 480V, 50 kA at 600V
- Mounting Type: Feed-Thru
- Thermal Trip: Fixed
- Magnetic Trip: Adjustable
- Application: Industrial and Commercial Power Distribution
Specifications
- Part Number: JGU3150FAG
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : JGU
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 150kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786685126593
- GTIN : 00786685126593
- Country of Origin : Dominican Republic
- Dimensions : 3.57 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 6
- Certification : UL Listed,IEC Rated,CSA Certified,CE Marked
