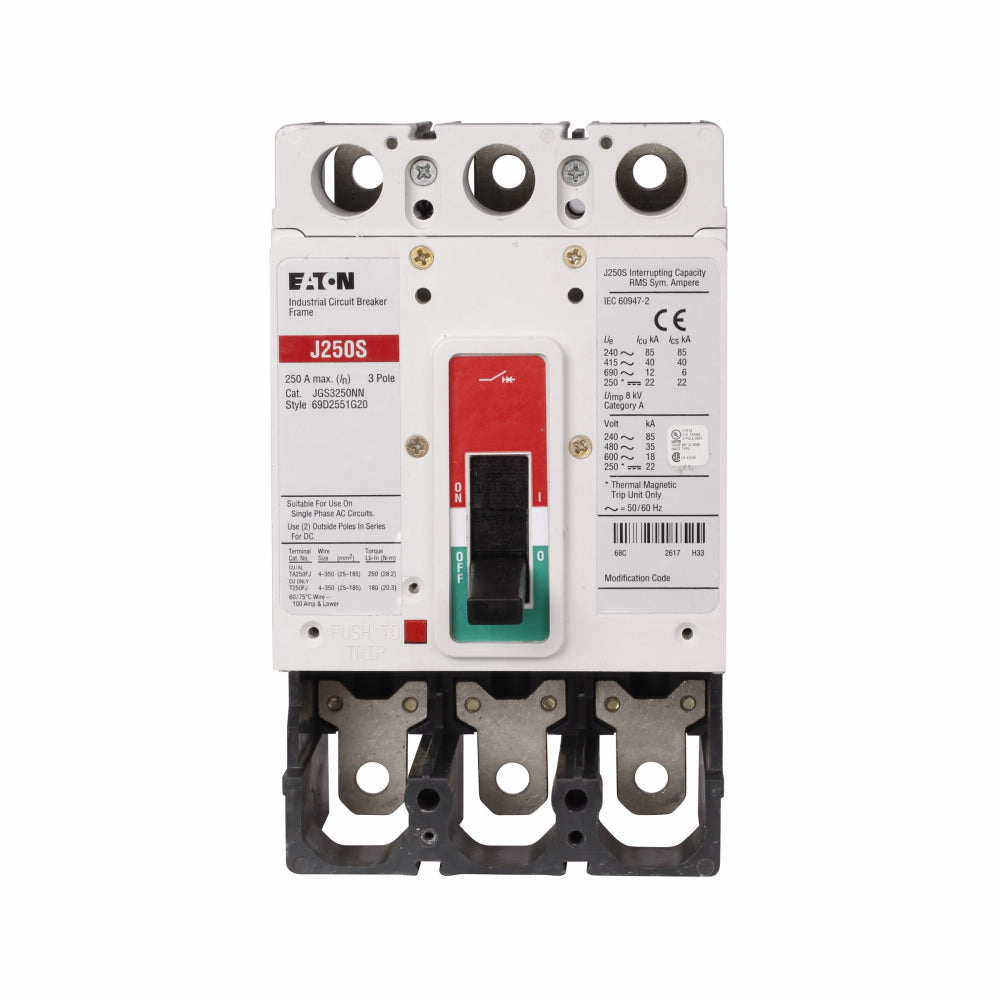

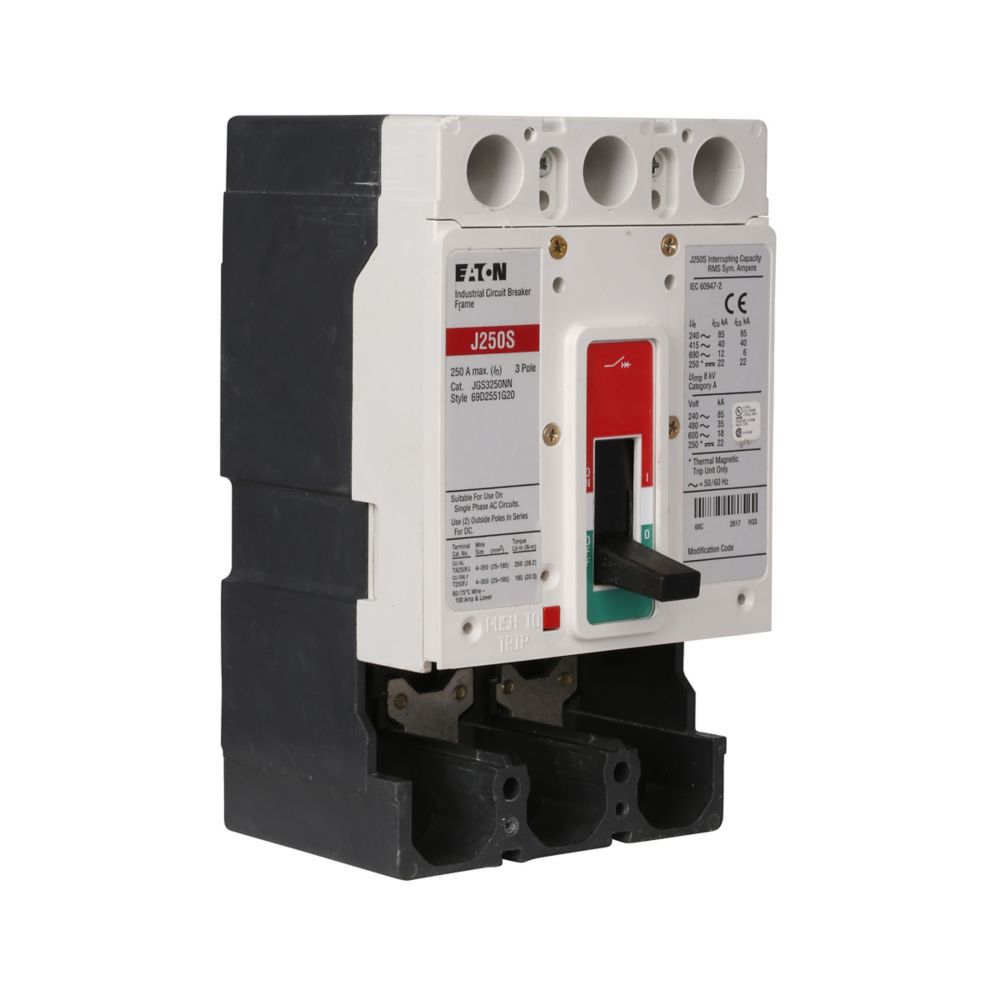

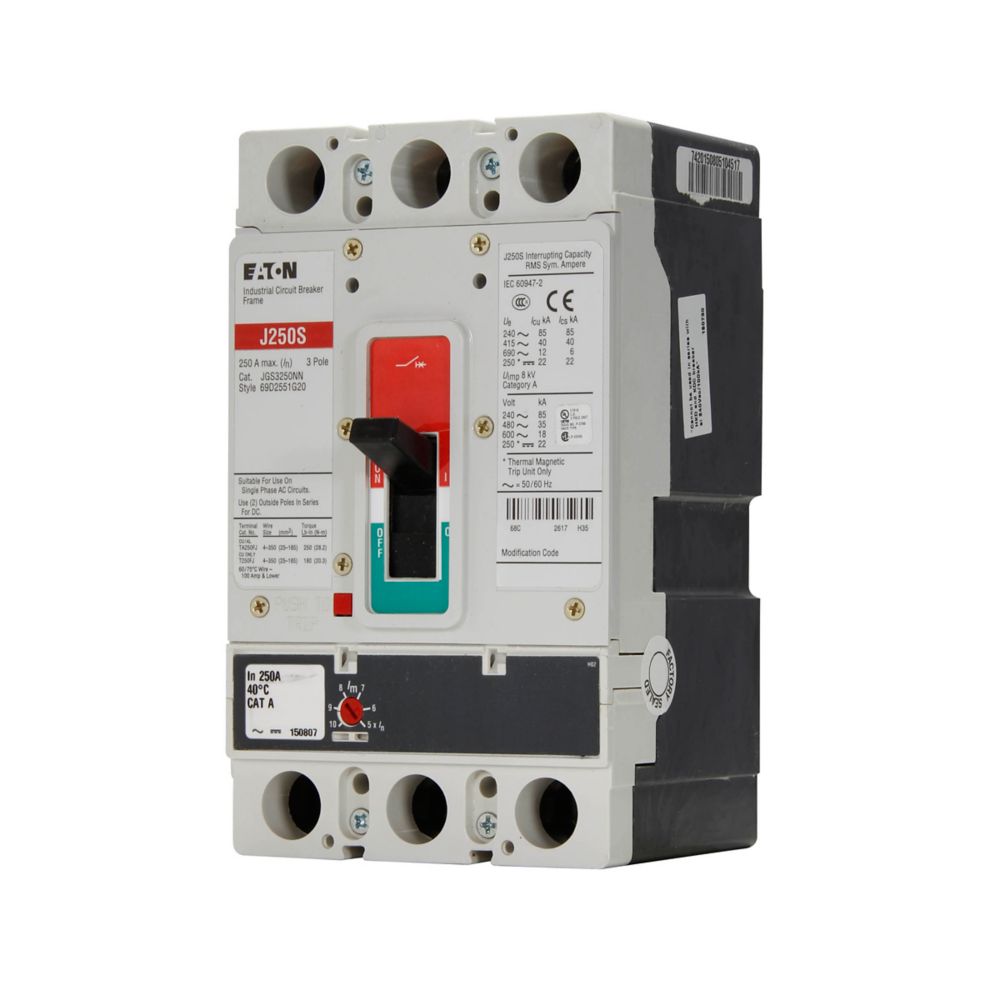

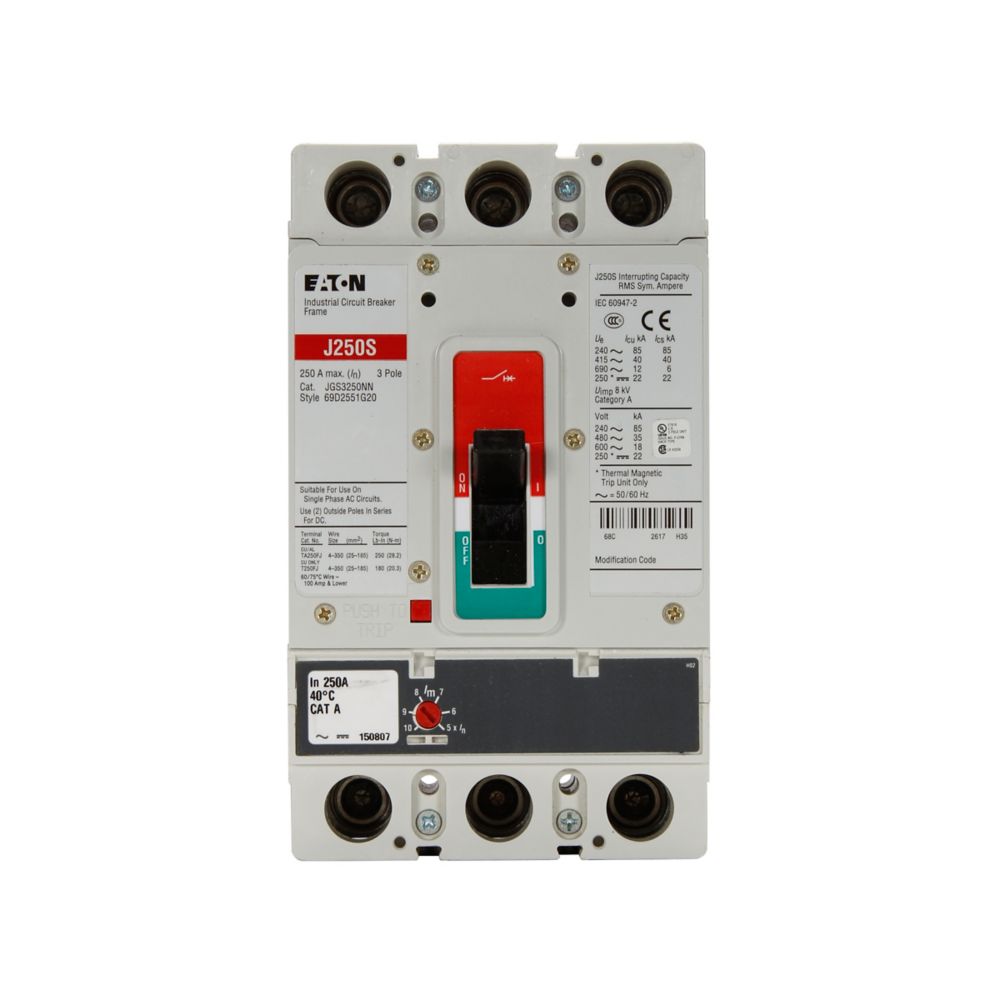

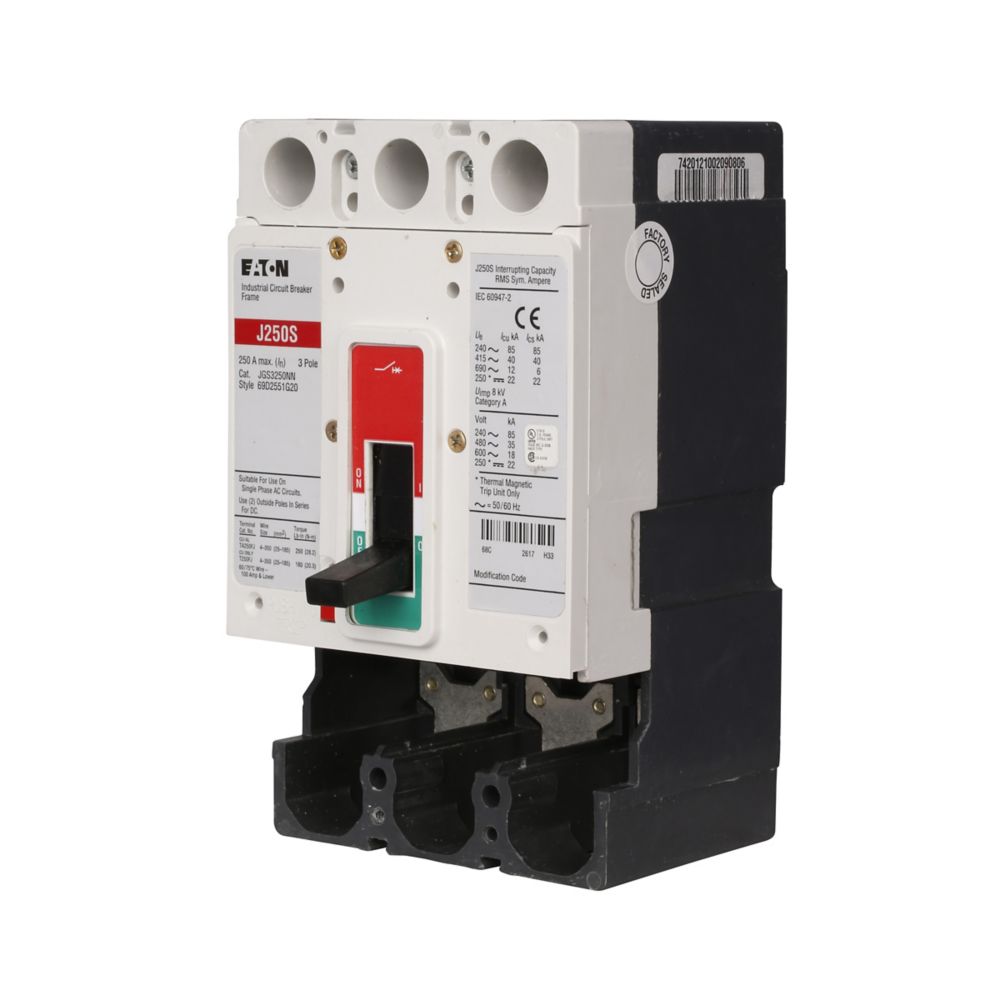

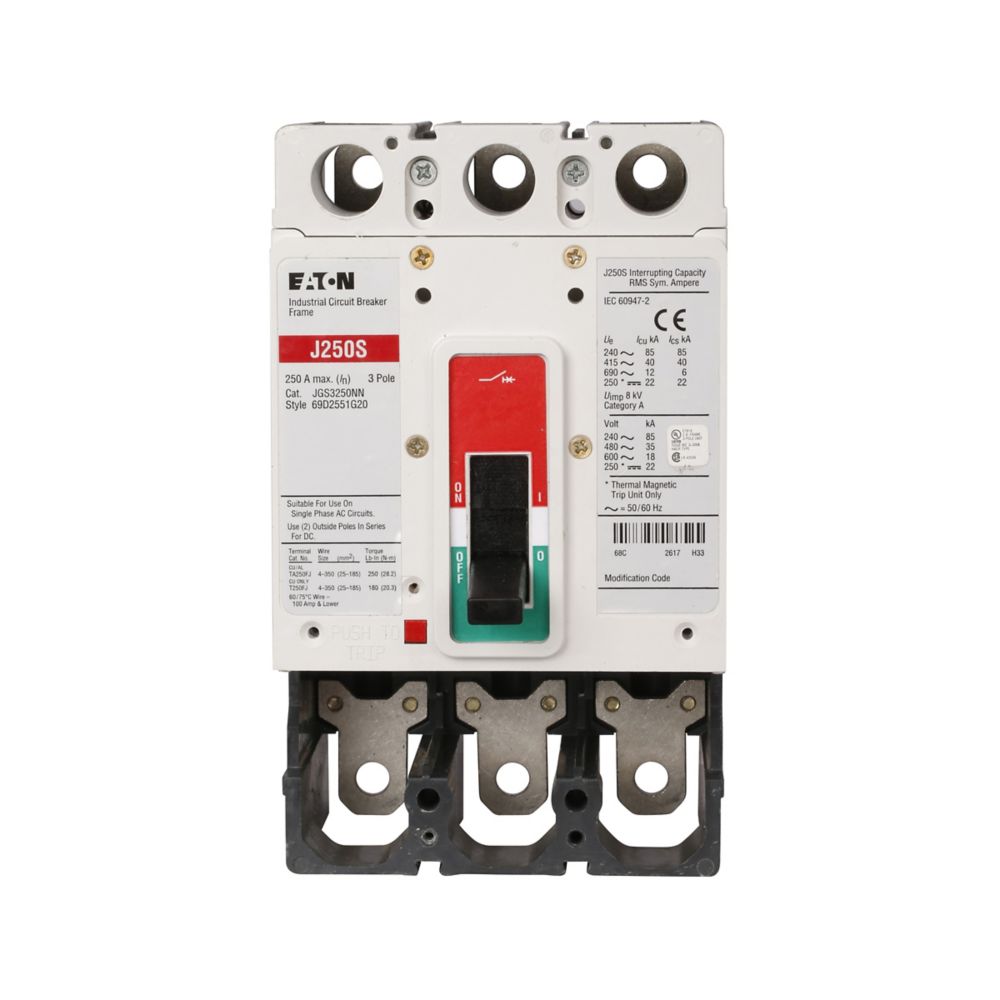

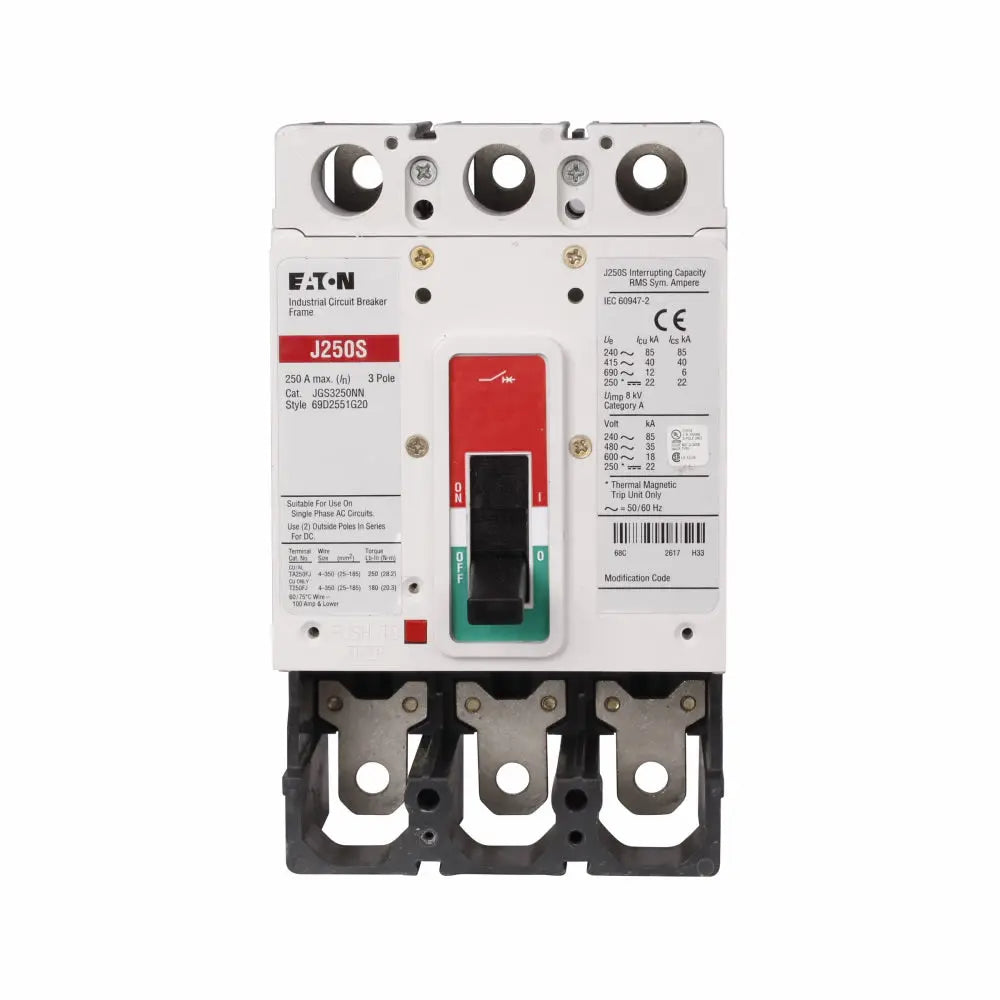

JGS3250FAG - Cutler Hammer Series G Molded Case Circuit Breaker 250A 600V 3P JG Frame

JGS3250FAG

JGS3250FAG is a Cutler Hammer Series G molded case circuit breaker designed for reliable protection in commercial and industrial applications. This three-pole breaker features a JG frame, 250A amperage, and a maximum voltage rating of 600V. It offers fixed thermal and adjustable magnetic trip functionality for precise circuit protection. The JGS3250FAG is built with metric mounting hardware and is suitable for standard line/load connections. It delivers robust interrupt ratings: 85 kAIC at 240V, 40 kAIC at 415V, 35 kAIC at 480V, and 18 kAIC at 600V. This breaker is ideal for use in panelboards and switchgear requiring dependable performance and compliance with industry standards.

• Part Number: JGS3250FAG
• Manufacturer: Cutler Hammer (Eaton)
• Series/Frame: Series G, JG Frame
• Amperage: 250A
• Voltage: 600VAC
• Poles: 3P (Three Pole)
• Interrupt Rating: 85 kAIC (240V), 40 kAIC (415V), 35 kAIC (480V), 18 kAIC (600V)
• Mounting Type: Metric Hardware, Line/Load Standard
• Thermal Trip: Fixed
• Magnetic Trip: Adjustable
• Application: Commercial, Industrial
• Compliance: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGS3250FAG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : JGS
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782113526836
• GTIN : 00782113526836
• Country of Origin : Dominican Republic
• Dimensions : 3.57 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 6
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
