Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
JGS325033GC

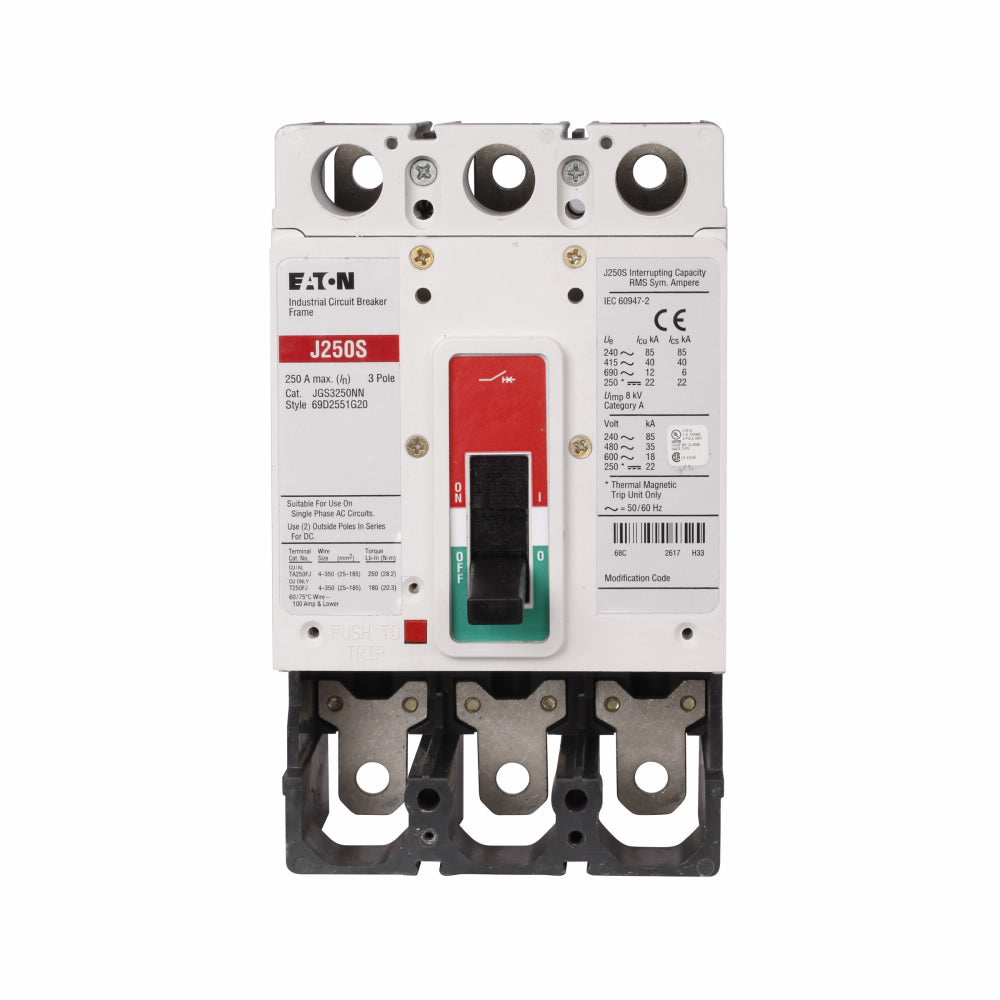

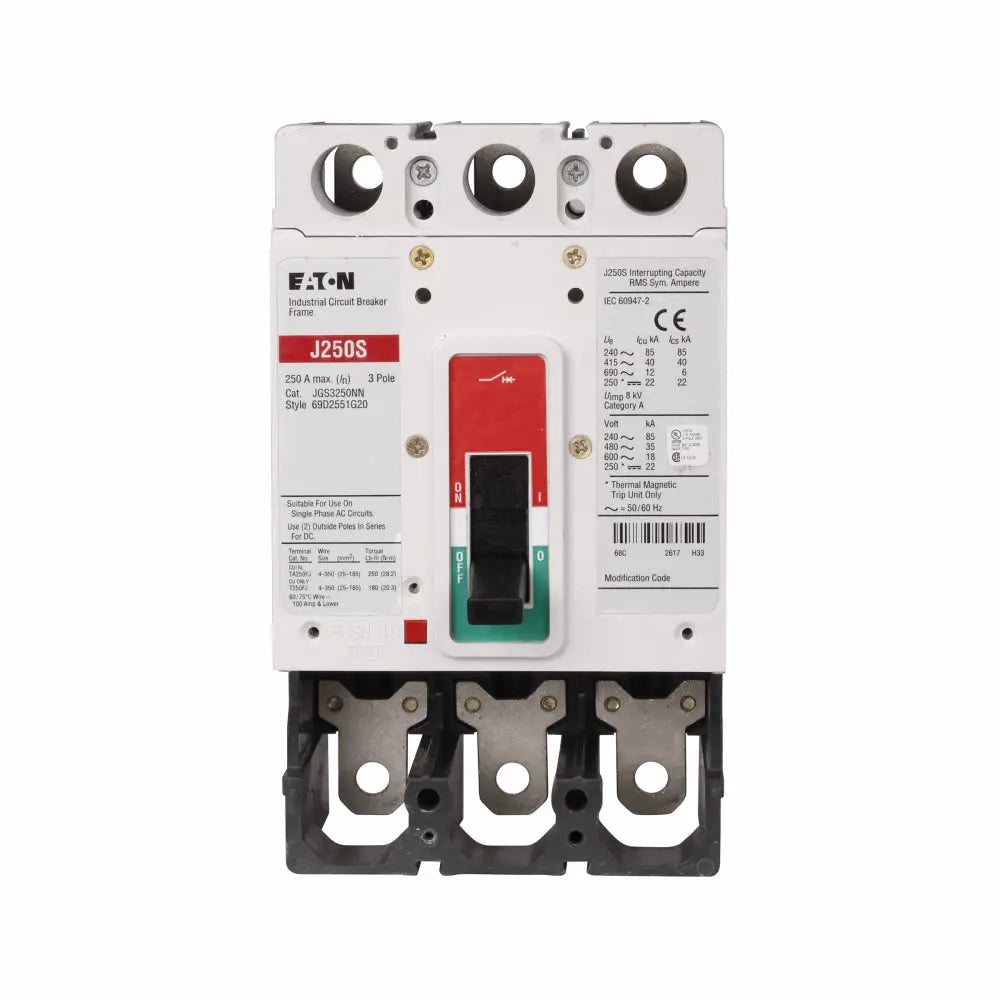

JGS325033GC is a 3 pole, 250 amp, 600 Volt Series G molded case circuit breaker from Eaton with an electronic LS trip unit.
This Eaton JGS325033GC breaker features a JG-frame design with Digitrip 310 RMS electronic LS trip technology. It offers high interrupt ratings of 85kA at 240V, 40kA at 415V, and 35kA at 480V, suitable for industrial power distribution. The breaker supports copper line/load connections and is designed for reliable protection and long service life.
- Key Specifications
- Amperage: 250A
- Voltage Rating: 600 Vac
- Poles: 3
- Series/Frame: Series G, JG-frame
- Trip Unit: Digitrip 310 RMS Electronic LS Trip
- Interrupt Rating: 85kA at 240V, 40kA at 415V, 35kA at 480V
- Mounting Type: Molded Case
- Line/Load: Copper connections
- Certifications: Eaton standard industrial certifications
- Part Number: JGS325033GC
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LS - Long-Time and Short-Time
- Protection : Solid State
- UPC : 78668510774
- GTIN : 00786685107745
- Country of Origin : United States
- Dimensions : 9.25 in x 5 in x 5 in (Length/Depth x Height x Width)
- Weight : 12
- Certification : CSA Certified,UL Listed,IEC Rated,CE Marked
