Product Info
- Manufacturer:Square D
- Sub-Category:Magnetic switch
Description
JGN36000S25

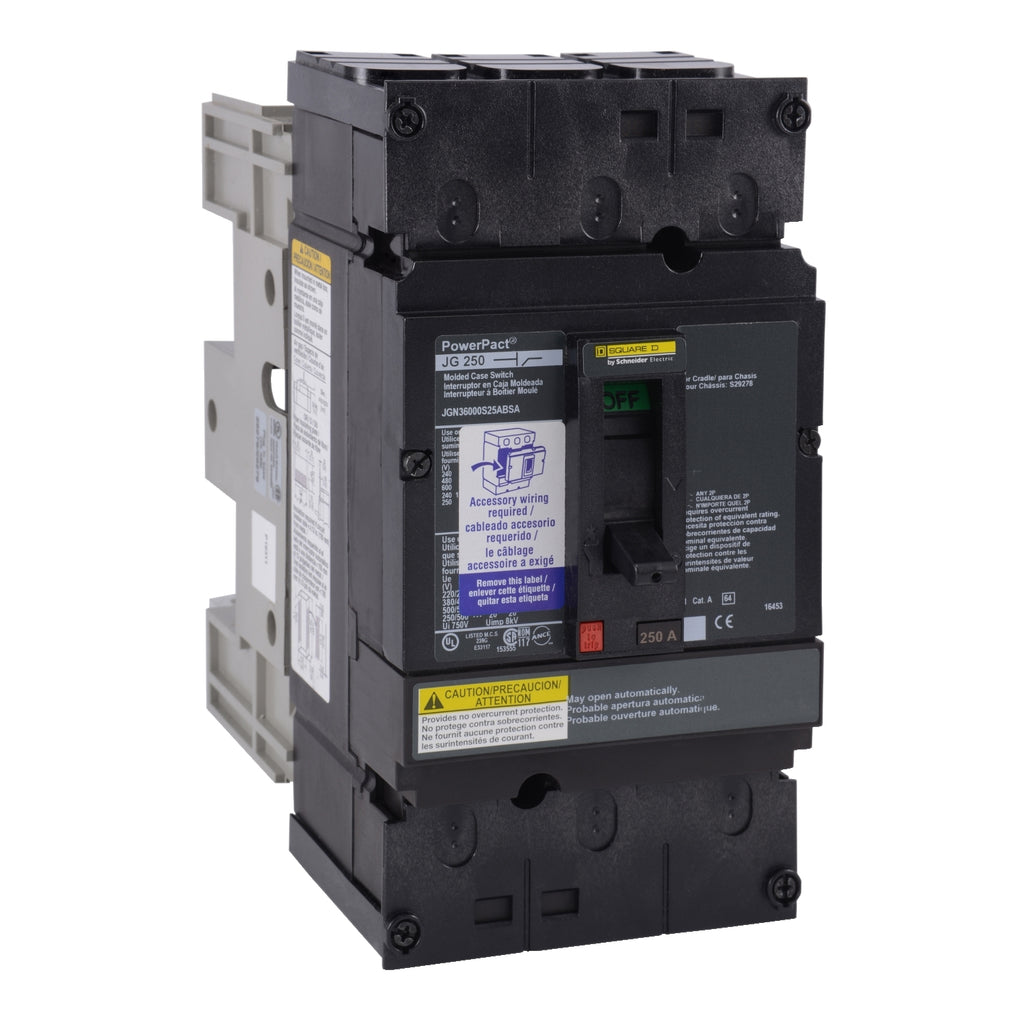

JGN36000S25 is a Square D PowerPact J automatic molded case switch designed for reliable circuit protection in commercial and industrial applications.
This 3-pole, 250A switch features a 600VAC voltage rating, plug-in mounting, and a thermal/magnetic trip unit. It is certified to UL, CSA, and CE standards, with an interrupting rating of 18kA at 600VAC. The JGN36000S25 is suitable for a wide range of environments, including construction, data centers, and industrial facilities.
-
Key Specifications
- Amperage: 250A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Mounting Type: Plug-In
- Interrupt Rating: 18kA at 600VAC, 35kA at 480VAC, 65kA at 240VAC, 20kA at 250/500VDC
- Series/Frame: PowerPact J
- Trip Unit: Thermal/Magnetic, factory set nonadjustable
- Certifications: UL, CSA, CE
- Frequency: 50/60 Hz
- Wire Size: 3/0 AWG to 350 kcmil
- Enclosure: NEMA AB1
- Temperature Rating: 104°F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JGN36000S25
- Manufacturer : Square D
- Brand : Hubbell
- Category : Motor Control
- Item Subcategory : Magnetic switch
- Voltage : 600 600
Product Data
- UPC : 785901671008
- GTIN : 00785902000000
- Country of Origin : United States
- Dimensions : 4.12 in W x 12.08 in D x 6.4 in H
- Weight : 5.19
- Certification : IEC || NMX || CSA || UL Listed || CE || CCC
