JGL36250 - Square D 250A 600V 3-Pole Powerpact J Frame Molded Case Circuit Breaker

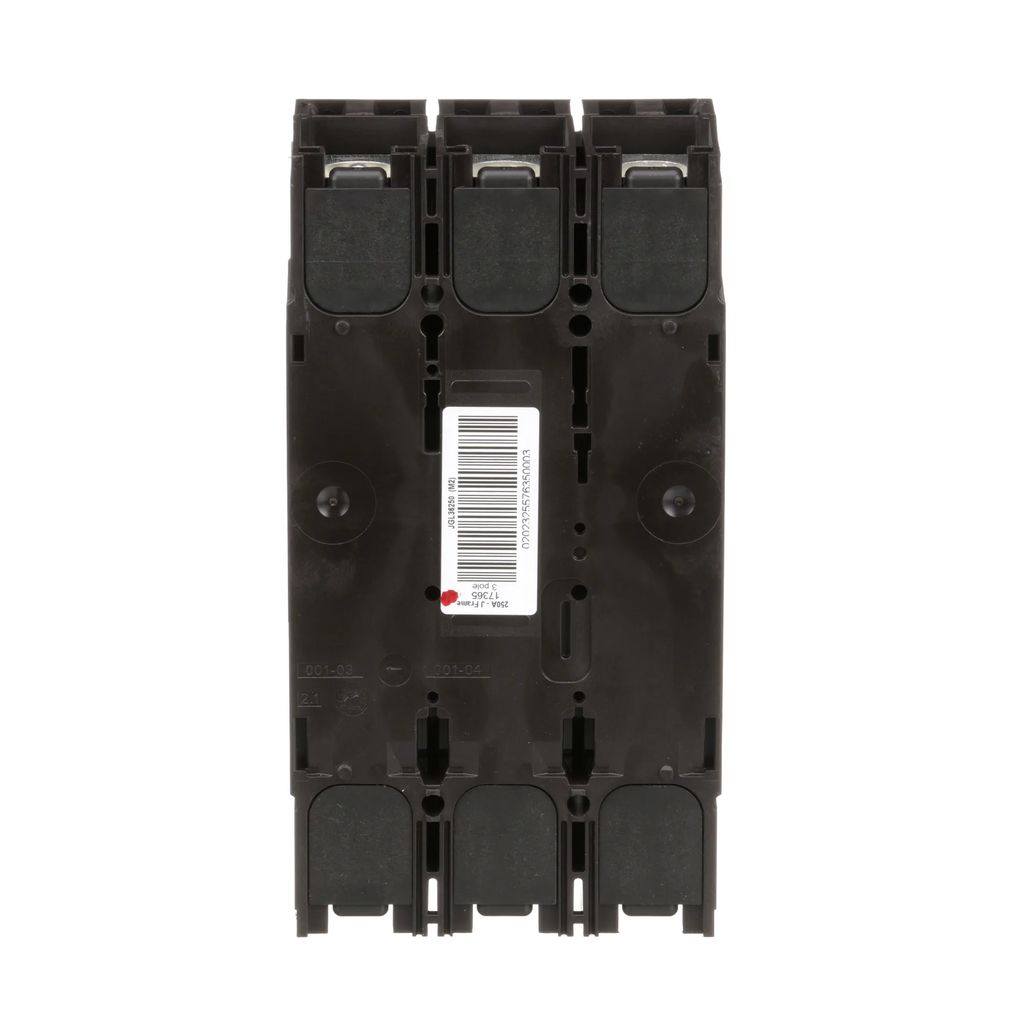

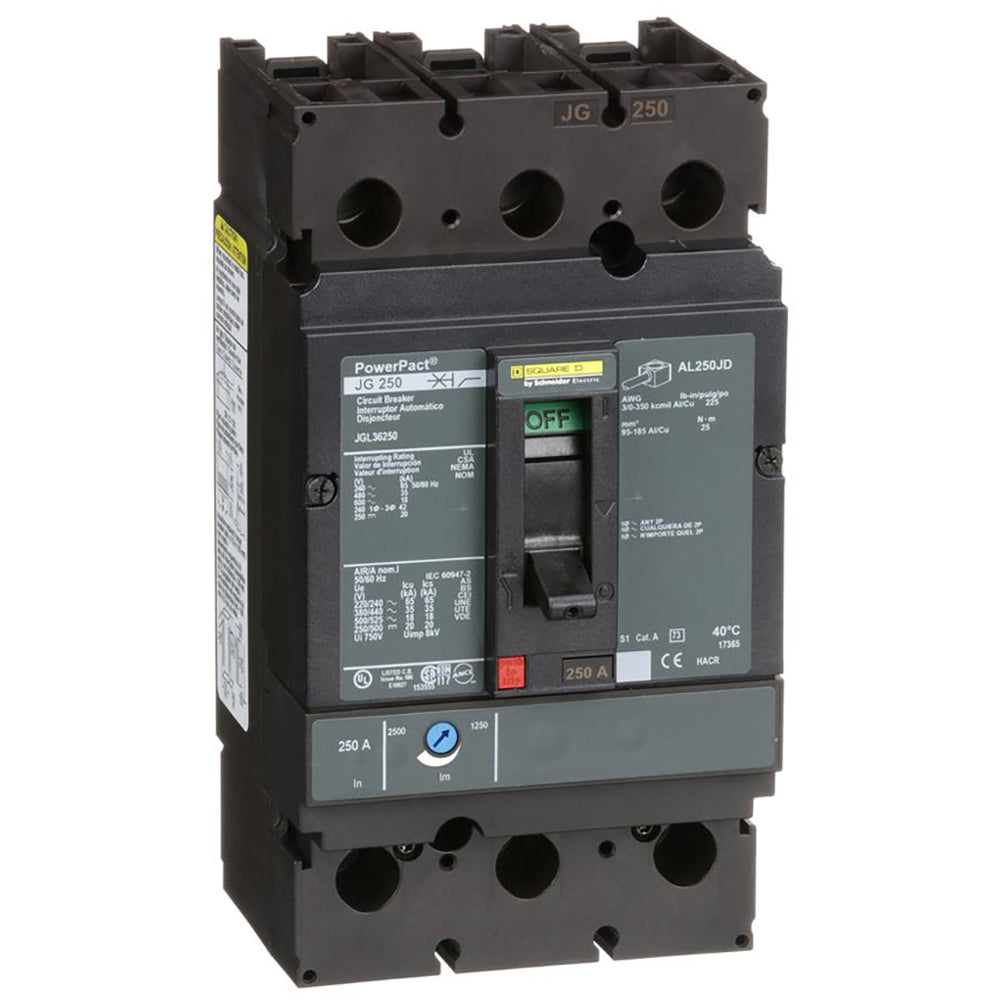

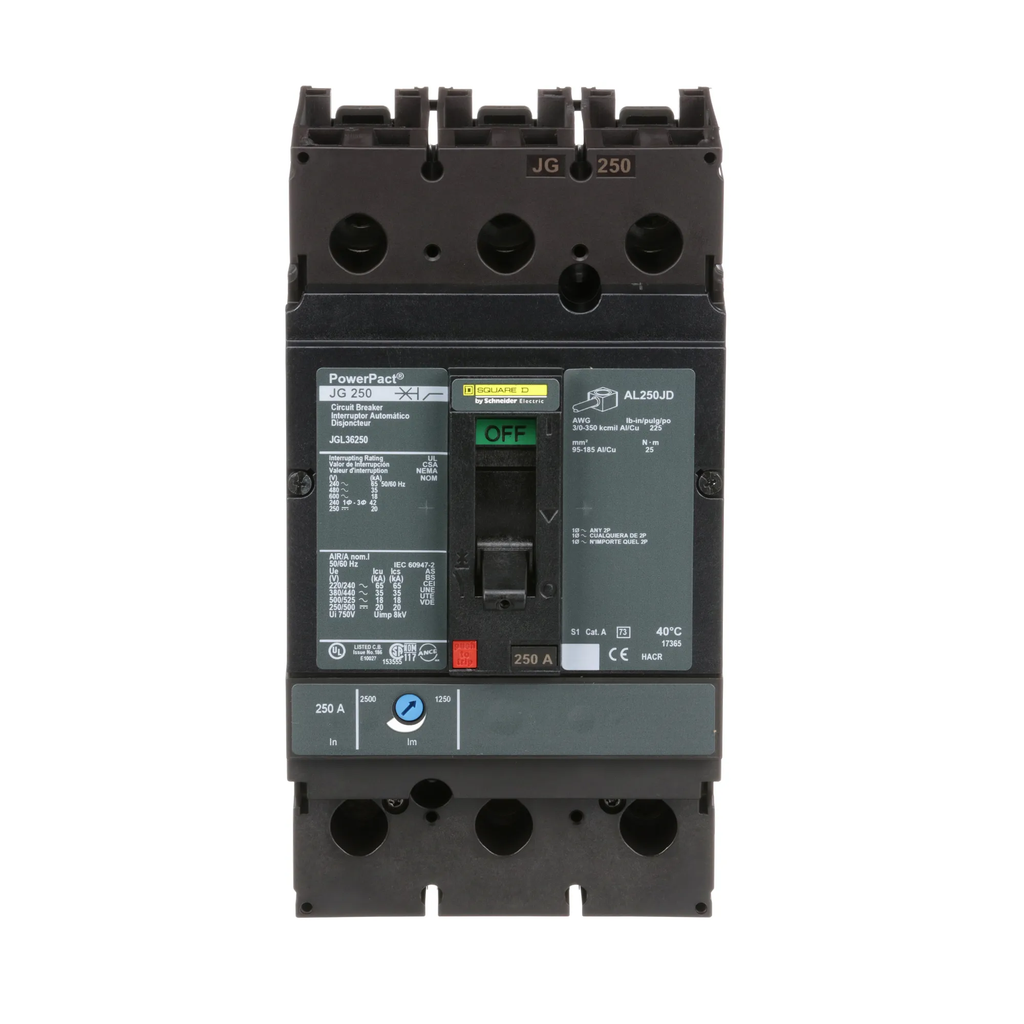

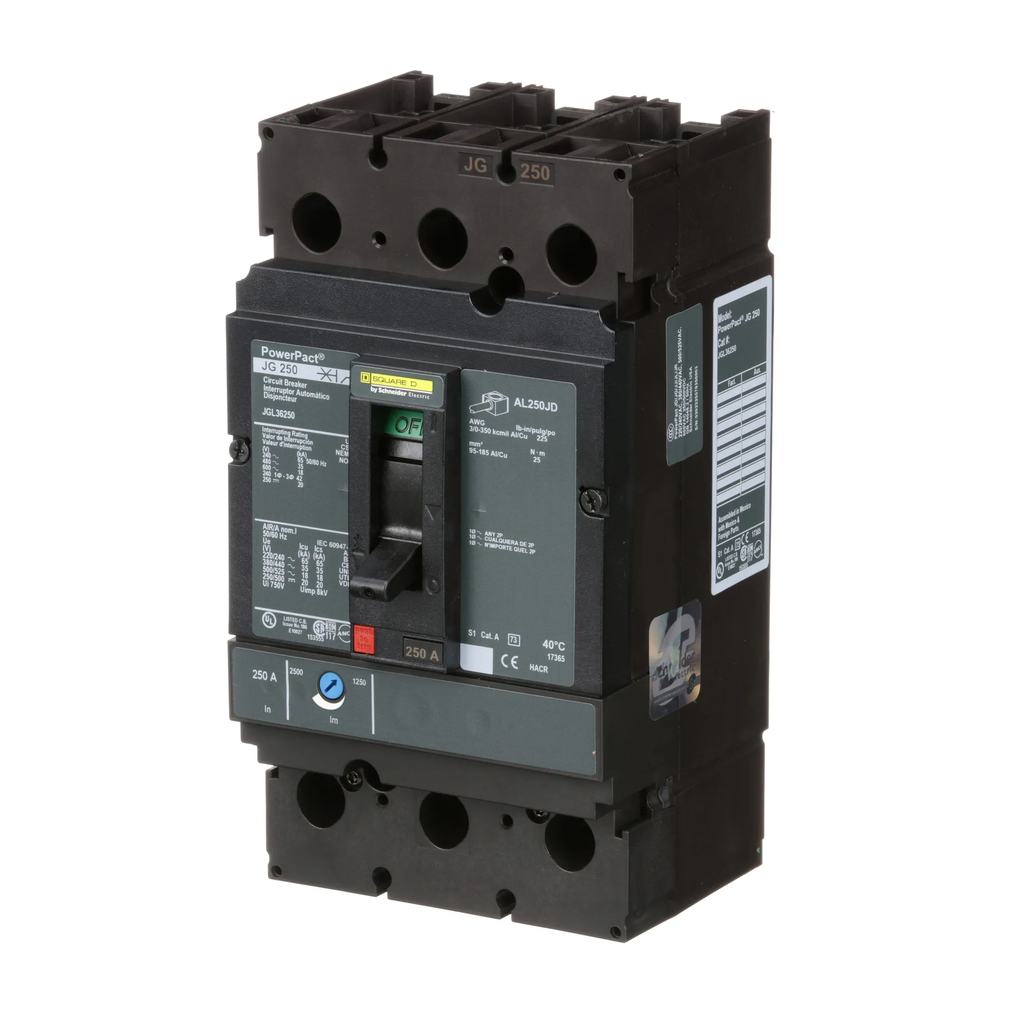

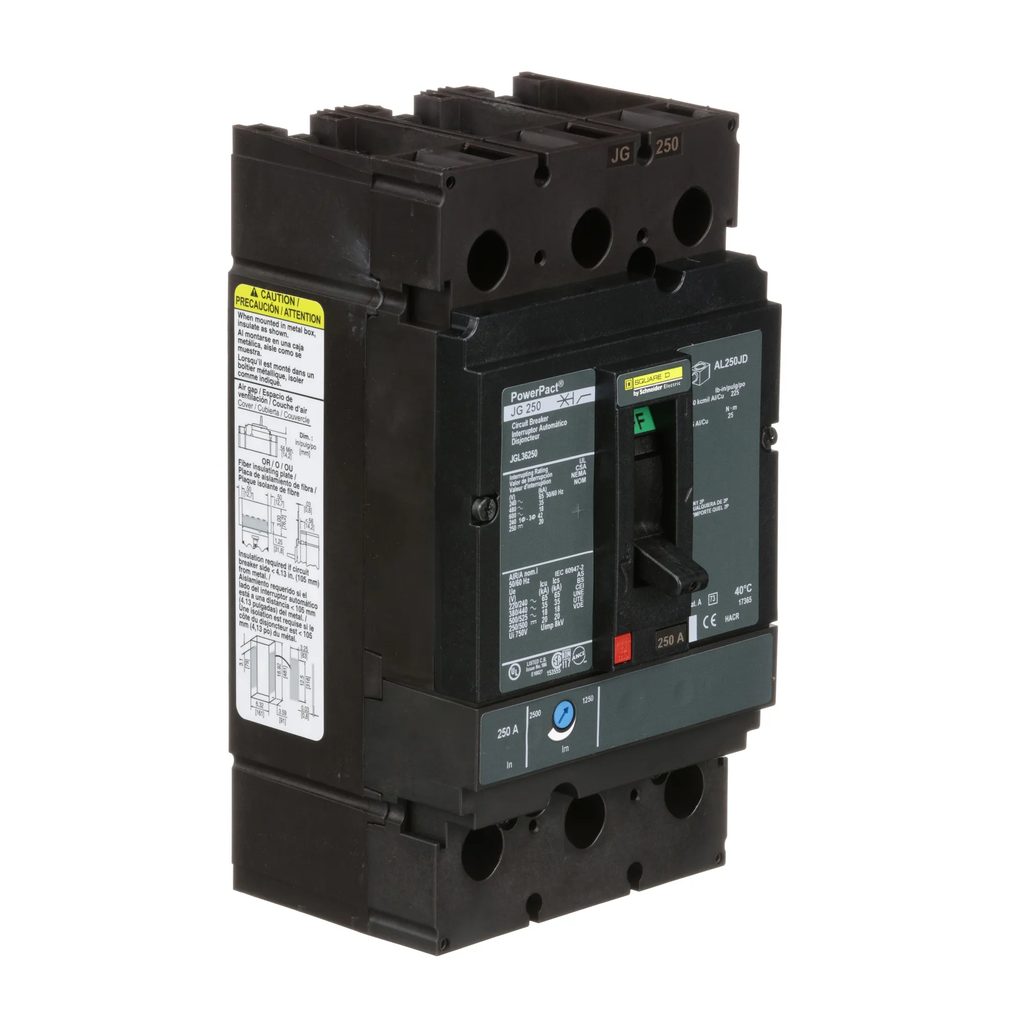

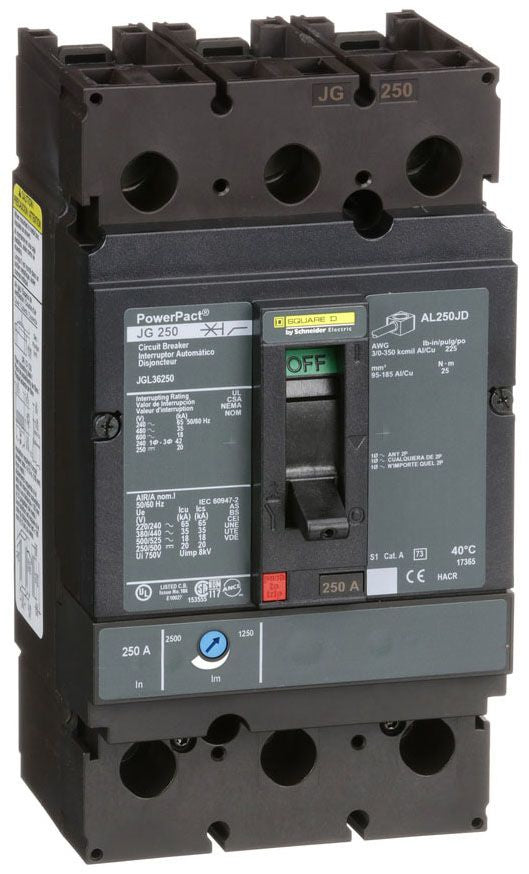

JGL36250

JGL36250 is a 250 Amp, 3-pole, 600 Volt Powerpact J Frame molded case circuit breaker from Square D designed for reliable thermal magnetic protection.This circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions, a 35kA interrupting rating at 480V, and is suitable for feed-thru unit mount applications. It includes lug connections on both line and load sides, supports AWG 4 to 4/0 aluminum or copper wiring, and complies with UL 489 and other certifications. The breaker is designed for overload and short-circuit protection in three-phase electrical systems.

Key Specifications
• Amperage: 250 Amp
• Voltage Rating: 600 Volt AC
• Poles: 3
• Frame Type: Powerpact J Frame
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Interrupt Rating: 35kA at 480V
• Mounting Type: Unit Mount (Feed-Thru)
• Connection: Lug line and load terminals
• Continuous Current Rating: 80%
• Magnetic Hold Current: 1250 Amp
• Standards: UL 489 Listed, CSA, NOM, IEC CCC, UKCA, CE marked

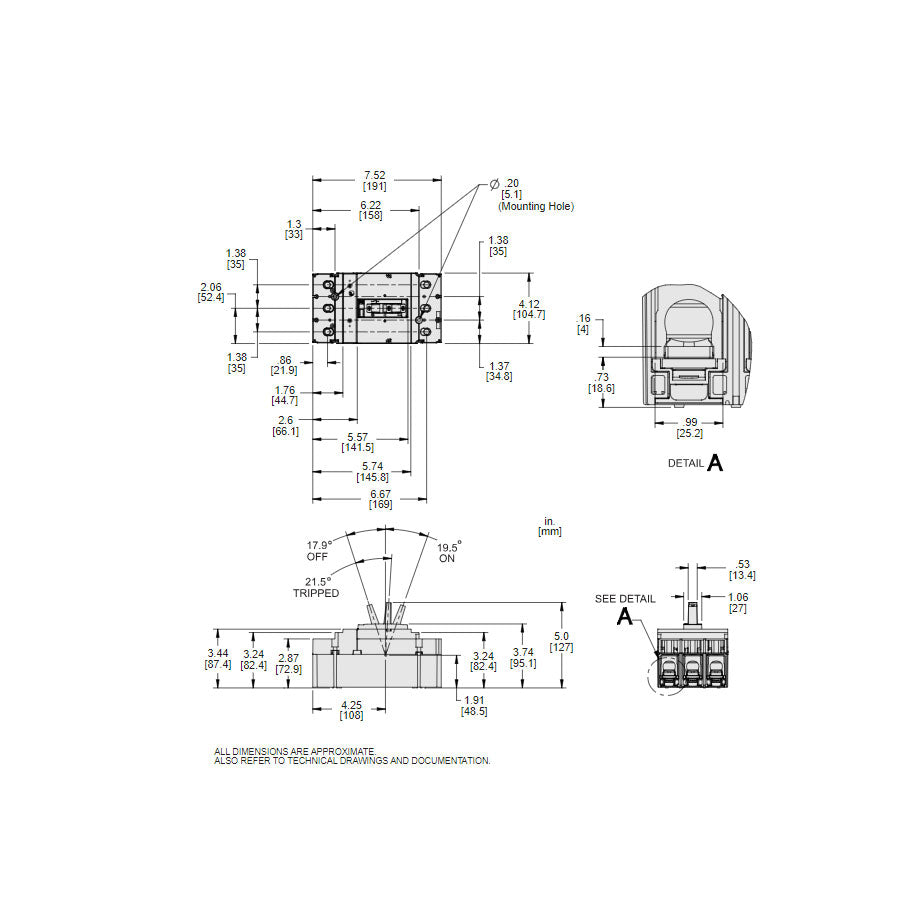

• Dimensions (HxWxD): 7.52" x 4.12" x 5"
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JGL36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JGL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 3 AWG Max. Wire Size 350 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901433897
• GTIN : 00785901433897
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.85
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
