JGL36175SO - Square D 175 Amp 600V 3 Pole J Frame Molded Case Circuit Breaker with Shunt Trip, UL 489 Listed, Unit Mount, G Interrupt Rating

JGL36175SO

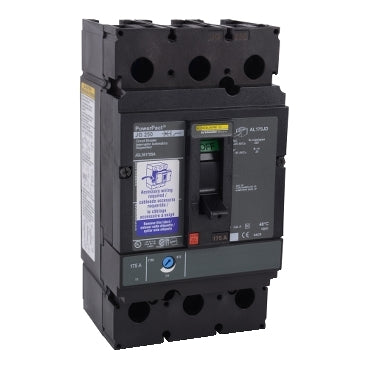

JGL36175SO is a Square D molded case circuit breaker designed for reliable protection in three-phase electrical systems.

This thermal-magnetic trip unit breaker features a 175 amp rating, 600V AC voltage, and three poles for robust circuit protection. It is part of the PowerPact J series, offers a G interrupt rating, and is UL 489 listed for safety and compliance. The unit mount design ensures easy installation, and the shunt trip option provides remote tripping capability for enhanced control.

Key Specifications
• Part Number: JGL36175SO
• Manufacturer: Square D
• Amperage: 175A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Unit mount
• Interrupt Rating: 65 kA at 240V AC, 35 kA at 480V AC, 18 kA at 600V AC (G code)
• Series/Frame: PowerPact J Frame
• Trip Unit: Thermal-magnetic
• Certifications: UL 489, CSA, CE
• Shunt Trip: Yes
• Connection: Lugs line and load

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGL36175SO
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : PowerPacT J
• Type : PowerPacT J
• Voltage : 600VAC
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 65kAIC at 240VAC, 35kAIC at 480VAC
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Circuit Breaker Mounting Style : Unit
• Protection : Thermal Magnetic

Product Data

• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
