JGH3200FAG - Cutler Hammer 200A 600V 3-Pole Series G Molded Case Circuit Breaker

JGH3200FAG

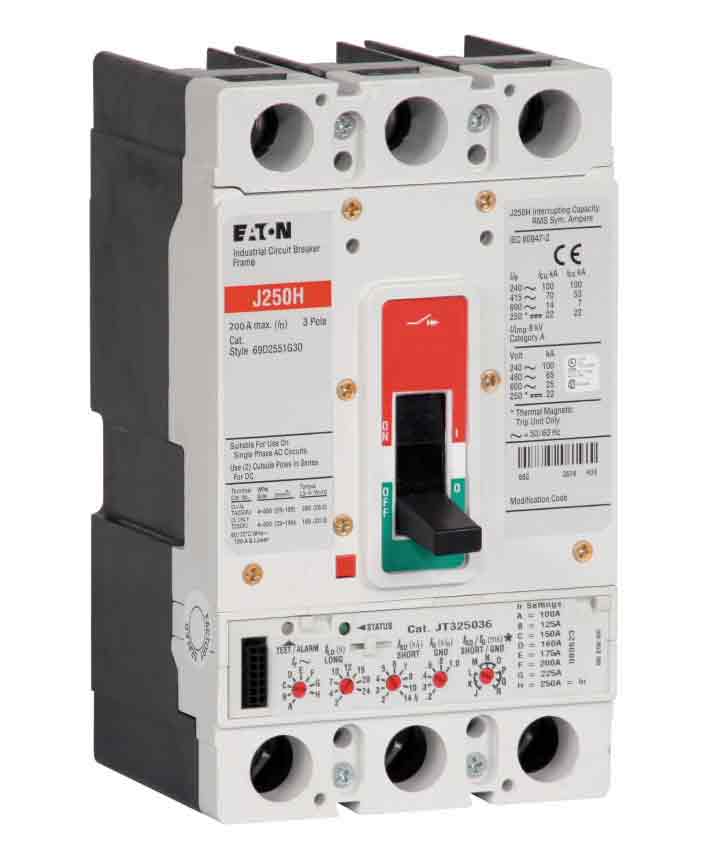

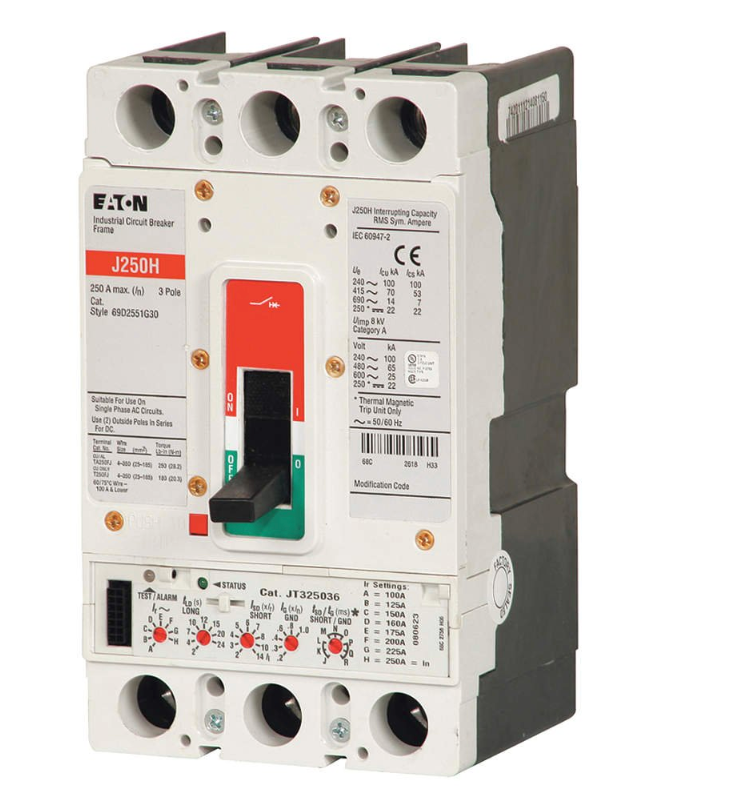

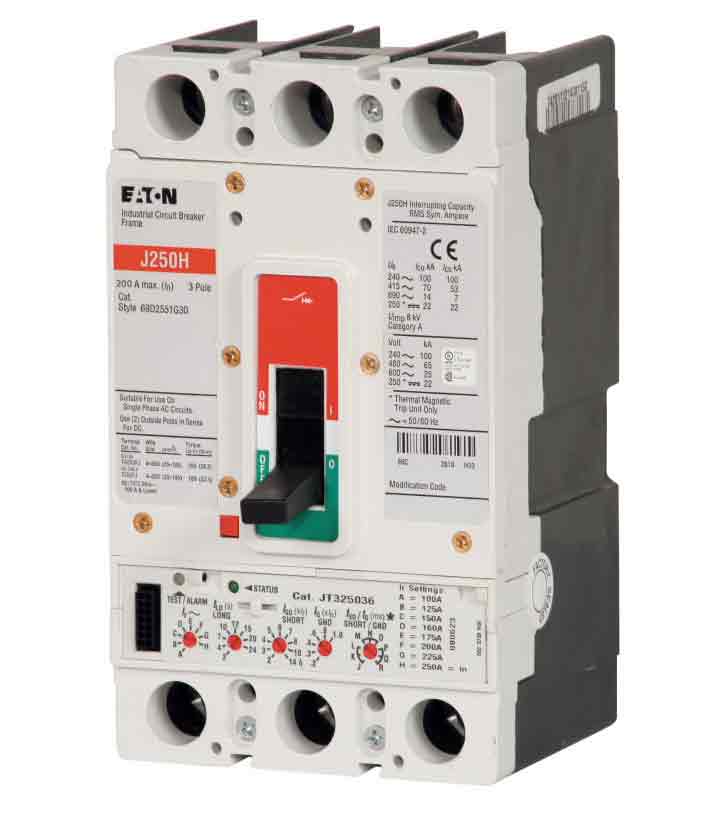

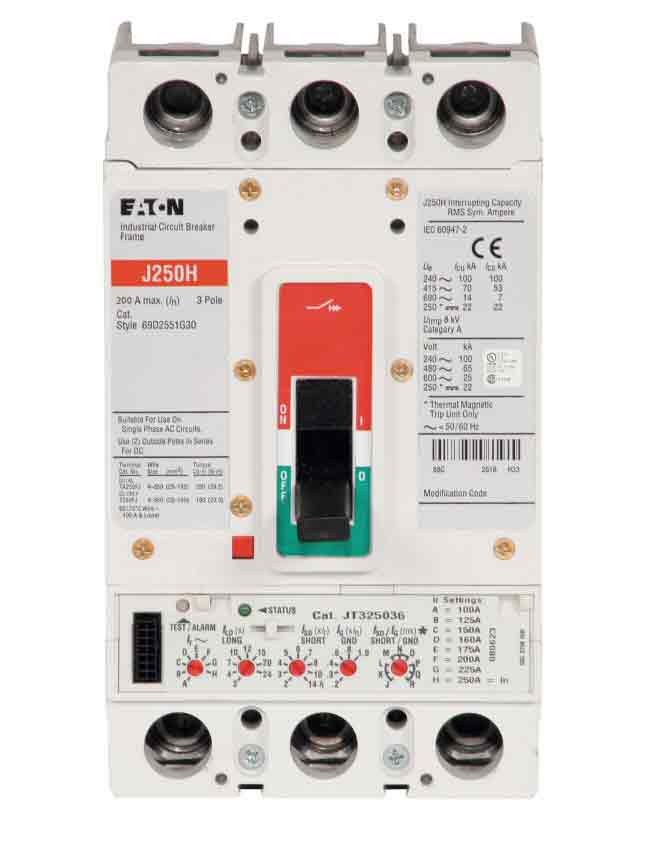

JGH3200FAG is a Cutler Hammer Series G molded case circuit breaker rated for 200 amps and 600 volts with three poles.JGH3200FAG features a JG frame with thermal magnetic trip unit and offers interrupt ratings up to 100 kAIC at 240V. It is designed for bolt-on mounting and provides reliable protection for industrial and commercial electrical systems.

• Amperage: 200 A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 100 kAIC at 240V, 70 kAIC at 415V, 65 kAIC at 480V, 25 kAIC at 600V
• Series/Frame: Series G, JG Frame
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGH3200FAG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : JGH
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782113526850
• GTIN : 00782113526850
• Country of Origin : Dominican Republic
• Dimensions : 3.57 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 6
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
