JGE3250NN - Cutler Hammer 250A 600V 3-Pole JG Frame Molded Case Circuit Breaker Accessory Frame, Series G, Frame Only, No Trip Unit, UL Listed, CSA Certified, IEC Rated

JGE3250NN

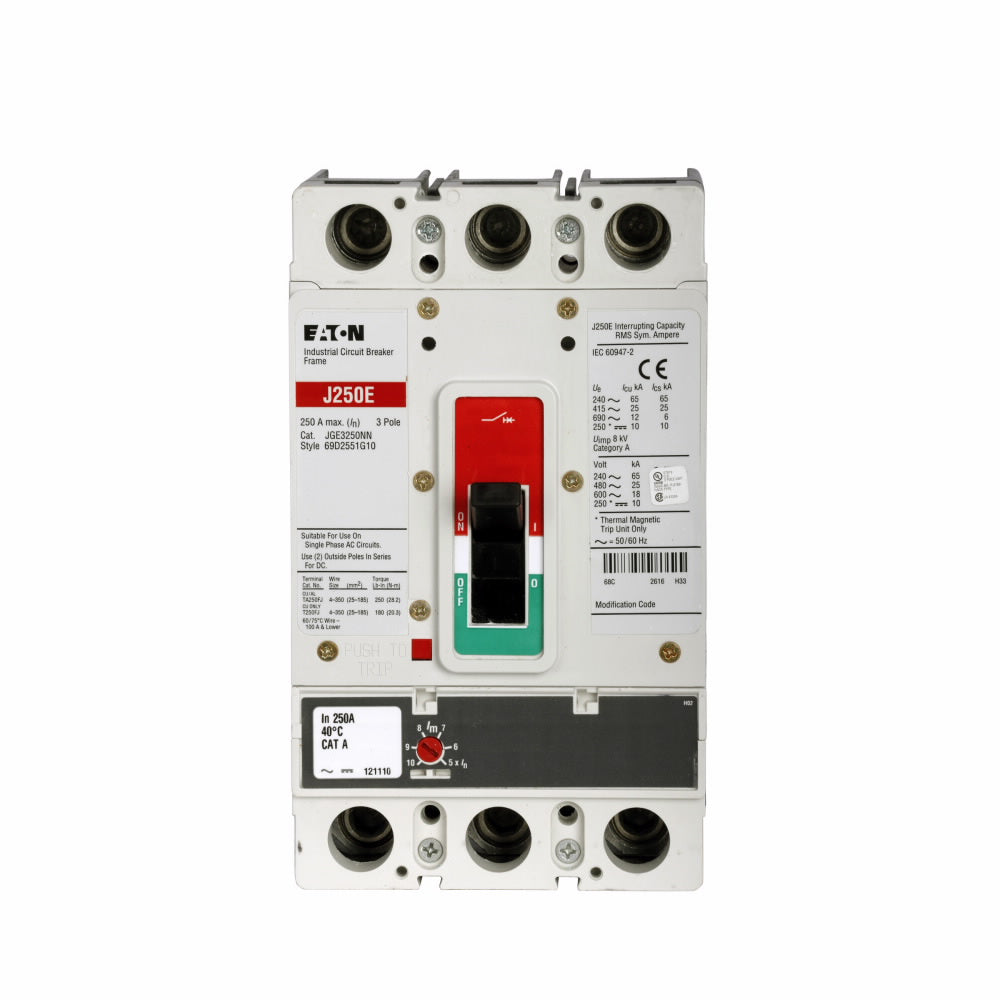

JGE3250NN is a Cutler Hammer (Eaton) molded case circuit breaker accessory frame designed for JG-frame breakers.

This product is a frame-only assembly, suitable for 250A, 600VAC, three-pole applications, and does not include a trip mechanism or terminal lugs. It is part of the Series G lineup, offering robust construction and compatibility with a range of interrupting ratings depending on system voltage. The frame is certified to UL, CSA, and IEC standards for safety and performance.

Key Specifications
• Part Number: JGE3250NN
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 250A
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: Molded case (frame only)
• Interrupt Rating: 65 kAIC at 240V, 25 kAIC at 480V, 18 kAIC at 600V
• Series/Frame: Series G, JG Frame
• Trip Unit: Not included (frame only)
• Certifications: UL Listed, CSA Certified, IEC Rated
• Dimensions: 3.57" L x 4.13" W x 7" H
• Warranty: 1 year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Frame only, Trip unit and lugs not included.

Specifications

• Part Number: JGE3250NN
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : JGE
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782116008612
• GTIN : 00782116008612
• Country of Origin : Dominican Republic
• Dimensions : 3.57 in x 7 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 6 lb
• Certification : CSA Certified,IEC Rated,UL Listed,CE Marked
