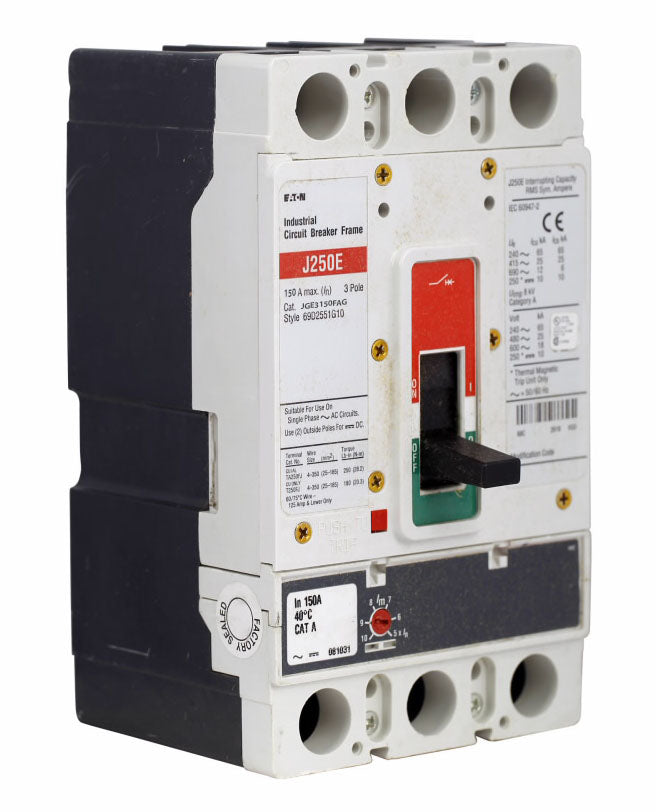

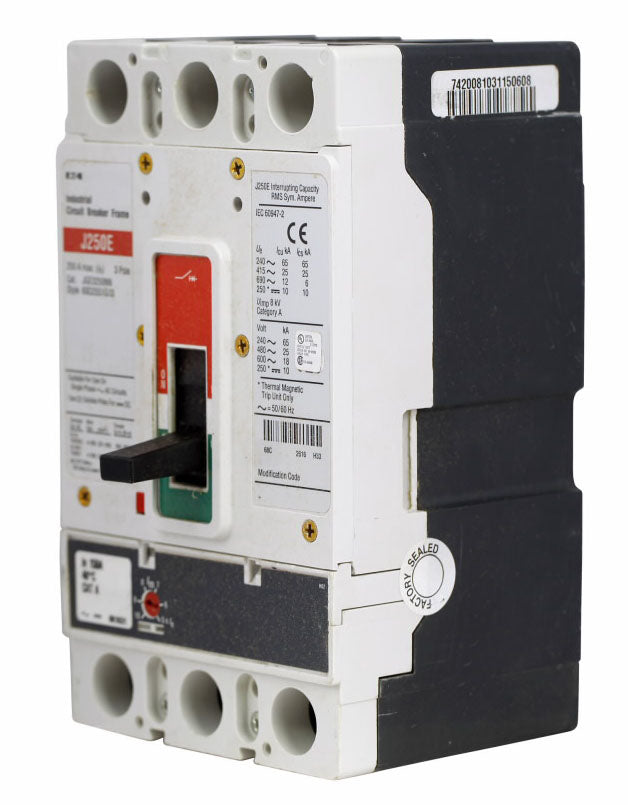

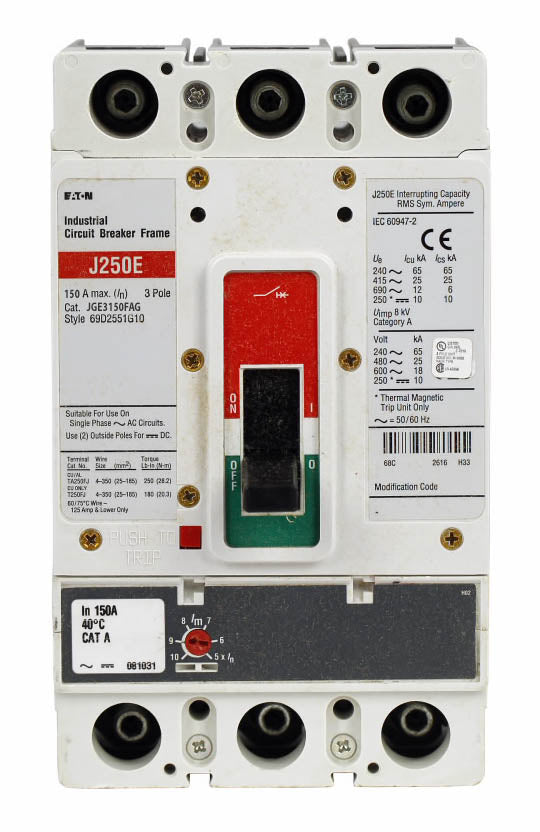

JGE3150FAG - Cutler Hammer Series G Molded Case Circuit Breaker 150A 600V 3P JG-Frame Adjustable Magnetic Fixed Thermal

JGE3150FAG

JGE3150FAG is a Cutler Hammer Series G molded case circuit breaker with 150A current rating, 600V AC, three-pole configuration, and JG-frame design. This breaker features a fixed thermal and adjustable magnetic trip unit for reliable circuit protection in industrial and commercial applications. Engineered for durability and safety, the JGE3150FAG is suitable for use in a wide range of electrical distribution systems. It offers high interrupt ratings at multiple voltages and is designed for metric mounting with line and load connections. The unit is CE marked, CSA certified, IEC rated, and UL listed for compliance with major safety standards.

• Part Number: JGE3150FAG
• Manufacturer: Cutler Hammer
• Series/Frame: Series G, JG-Frame
• Amperage: 150 A
• Voltage: 600 Vac
• Poles: 3
• Interrupt Rating: 65 kAIC at 240 Vac, 25 kAIC at 480 Vac, 18 kAIC at 600 Vac
• Mounting Type: Metric, Line and Load
• Trip Unit: Fixed Thermal, Adjustable Magnetic
• Frequency: 50/60 Hz
• Certifications: CE Marked, CSA Certified, IEC Rated, UL Listed
• Rated: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JGE3150FAG
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : JGE
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 782113526713
• GTIN : 00782113526713
• Country of Origin : Dominican Republic
• Dimensions : 9.5 in x 6.5 in x 5 in (Length/Depth x Height x Width)
• Weight : 5
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
