Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

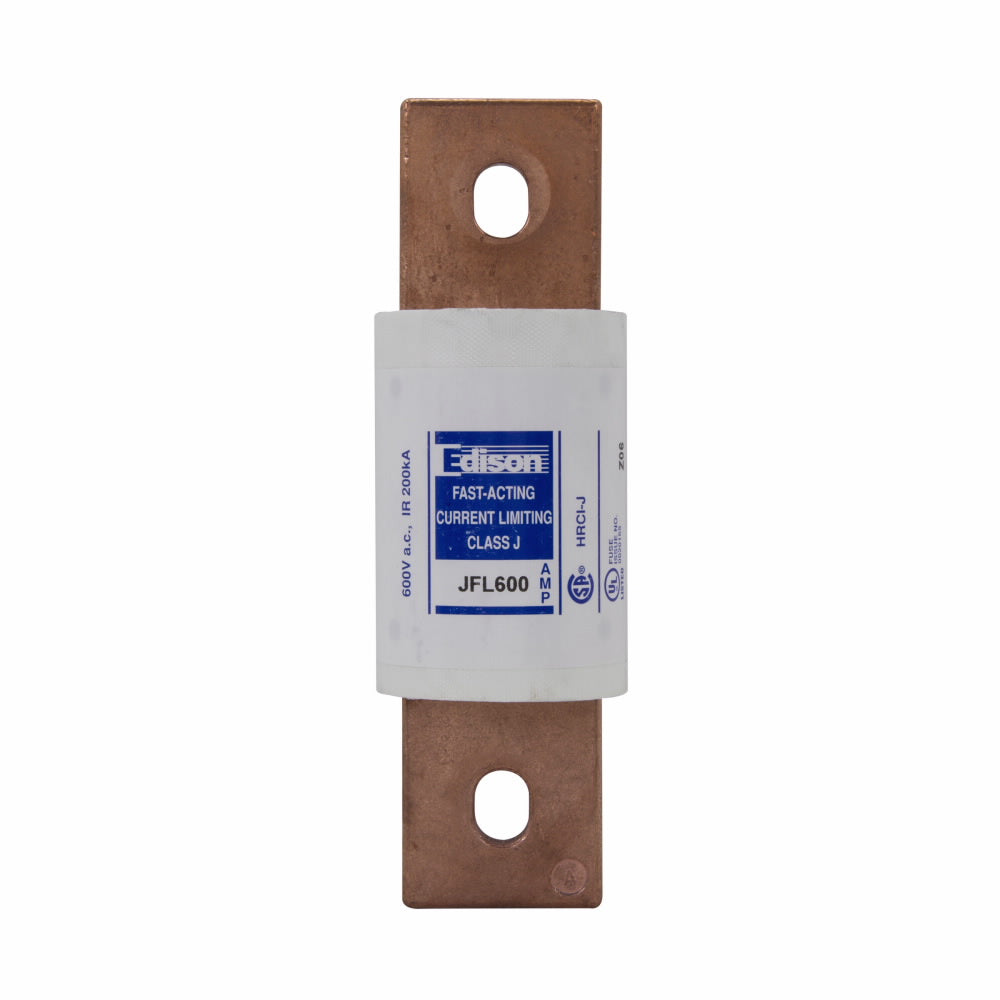

JFL600
JFL600 is a 600A, 600V Class J low voltage fuse from Edison Fuses designed for reliable circuit protection.This single-pole, current-limiting fuse features a 200kA interrupting rating at 600 volts, providing superior short-circuit protection and safeguarding low interrupting capacity circuit breakers. It has a barrel diameter of approximately 2.5 inches and is UL and CSA certified for safety and performance.
- Amperage: 600A
- Voltage Rating: 600V AC
- Poles: 1
- Interrupting Rating: 200kA at 600V
- Fuse Type: Class J
- Mounting: Barrel style
- Diameter: 2.5 inches
- Certifications: UL, CSA C22.2
- Current Limiting: Yes
- Manufacturer: Edison Fuses
Specifications
- Part Number: JFL600
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JFL
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.5
- Class Rating : J
- Barrels : 1
- Clip Center : 6
Product Data
- UPC : 78263480908
- GTIN : 00782634809081
- Dimensions : 8 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 3.22
