Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

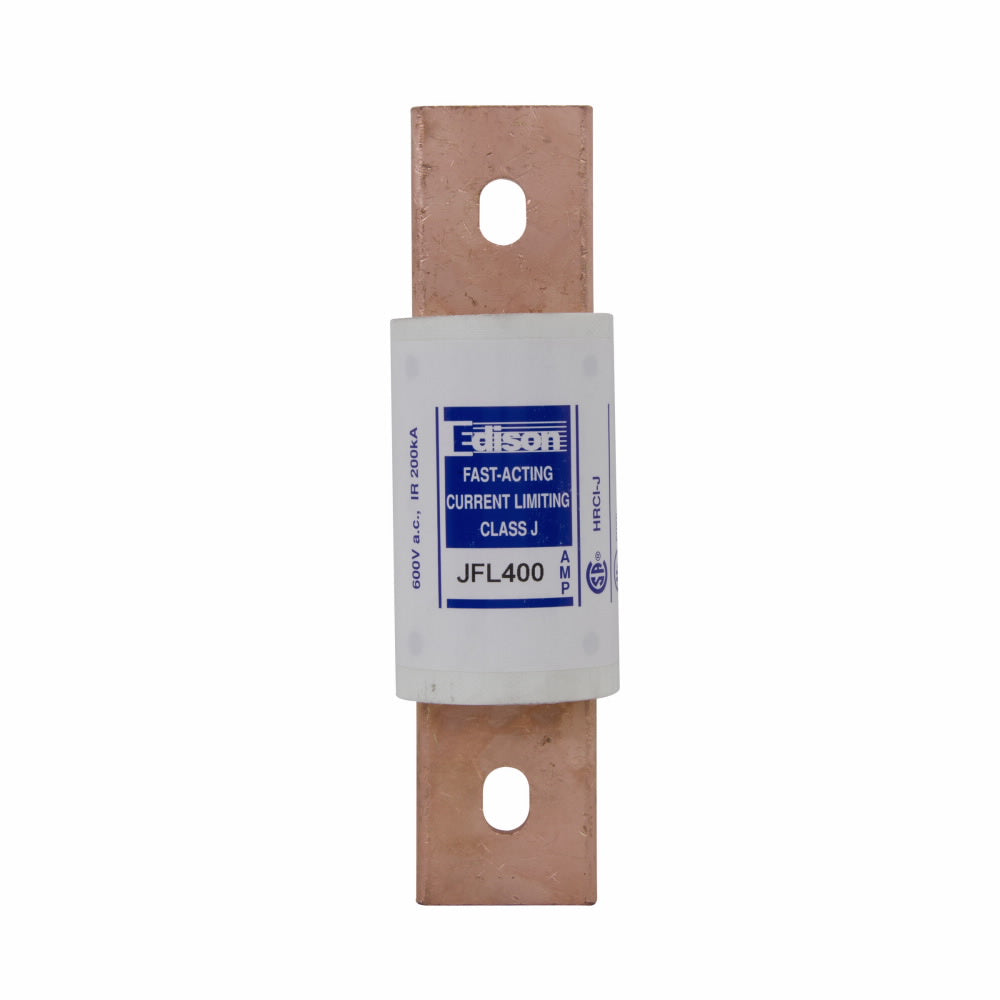

JFL400
JFL400 is a 400 amp, 600 volt Class J low voltage fast acting fuse from Edison Fuses designed for reliable circuit protection.JFL400 features a single barrel design with a 2-inch diameter, a 200kA interrupting rating at 600V, and is suitable for protecting low interrupting capacity circuit breakers. This fuse is quick-acting and current limiting, ensuring superior short-circuit protection in industrial and commercial electrical systems.
- Amperage: 400A
- Voltage Rating: 600V
- Fuse Type: Class J
- Poles: 1 (single barrel)
- Mounting Type: Cartridge style
- Interrupt Rating: 200kA at 600V
- Response Time: Fast acting
- Diameter: 2 inches
- Series/Frame: Edison JFL series
- Certifications: UL Listed
Specifications
- Part Number: JFL400
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JFL
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2
- Class Rating : J
- Barrels : 1
- Clip Center : 5.25
Product Data
- UPC : 78263480905
- GTIN : 00782634809050
- Dimensions : 7.13 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 1.78
