Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

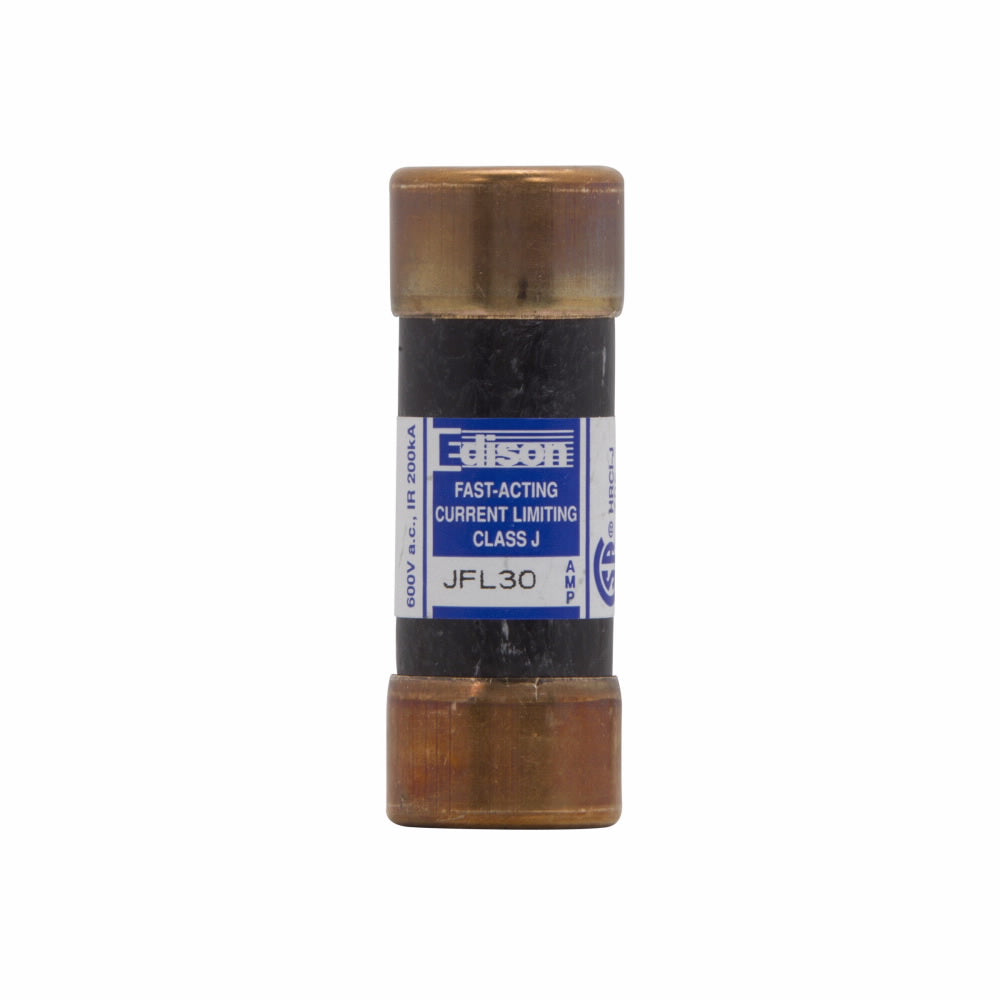

JFL30
JFL30 is a 30 amp, 600 volt Class J low voltage fuse from Edison Fuses designed for fast acting protection.This JFL30 fuse features a 1 barrel design with a diameter of 0.81 inches and an interrupt rating of 200kA at 600 volts. It is a current-limiting, quick-acting fuse suitable for protecting electrical circuits against overloads and short circuits. The fuse meets UL and CSA C22.2 certifications and is part of the Edison JFL series.
- Amperage: 30A
- Voltage Rating: 600V AC
- Fuse Type: Class J
- Interrupt Rating: 200kA at 600V
- Response Time: Fast Acting
- Physical Diameter: 0.81 inches
- Poles: 1 Barrel
- Certifications: UL, CSA C22.2
- Series: Edison JFL
- Mounting Type: Standard fuse holder
Specifications
- Part Number: JFL30
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JFL
- Voltage : 600
- Amperage : 30
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 078263480888
- GTIN : 00782634808886
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.11
