Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Enclosure
Description
JFDN225

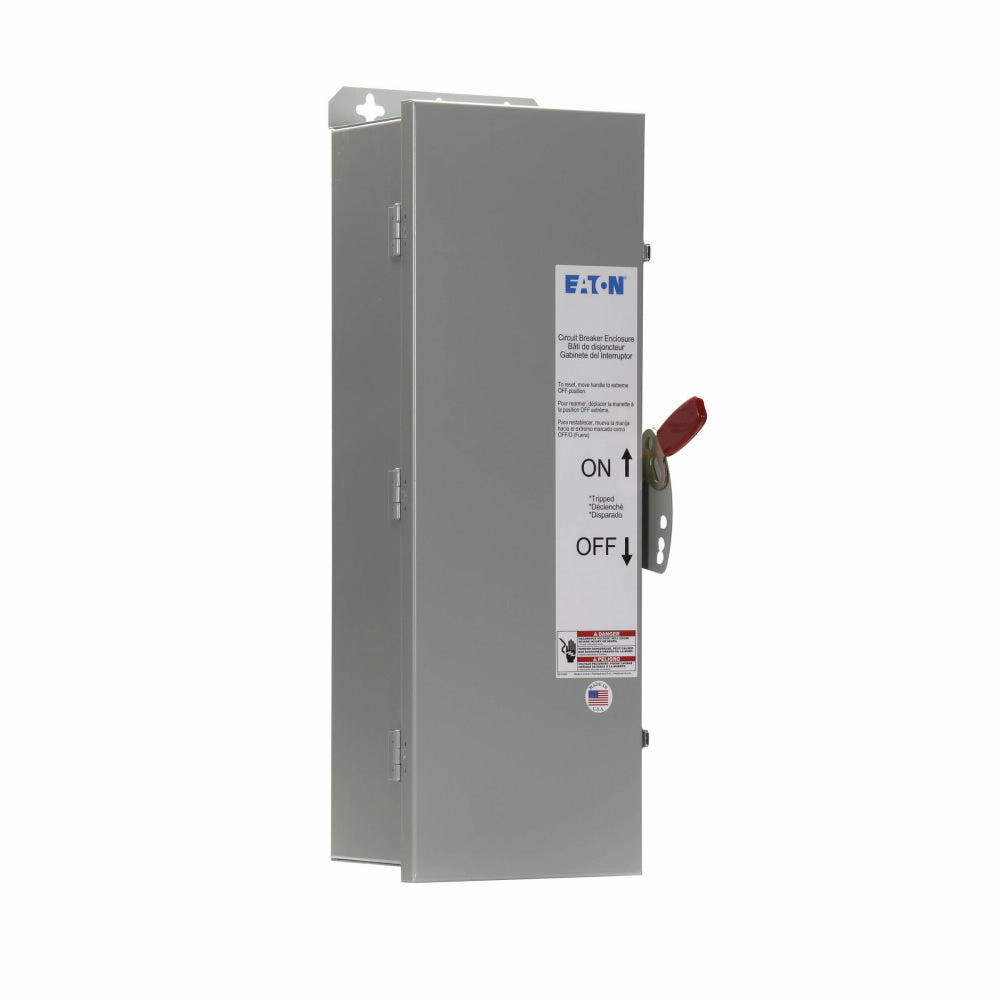

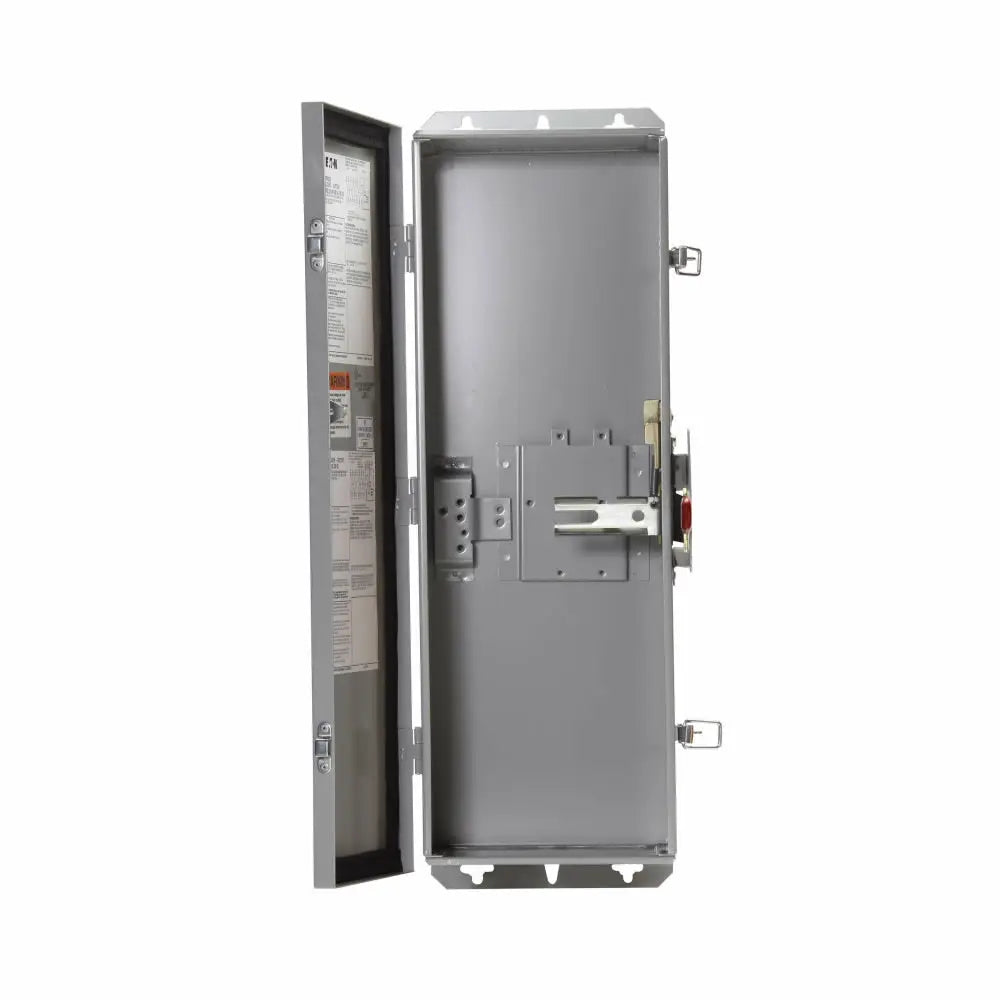

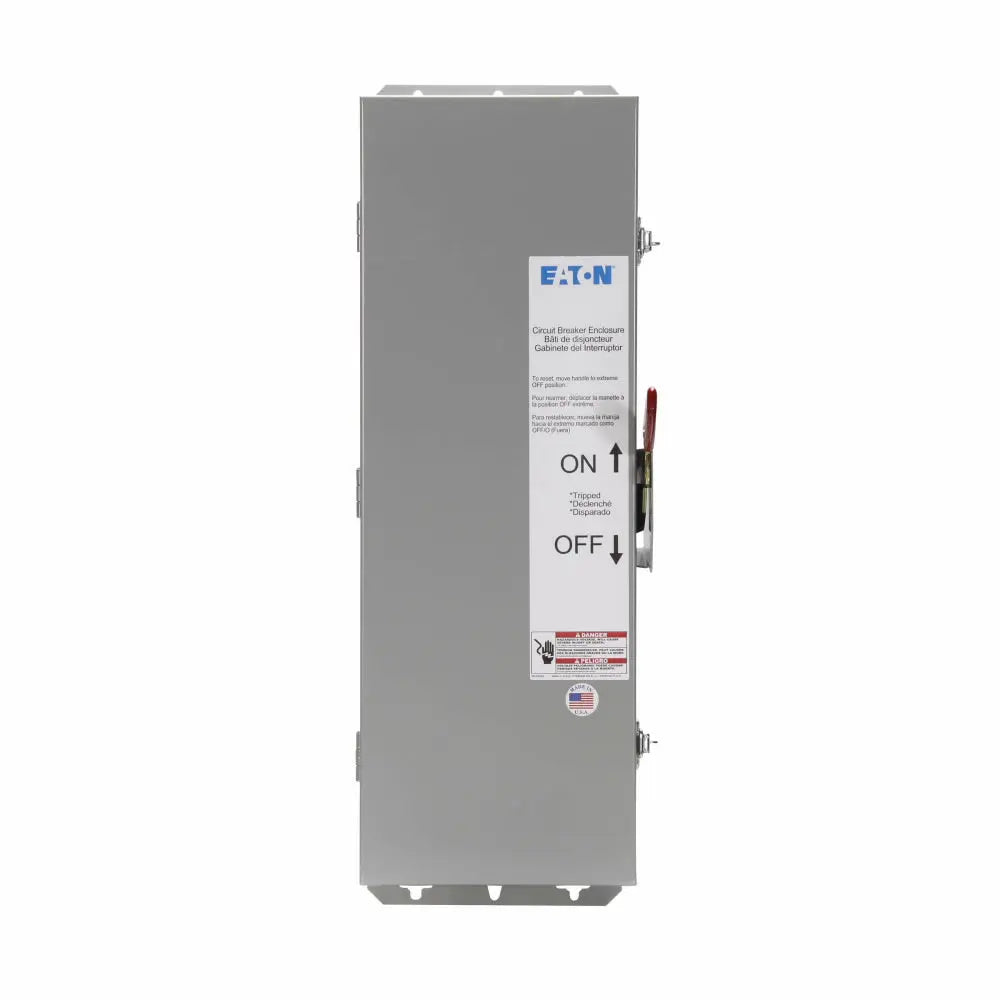

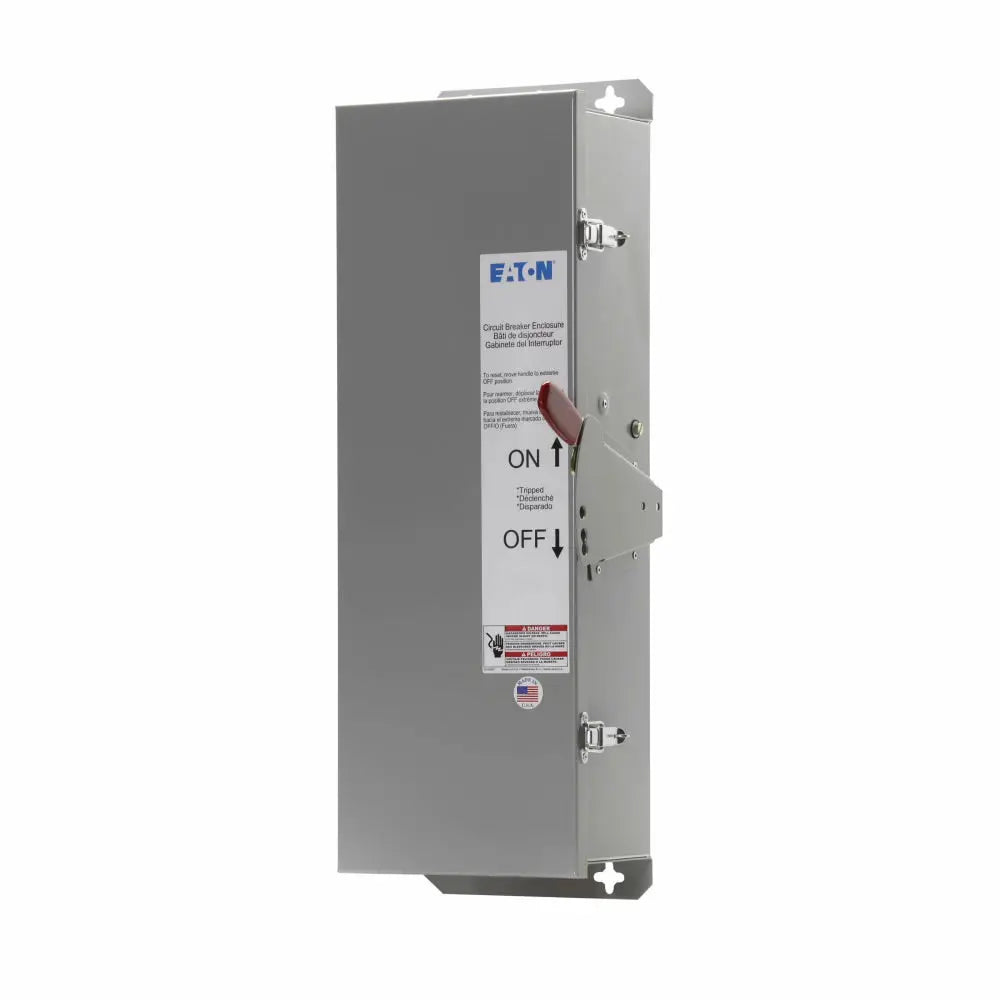

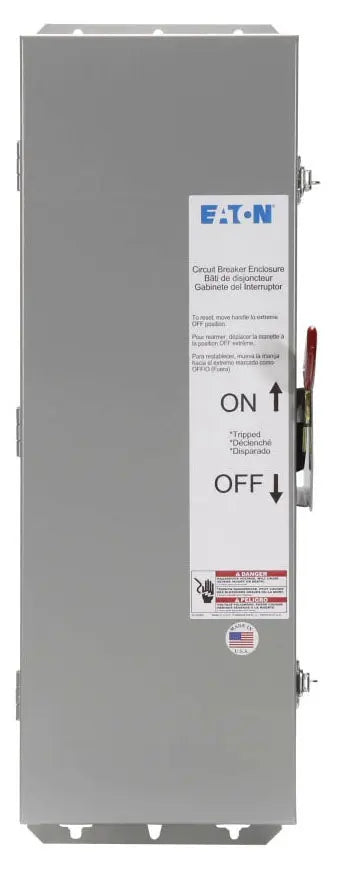

JFDN225 is a 3 Pole circuit breaker enclosure designed for use with FD/FDB/FDC/HFD/ED/EDH/EDC series breakers, providing durable protection for industrial and commercial applications. This Cutler Hammer JFDN225 enclosure features a stainless steel construction and is rated for 225 amps and 600 volts AC, making it suitable for demanding environments. The surface mount design allows for easy installation, and the NEMA 12 rating ensures protection against dust, dirt, and non-corrosive liquids. It is compatible with a range of molded case circuit breakers for flexible system integration.
- Part Number: JFDN225
- Manufacturer: Cutler Hammer
- Current Rating: 225A
- Voltage Rating: 600V AC
- Poles: 3 Pole
- Mounting Type: Surface Mount
- Enclosure Material: Stainless Steel
- Enclosure Rating: NEMA 12
- Compatible Breakers: FD/FDB/FDC/HFD/ED/EDH/EDC
- Interrupt Rating: 10,000A at 600V AC
- Series: JFDN
- Application: Industrial, Commercial
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: JFDN225
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Family : Series C
- Type : JFDN
- Voltage : 600
- Amperage : 225
- Nema Rating : 12
- Compatible Frames : FDB,FD,HFD,FDC,FDE,HFDE,FDCE,FG
Product Data
- UPC : 786679002353
- GTIN : 00786679002353
- Country of Origin : United States
- Dimensions : 9.31 in x 10 in x 9.16 in (Length/Depth x Height x Width)
- Weight : 19
- Certification : UL Listed,CSA Certified
