Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

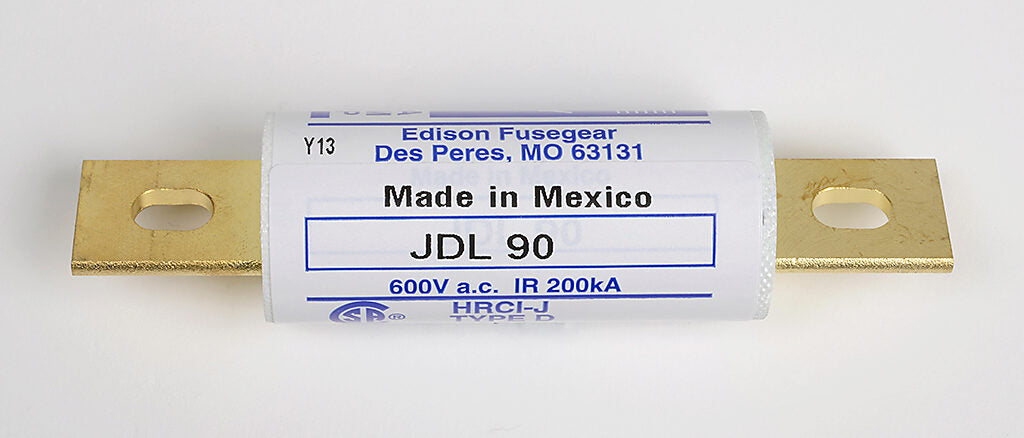

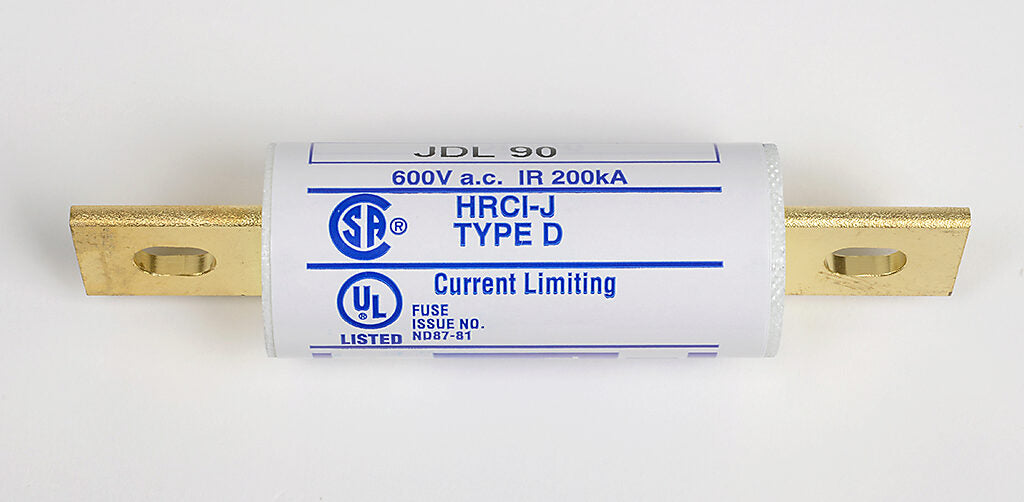

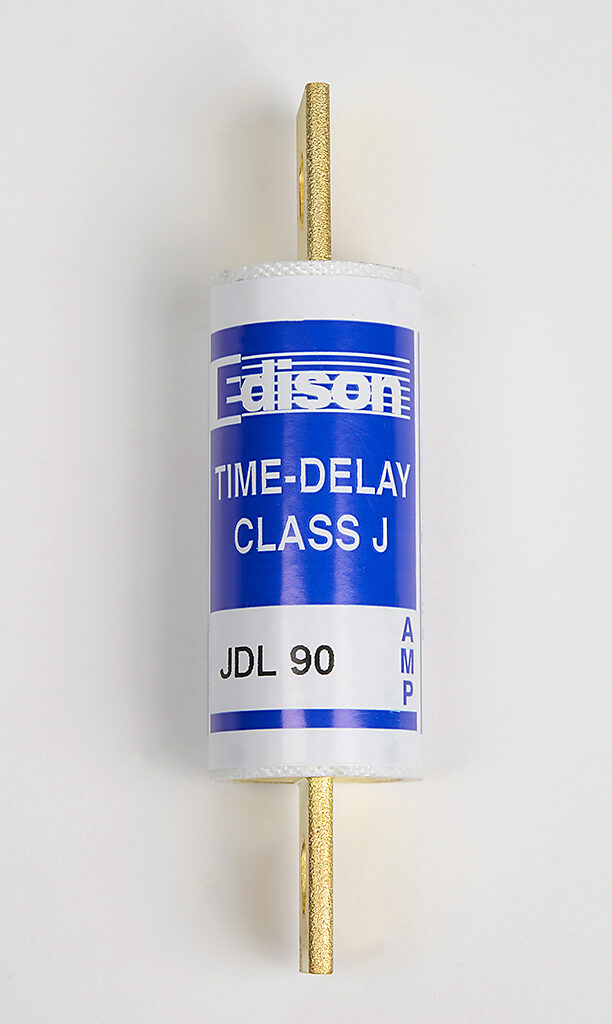

JDL90
JDL90 is a 90 Amp, 600 Volt Class J time-delay fuse from Edison Fuses designed for reliable circuit protection.This fuse features a dual-element, current-limiting design with a minimum 10-second time delay at 500% overload, minimizing nuisance openings from temporary overloads. It is rated for 200,000 amperes interrupting capacity (AIC) and is UL and CSA certified for safety and performance. The fuse uses a bolt-in blade mounting type and is suitable for feeder and branch circuit protection in industrial and commercial applications.
- Amperage: 90 Amp
- Voltage Rating: 600 VAC
- Fuse Type: Class J, Time-Delay
- Interrupt Rating: 200 kAIC
- Mounting Type: Bolt-In Blade
- Dual-Element, Current-Limiting
- UL and CSA Certified
- Non-Indicating
- Series: JDL
- Dimensions: Approx. 1.13 inch diameter, 4.63 inch length
Specifications
- Part Number: JDL90
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 90
- AIC rating : 300kA@600Vac
- Connection : Bolt-In Blade
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 782634803485
- GTIN : 00782634803485
- Dimensions : 4.63 in x 1.13 in x 1.13 in (Length/Depth x Height x Width)
- Weight : 1
