Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL80

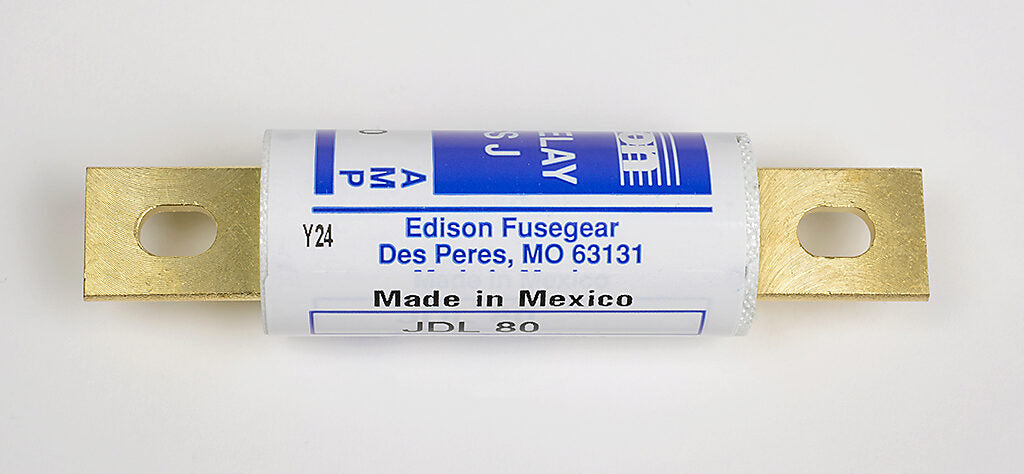

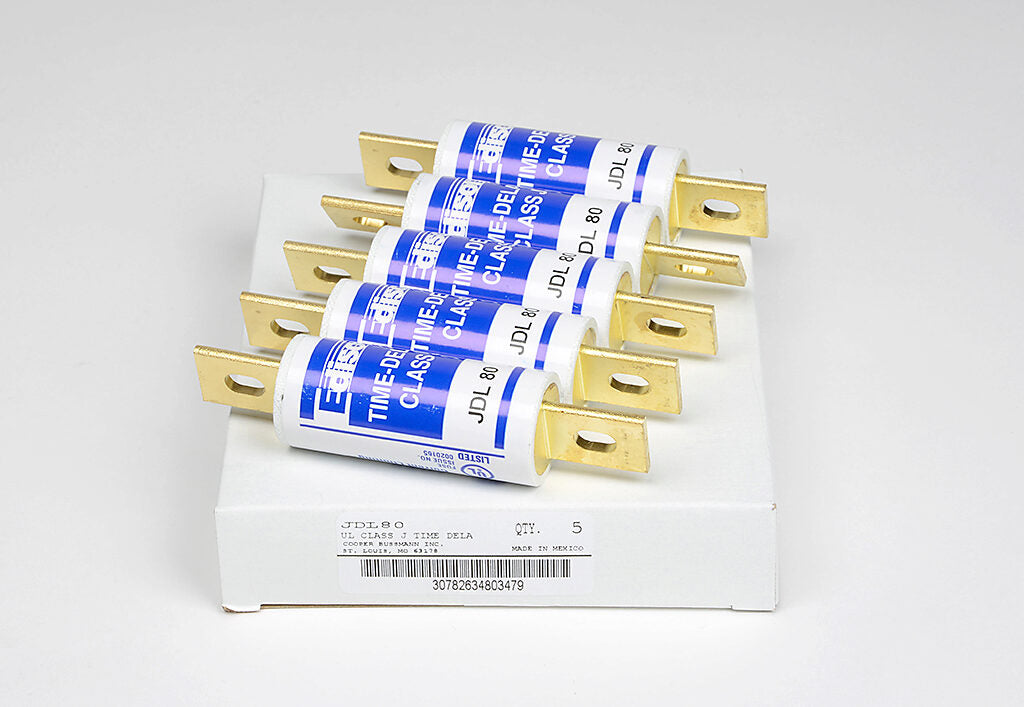

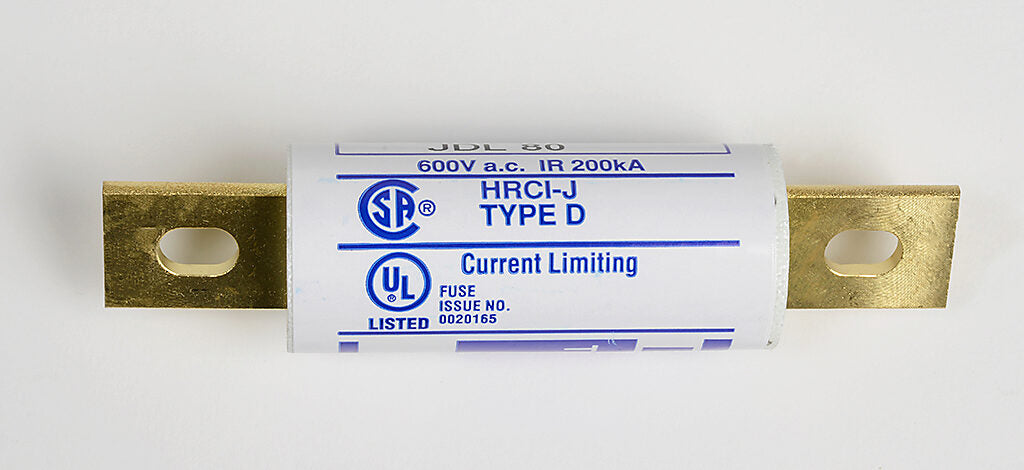

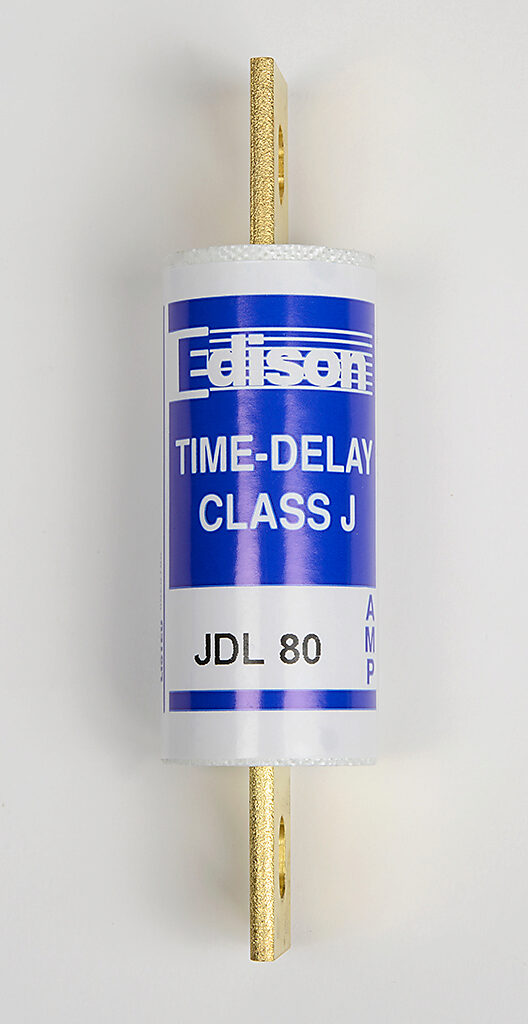

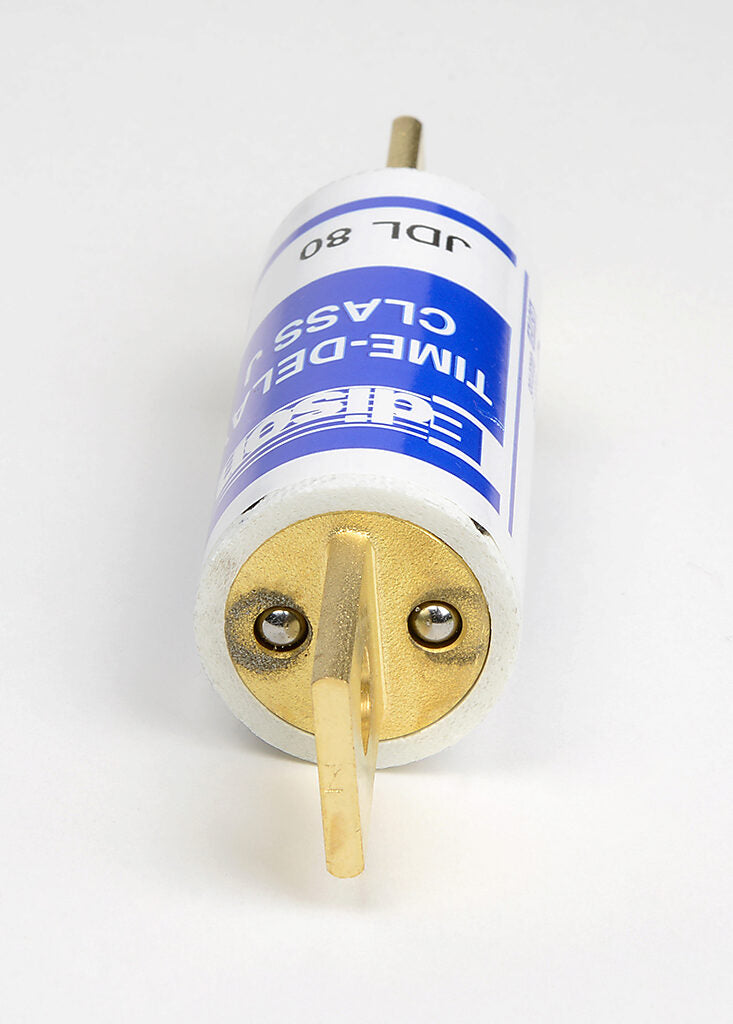

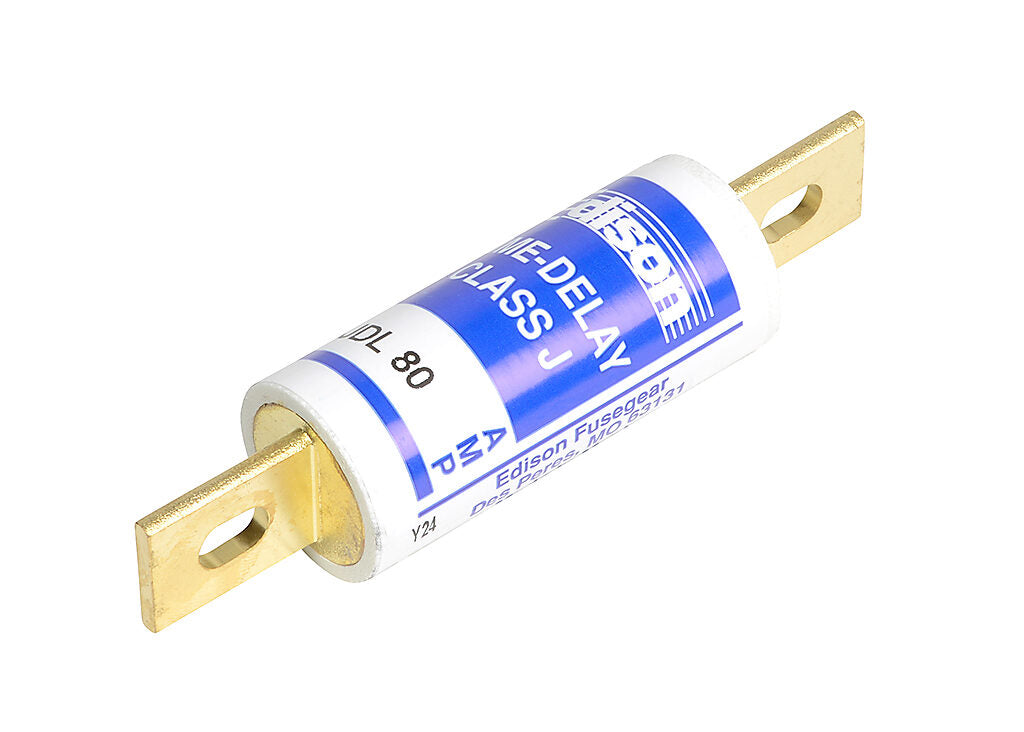

JDL80 is an Edison Fuses 80 amp, 600 volt Class J time delay fuse designed for low voltage applications.This fuse features a 1-barrel cartridge design with a diameter of 1.13 inches and provides a current-limiting, time-delay function suitable for feeder and branch circuit protection. It has an interrupt rating of 200 kAIC at 600 VAC, ensuring high fault current interruption capability. The JDL80 is a non-indicating standard fuse in the Edison JDL series.
- Key Specifications
- Amperage Rating: 80 A
- Voltage Rating: 600 V AC
- Class: J
- Fuse Type: Time Delay (Slow Blow)
- Interrupt Rating: 200 kAIC @ 600 VAC
- Mounting Type: Cartridge Blade
- Element: Dual
- Diameter: 1.13 inches
- Poles: 1
- Series: Edison JDL
- Non-indicating
- Part Number: JDL80
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 80
- AIC rating : 300kA@600Vac
- Connection : Bolt-In Blade
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
- Velocity : D
- UPC : 782634803478
- GTIN : 00782634803478
- Dimensions : 4.63 in x 1.13 in x 1.13 in (Length/Depth x Height x Width)
- Weight : 1
