Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL70

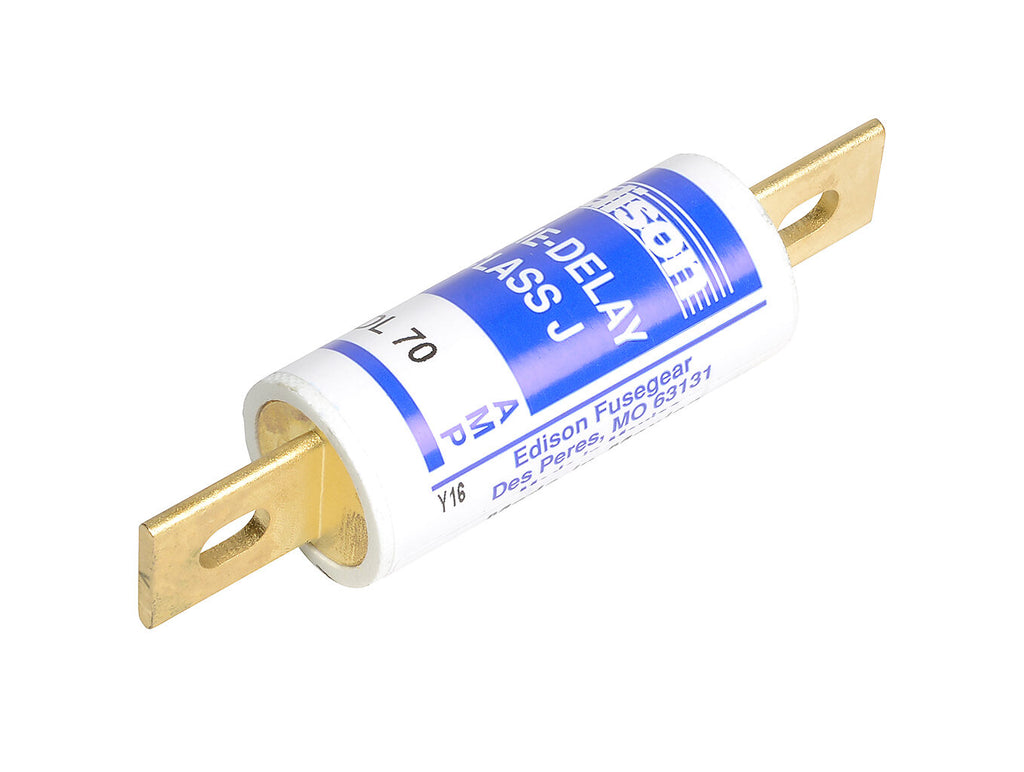

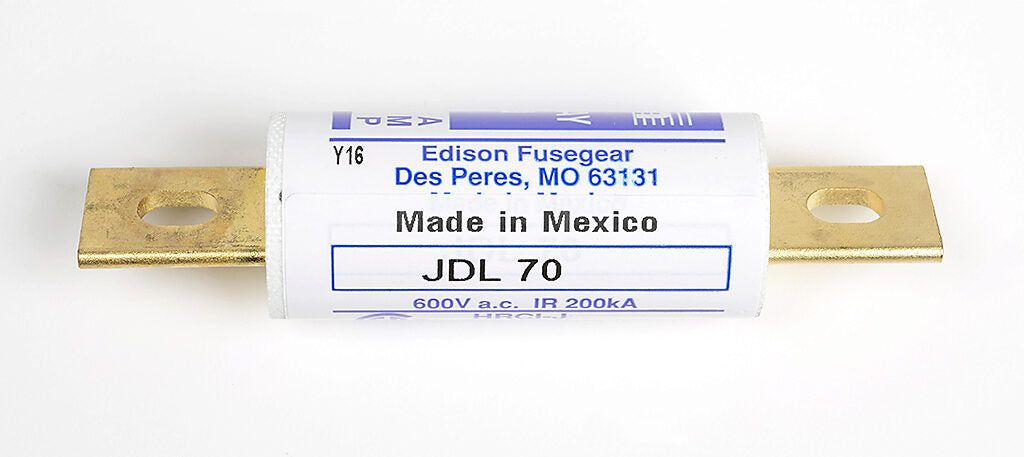

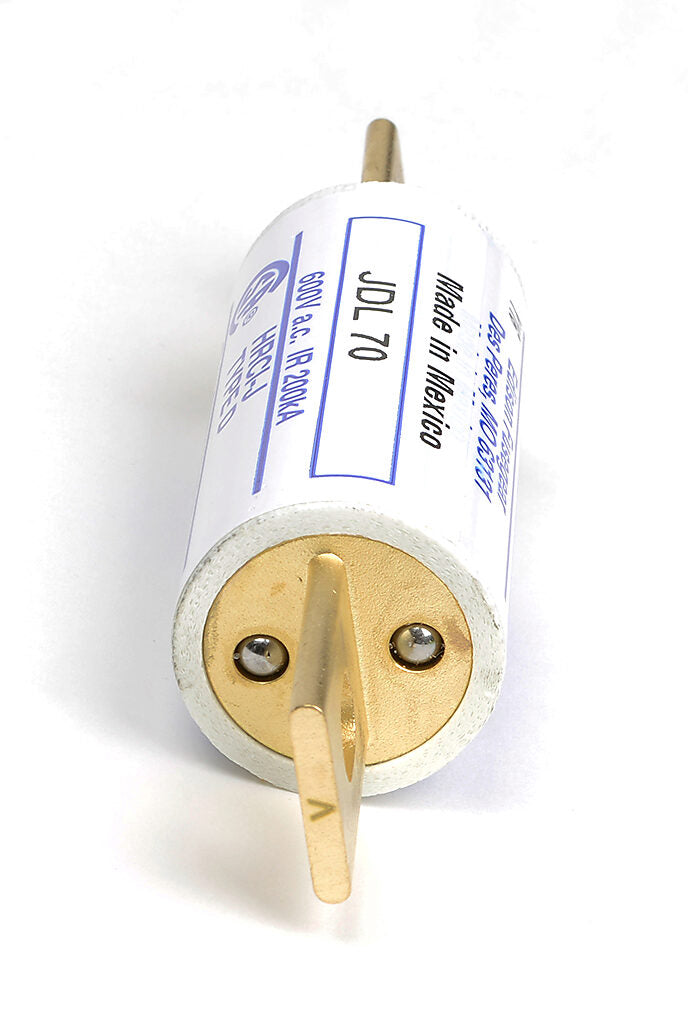

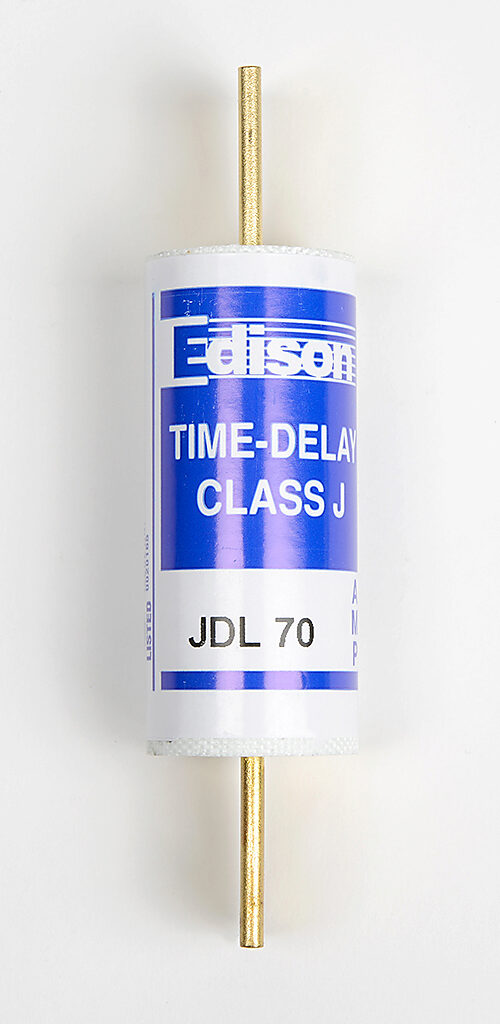

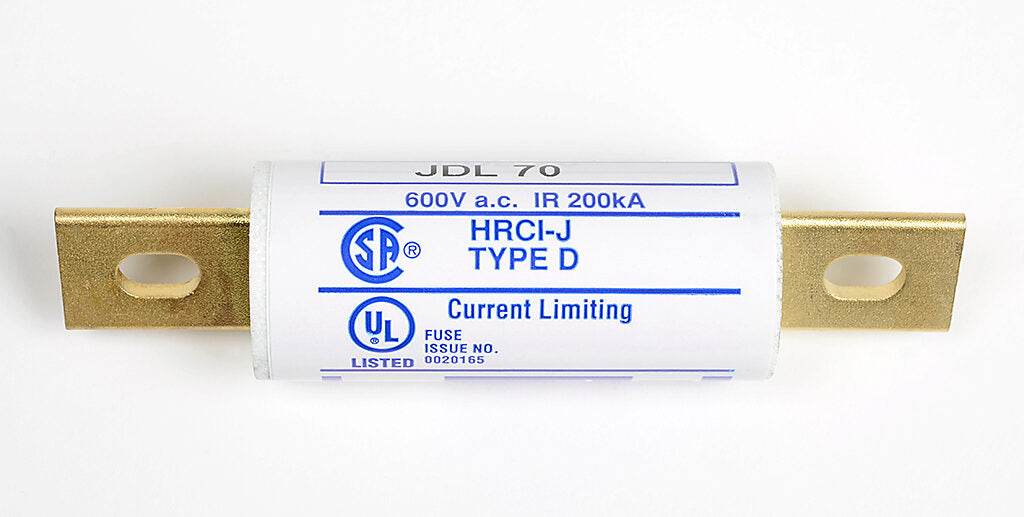

JDL70 is a 70 amp, 600 volt Class J time-delay low voltage fuse from Edison Fuses designed for reliable circuit protection.The JDL70 fuse features a current-limiting, dual-element design with a bolt-in blade connection, providing a 300kA interrupt rating at 600 VAC. It has a 1.13 inch diameter barrel and is UL and CSA certified for feeder and branch circuit protection applications.
- Key Specifications
- Amperage: 70A
- Voltage Rating: 600 VAC
- Fuse Type: Class J, Time-Delay
- Connection Type: Bolt-In Blade
- Interrupt Rating: 300kA at 600 VAC
- Diameter: 1.13 inches
- Length: Approximately 4.63 inches
- Certifications: UL, CSA C22.2
- Series: JDL
- Mounting Type: Knife Blade
Specifications
- Part Number: JDL70
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 70
- AIC rating : 300kA@600Vac
- Connection : Bolt-In Blade
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 782634803461
- GTIN : 00782634803461
- Dimensions : 8 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 1
