Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL60

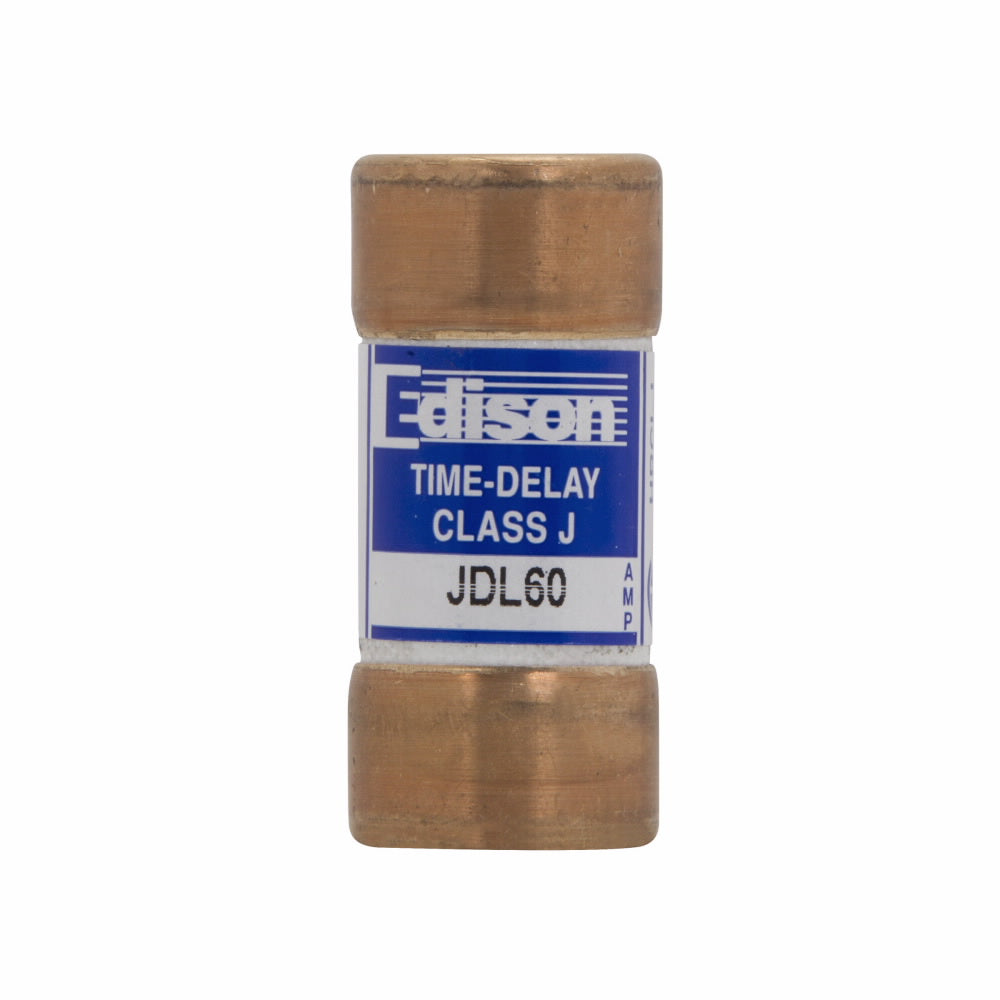

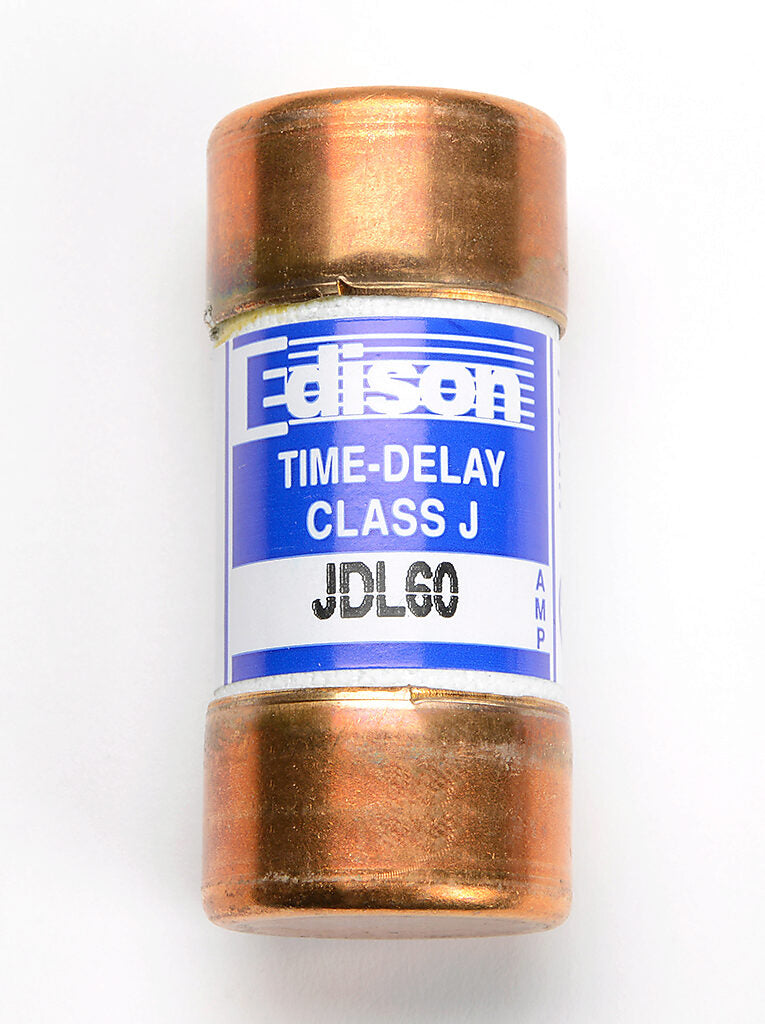

JDL60 is a Class J, time-delay, current-limiting fuse from Edison Fuses, designed for reliable feeder and branch circuit protection in demanding electrical applications.
This non-indicating, dual-element fuse offers a minimum 10-second time-delay at 500% overload, minimizing nuisance trips from temporary overloads and transient surges. It is suitable for backup protection against motor burnout and features a high interrupting rating for enhanced safety. The JDL60 is RoHS compliant, CE marked, and certified by CSA and UL for quality and reliability.
-
Key Specifications
- Part Number: JDL60
- Manufacturer: Edison Fuses
- Category: Fuse
- Amperage: 60A
- Voltage: 600V AC
- Poles: 1
- Mounting Type: Ferrule
- Interrupt Rating: 200kAIC (300kA self-certified)
- Series/Frame: JDL
- Trip Unit: Dual-element, time-delay
- Certifications: CSA, UL Listed, CE, RoHS
- Fuse Indicator: Non-indicating

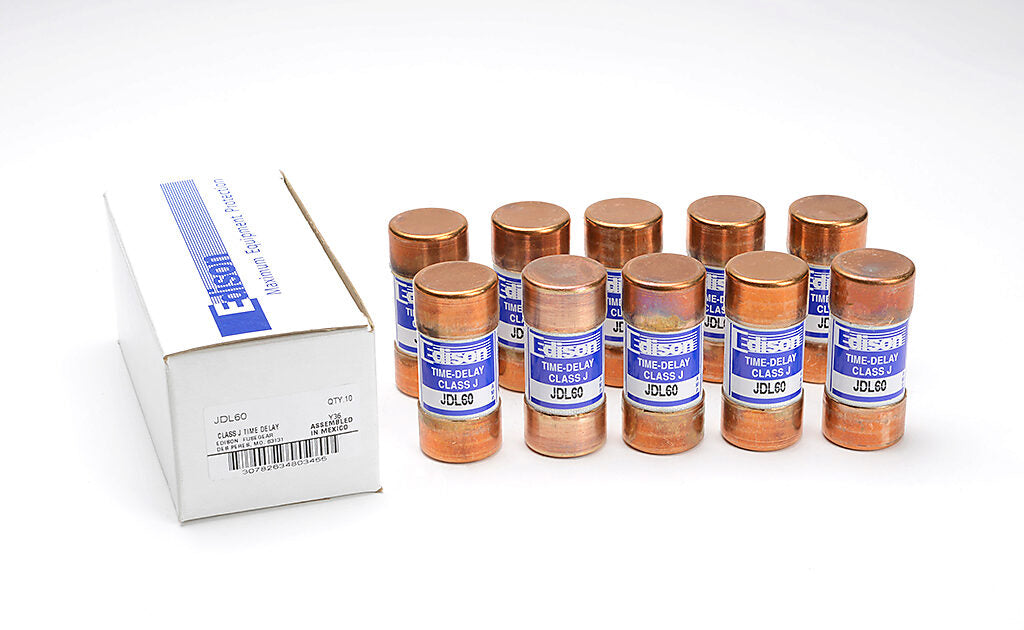

- Packaging: Standard (10 per pack)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JDL60
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 60
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 78263480345
- GTIN : 00782634803454
- Dimensions : 2.38 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
- Weight : 1
