Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL6

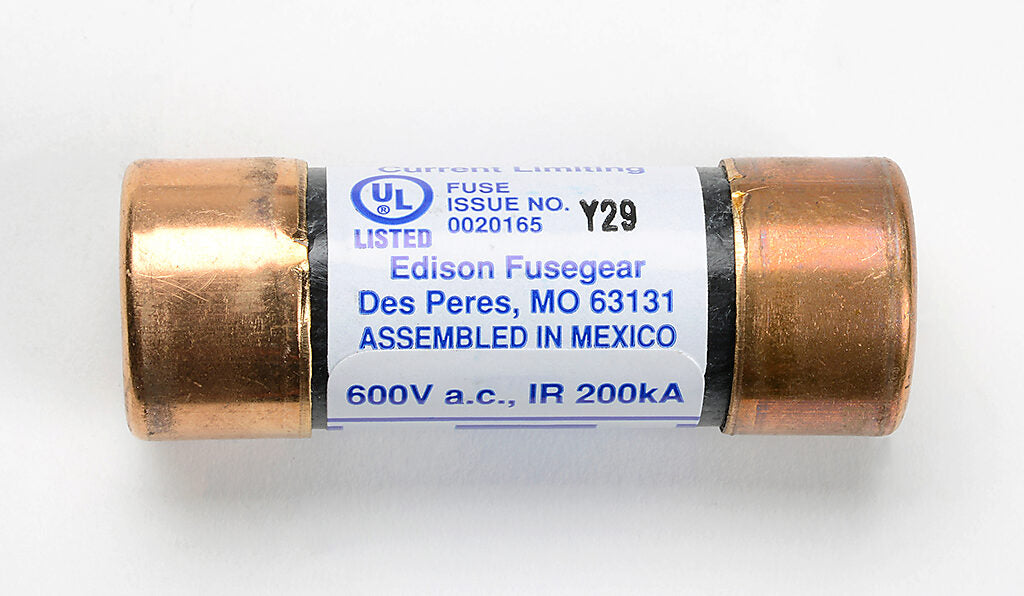

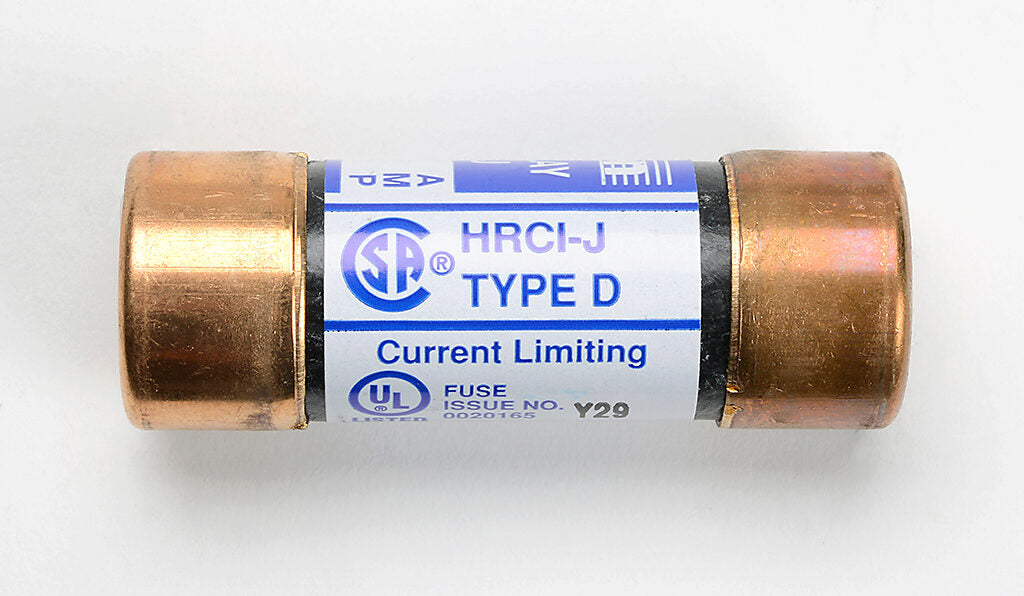

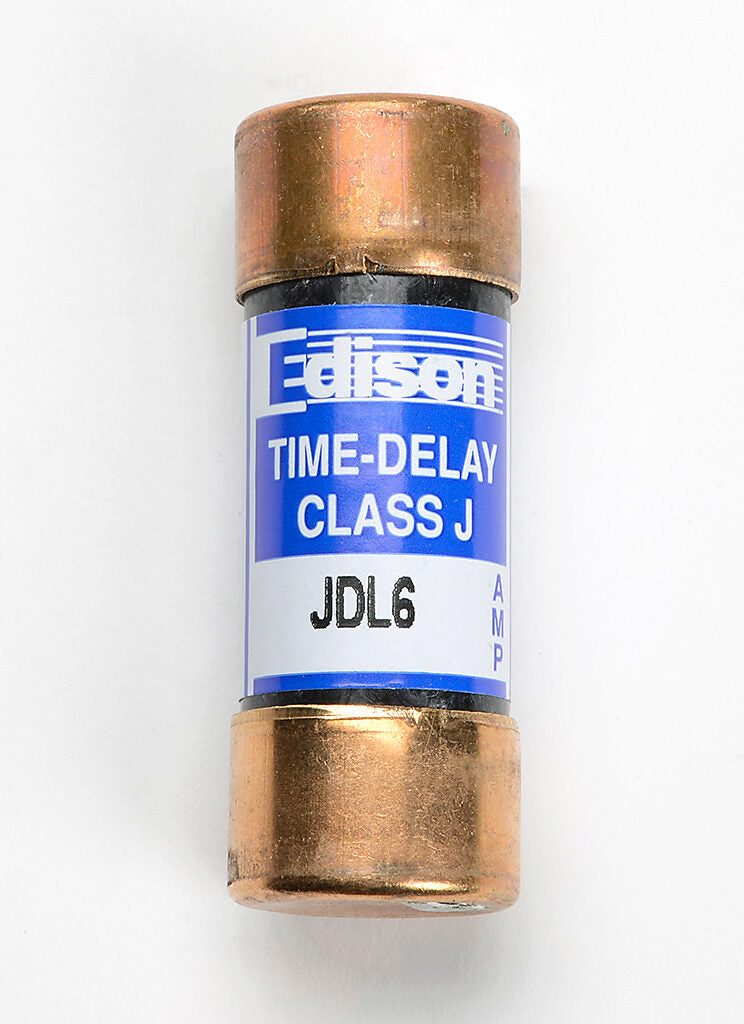

JDL6 is a 6 amp, 600 volt Class J time delay fuse from Edison Fuses designed for low voltage circuit protection.This dual-element, time-delay fuse features a 1-pole barrel design with a diameter of 0.81 inches and a length of approximately 2.25 inches. It has a high interrupting rating of 300kA RMS symmetrical at 600 VAC, self-certified for enhanced safety. The fuse provides a minimum 10-second time delay at 500% overload, minimizing nuisance openings and allowing for motor overload backup protection. It is UL listed, CSA certified, and RoHS compliant.
- Key Specifications
- Amperage: 6 Amps
- Voltage Rating: 600 VAC
- Fuse Type: Class J, Dual Element, Time Delay
- Poles: 1
- Mounting Type: Barrel Fuse
- Interrupting Rating: 300kA RMS Symmetrical (self-certified)
- Diameter: 0.81 inches
- Length: ~2.25 inches
- UL Listed and CSA Certified
- RoHS Compliant
- Part Number: JDL6
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 6
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
- Velocity : D
- UPC : 078263480335
- GTIN : 00782634803355
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1
