Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL50

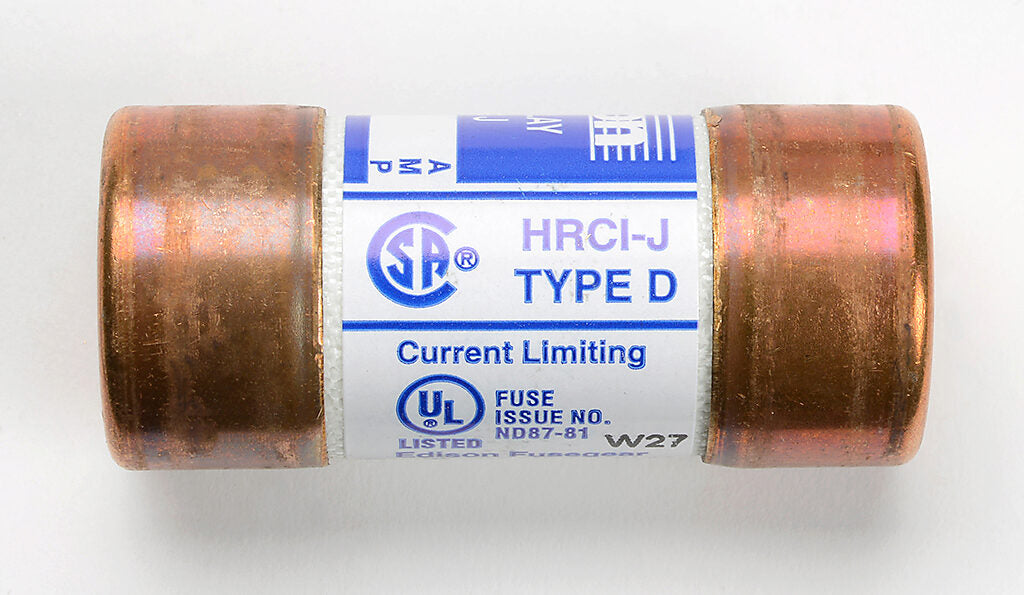

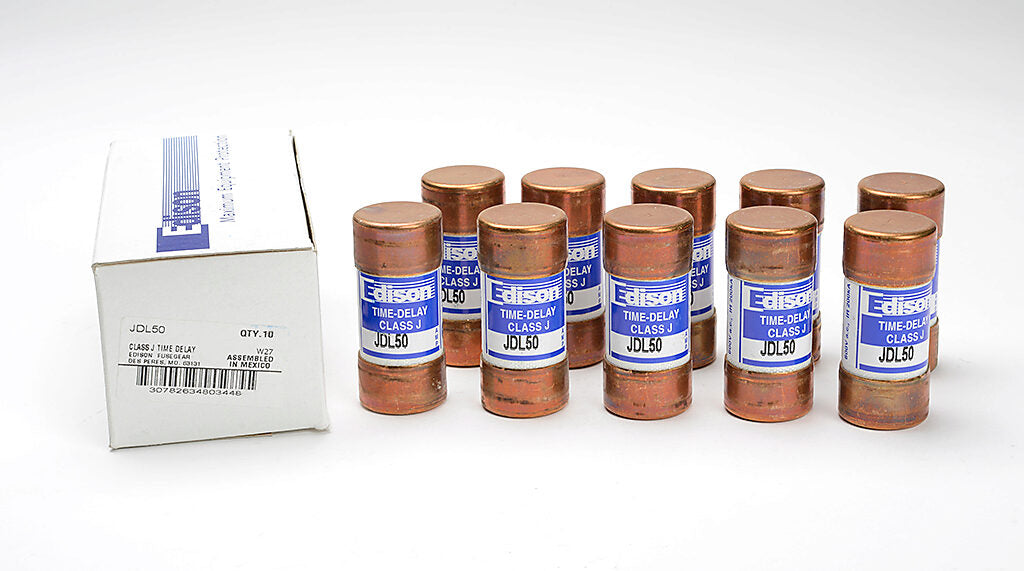

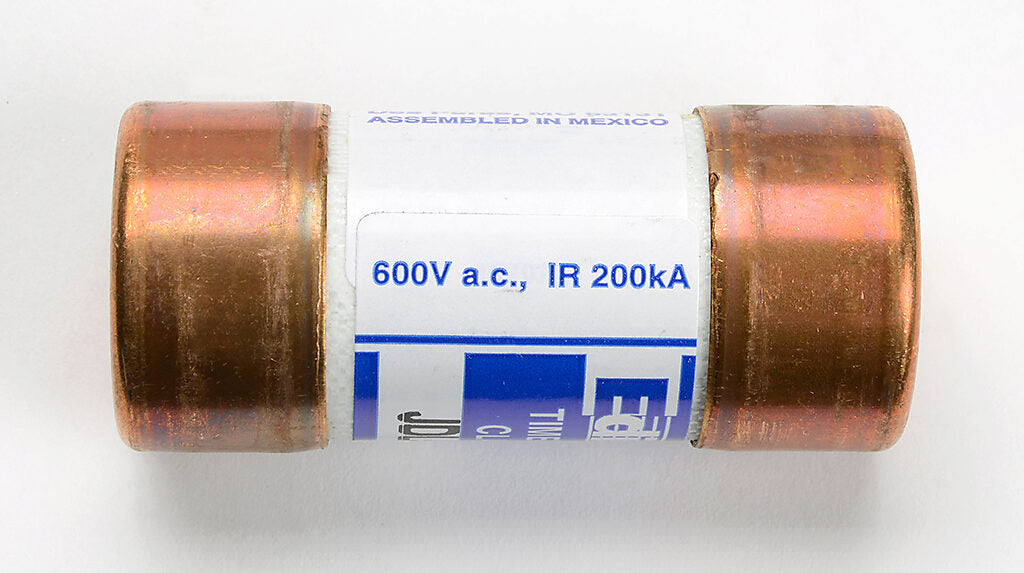

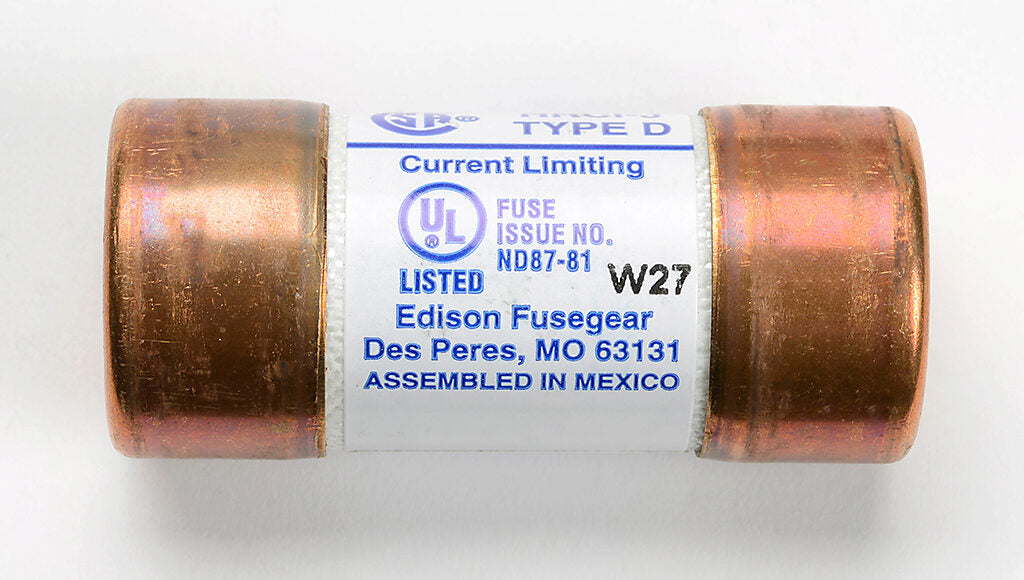

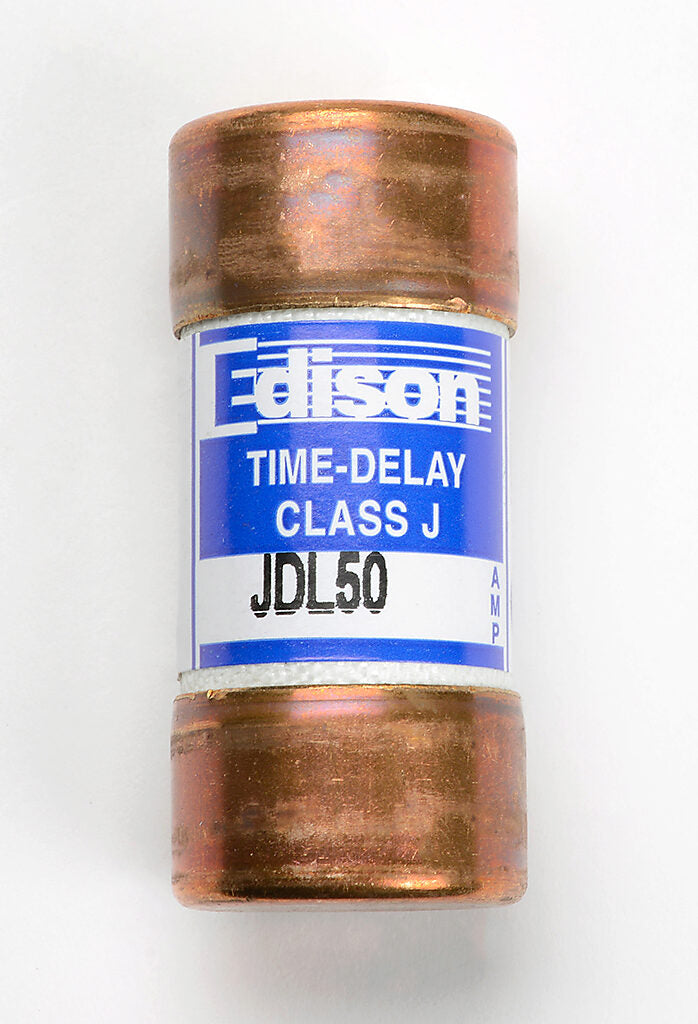

JDL50 is a 50A, 600V Class J time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This Edison Fuses JDL50 is a dual-element, time-delay fuse with a current-limiting design, providing a minimum 10-second time delay at 500% overload. It features a single-barrel construction with a 1.06-inch diameter and is suitable for feeder and branch circuit protection. The fuse is rated for 600V AC and offers a high interrupting capacity, making it ideal for protecting sensitive equipment and downstream devices.
- Amperage: 50A
- Voltage: 600V AC
- Fuse Type: Class J
- Response Time: Time-Delay
- Interrupt Rating: 200kAIC (symmetrical)
- Mounting Type: Ferrule
- Series: JDL
- Frame: Single Barrel
- Approvals: UL, CSA C22.2
- Dimensions: 1.06" diameter, 2.38" length
- Application: Feeder/branch protection
- Features: Dual-element, current-limiting
Specifications
- Part Number: JDL50
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 50
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 1.06
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data

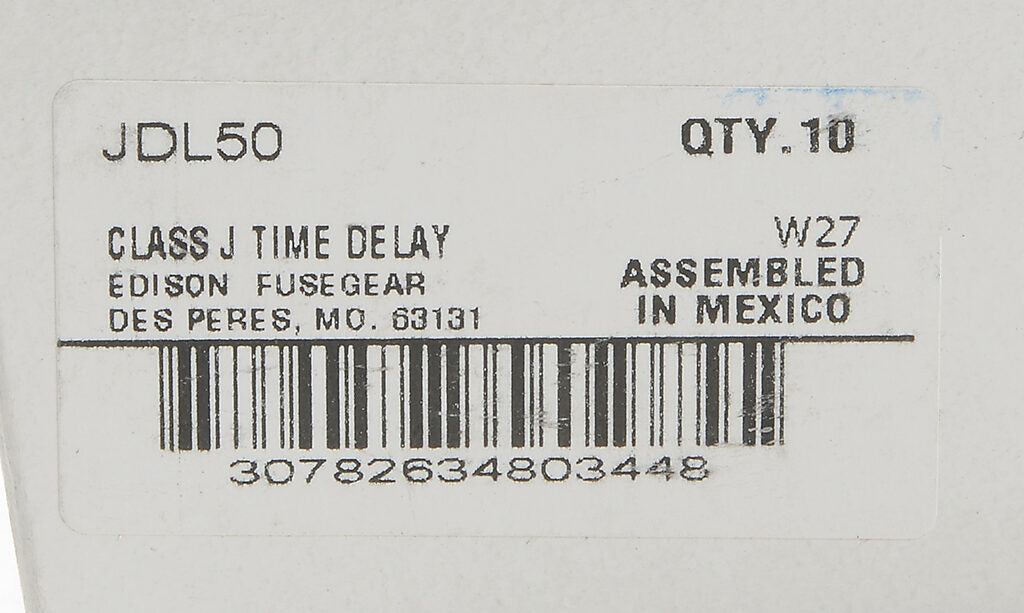

- UPC : 782634803447
- GTIN : 00782634803447
- Dimensions : 2.38 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
- Weight : 1
