JDL5 - Edison Fuses 5A 600V Class J Time-Delay Current-Limiting Ferrule Fuse, UL Listed, CSA Certified, 200kA Interrupt Rating

JDL5

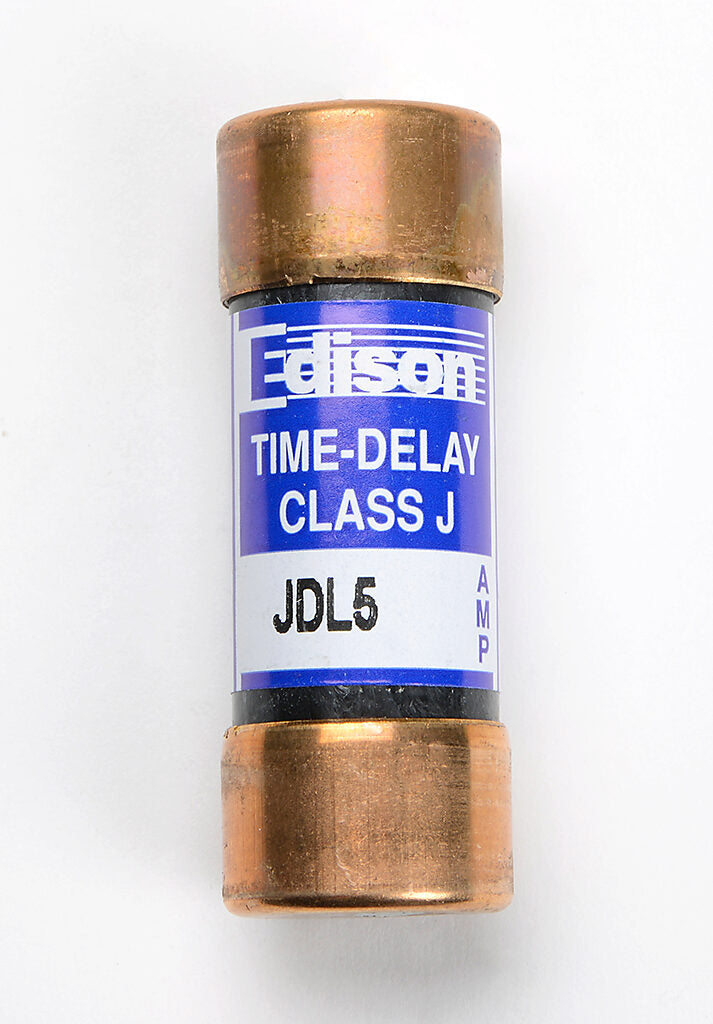

JDL5 is a Class J, time-delay, current-limiting ferrule fuse from Edison Fuses, designed for feeder and branch circuit protection in demanding electrical applications.

This fuse features a 5A amperage rating, 600V AC voltage rating, and a compact 13/16" x 2-1/4" ferrule body. It is UL Listed and CSA Certified, ensuring compliance with North American safety standards. The JDL5 offers a high interrupting rating of 200,000A symmetrical, providing robust protection against short circuits and overloads. Its time-delay characteristic allows for temporary inrush currents without nuisance tripping, making it ideal for motor and transformer circuits.

Key Specifications
• Part Number: JDL5
• Manufacturer: Edison Fuses
• Category: Fuse
• Amperage: 5A
• Voltage: 600V AC
• Poles: 1
• Mounting Type: Ferrule
• Interrupt Rating: 200,000A symmetrical
• Series/Frame: JDL
• Trip Unit: Time-delay, current-limiting

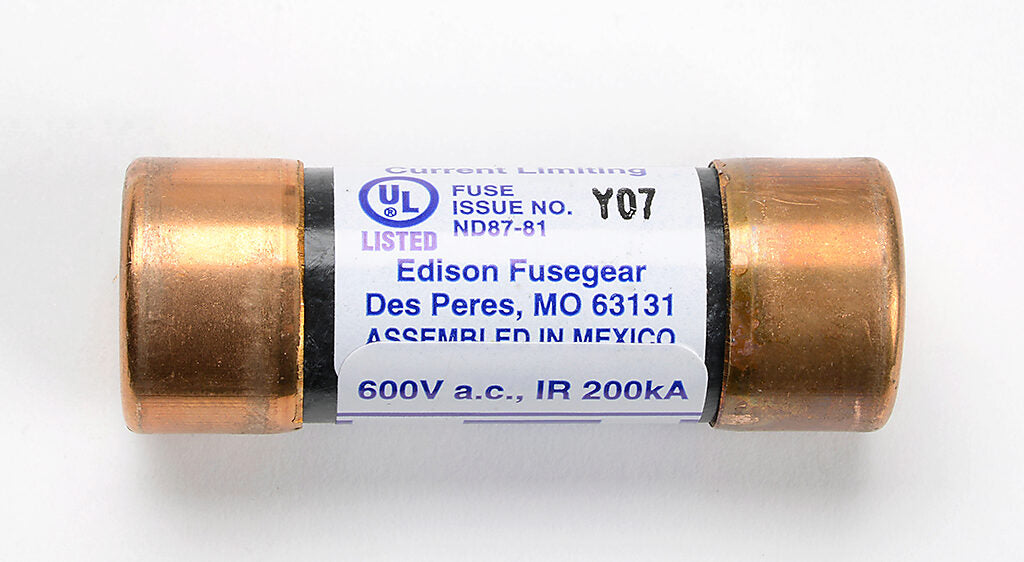

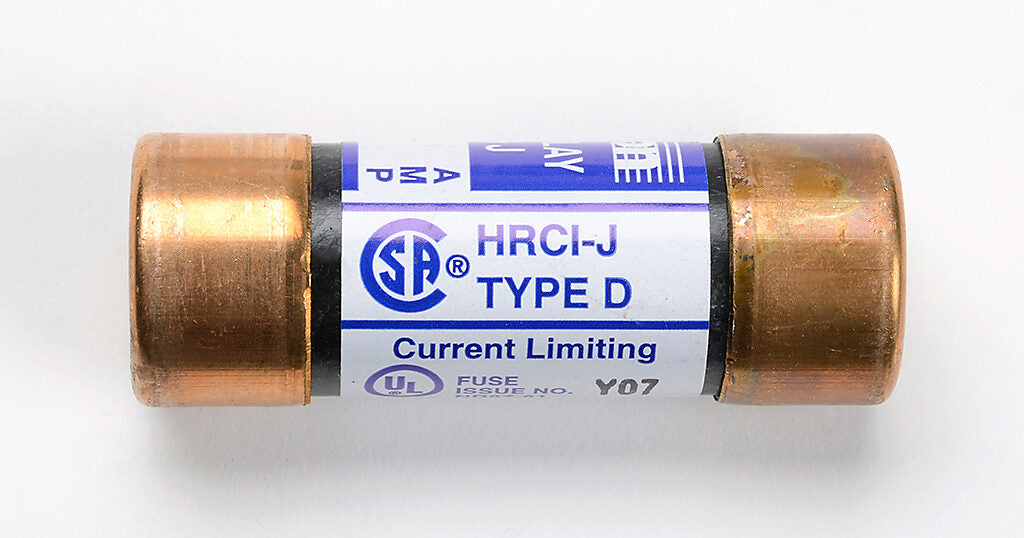

• Certifications: UL Listed (File E162363), CSA Certified (C22.2 No. 248.8)
• Body Size: 13/16" x 2-1/4" (20.6mm x 57.2mm)
• Application: Feeder/branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL5
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Type : JDL
• Voltage : 600
• Amperage : 5
• AIC rating : 300kA@600Vac
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : J
• Barrels : 1
• Velocity : D

Product Data

• UPC : 78263424916
• GTIN : 00782634249160
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1
