Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description

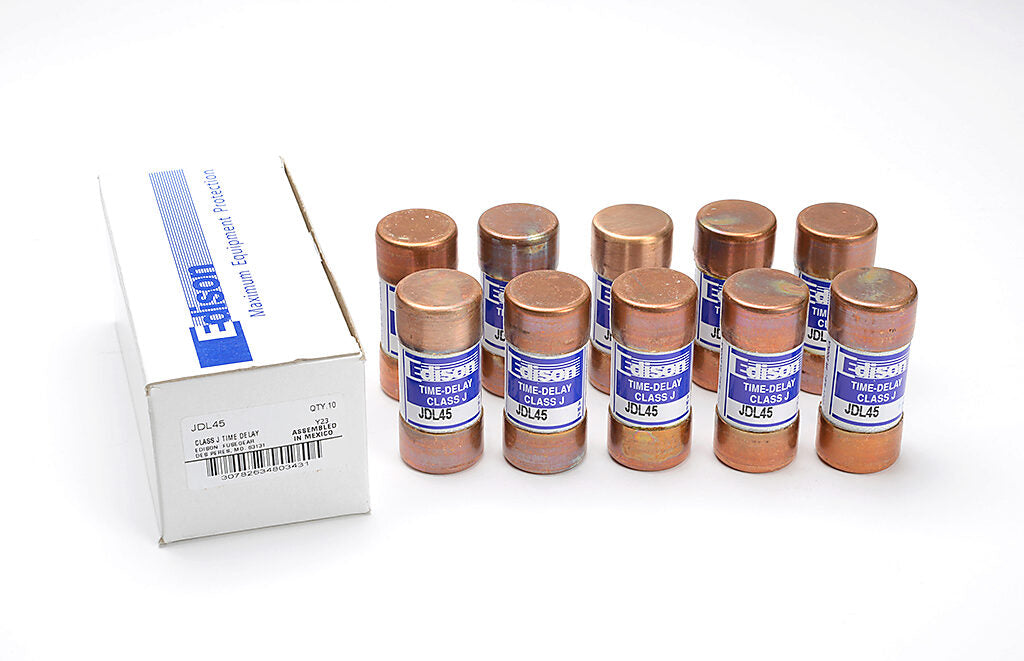

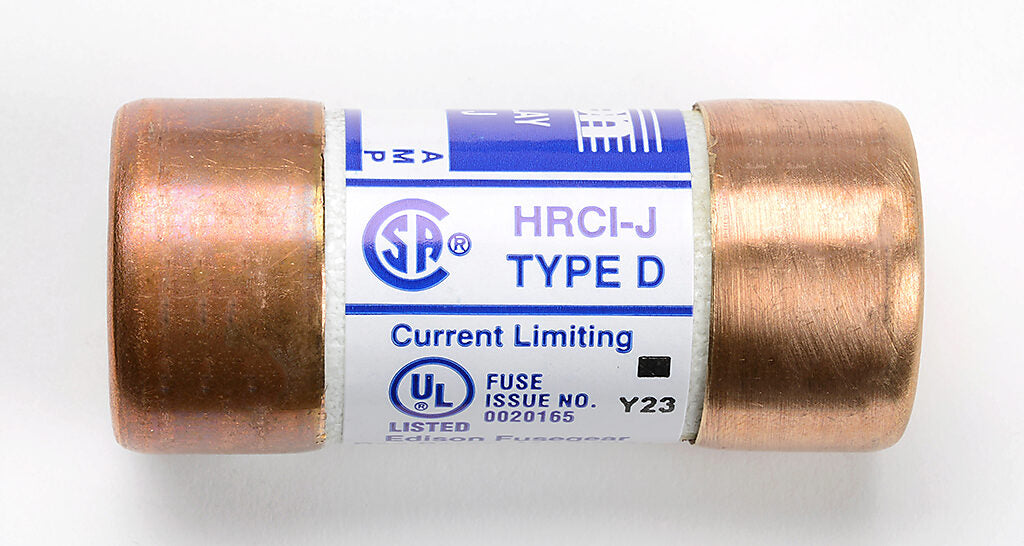

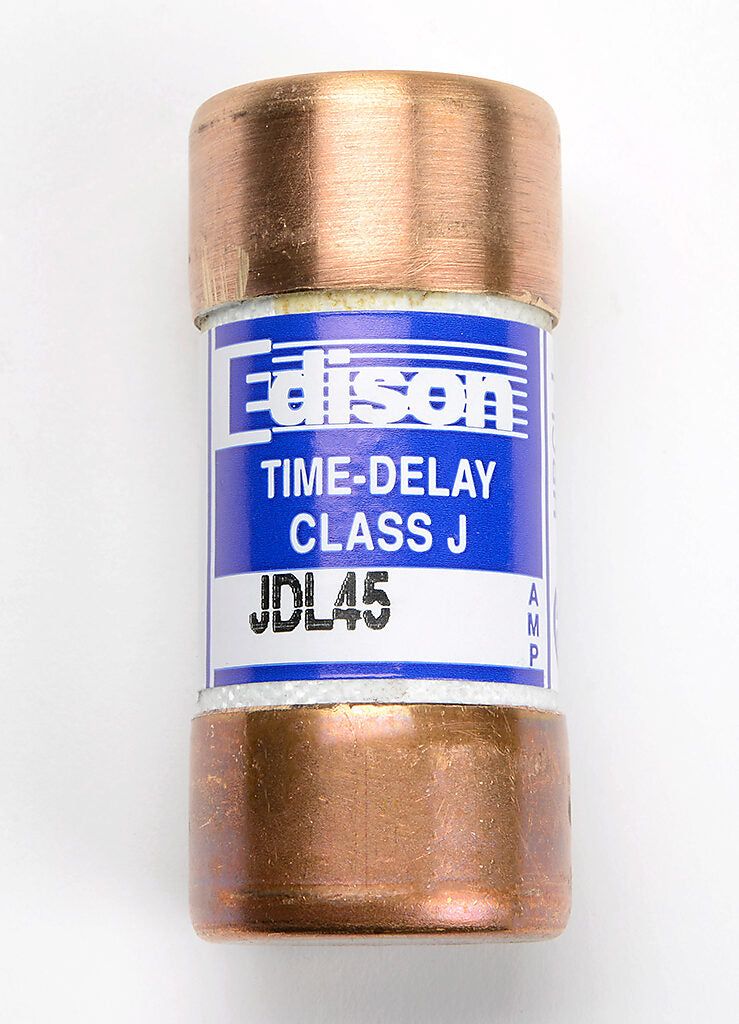

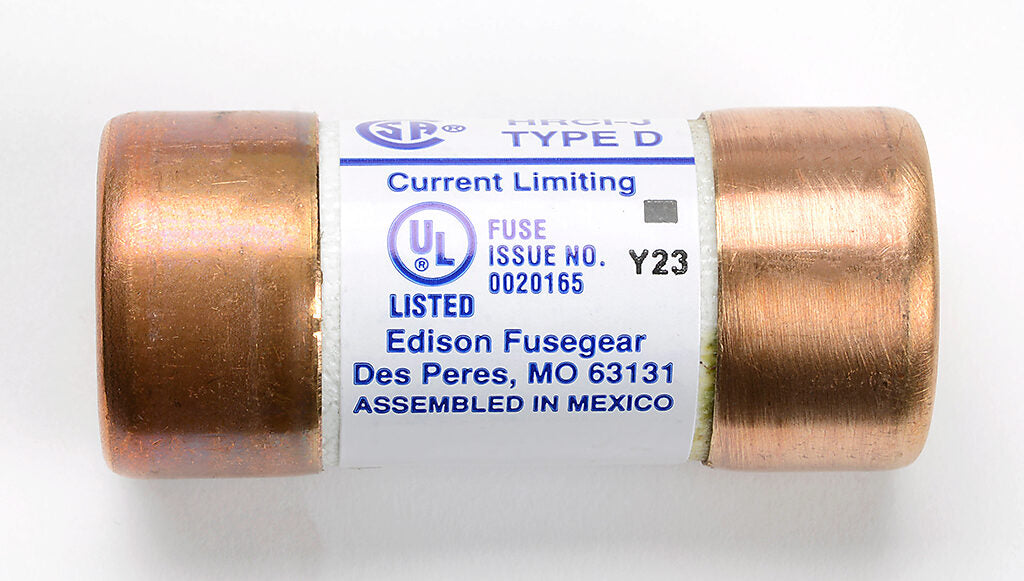

JDL45
JDL45 is a Class J, time-delay, current-limiting fuse rated for 45A at 600V AC, designed for feeder and branch circuit protection in industrial and commercial applications. This Edison Fuses JDL45 features a 1.06-inch diameter, ferrule mounting, and a 200kA interrupting rating at 600V AC. It is RoHS compliant and approved to UL and CSA C22.2 standards, making it suitable for use in a wide range of electrical systems requiring reliable overcurrent protection.
- Part Number: JDL45
- Manufacturer: Edison Fuses
- Amperage: 45A
- Voltage Rating: 600V AC
- Fuse Class: Class J
- Interrupt Rating: 200kA @ 600V AC
- Mounting Type: Ferrule
- Series: JDL
- Time-Delay: Yes
- Current-Limiting: Yes
- Certifications: UL, CSA C22.2, RoHS
- Diameter: 1.06 inches
Specifications
- Part Number: JDL45
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 45
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 1.06
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 78263480343
- GTIN : 00782634803430
- Dimensions : 2.38 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
- Weight : 1
