Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL400

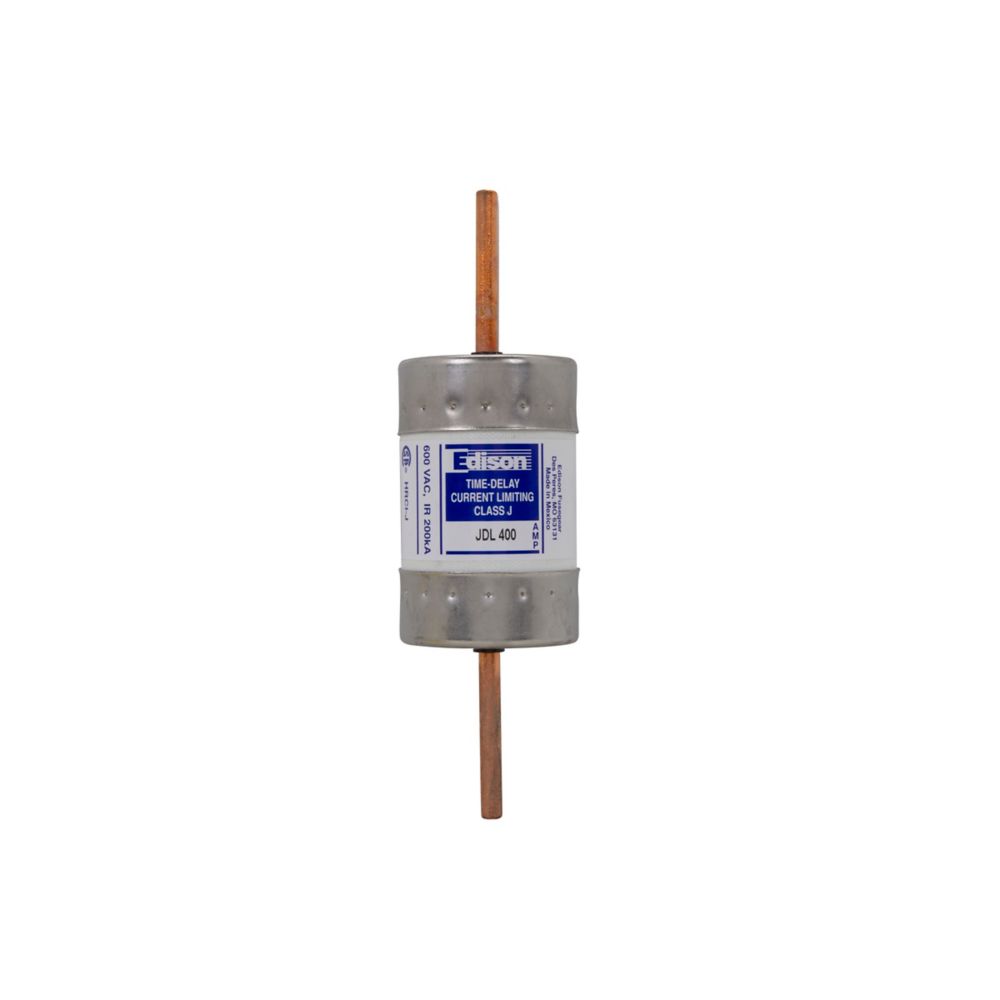

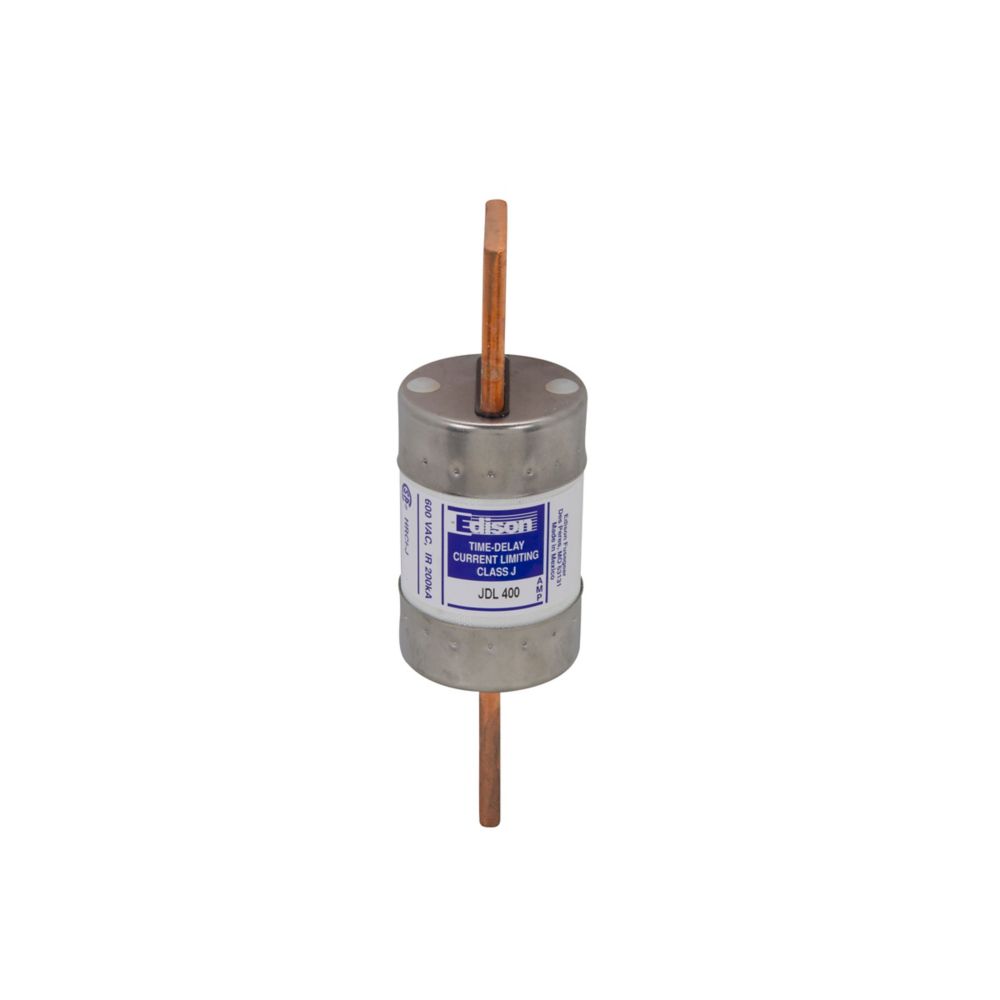

JDL400 is a Class J, time-delay, current-limiting fuse from Edison Fuses, designed for reliable feeder and branch circuit protection.
This non-indicating, knife blade fuse offers robust performance with a 400A amperage rating and 600V voltage rating, suitable for a wide range of industrial and commercial applications. Its dual-element, time-delay design provides enhanced protection against overloads and short circuits, while the current-limiting feature helps reduce potential damage from high fault currents.
-
Key Specifications
- Part Number: JDL400
- Manufacturer: Edison Fuses
- Amperage: 400A
- Voltage: 600V AC
- Poles: 1
- Mounting Type: Knife Blade
- Interrupt Rating: 200 kAIC
- Series/Frame: JDL
- Trip Unit: Dual-Element, Time-Delay (10 seconds minimum at 500% rated current)
- Certifications: UL Listed, CSA C22.2
- Application: Feeder/Branch Protection
- Non-Indicating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JDL400
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 400
- AIC rating : 300kA@600Vac
- Connection : Bolt-In Blade
- Diameter : 2.11
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 78263480359
- GTIN : 00782634803591
- Dimensions : 7.13 in x 2.13 in x 2.13 in (Length/Depth x Height x Width)
- Weight : 1.7
