Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
JDL4

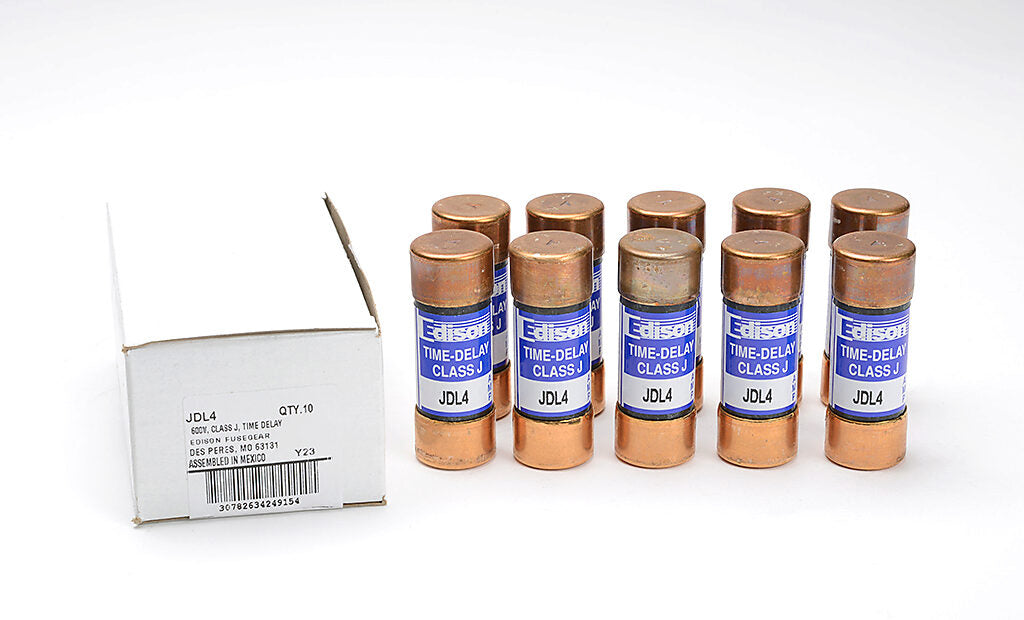

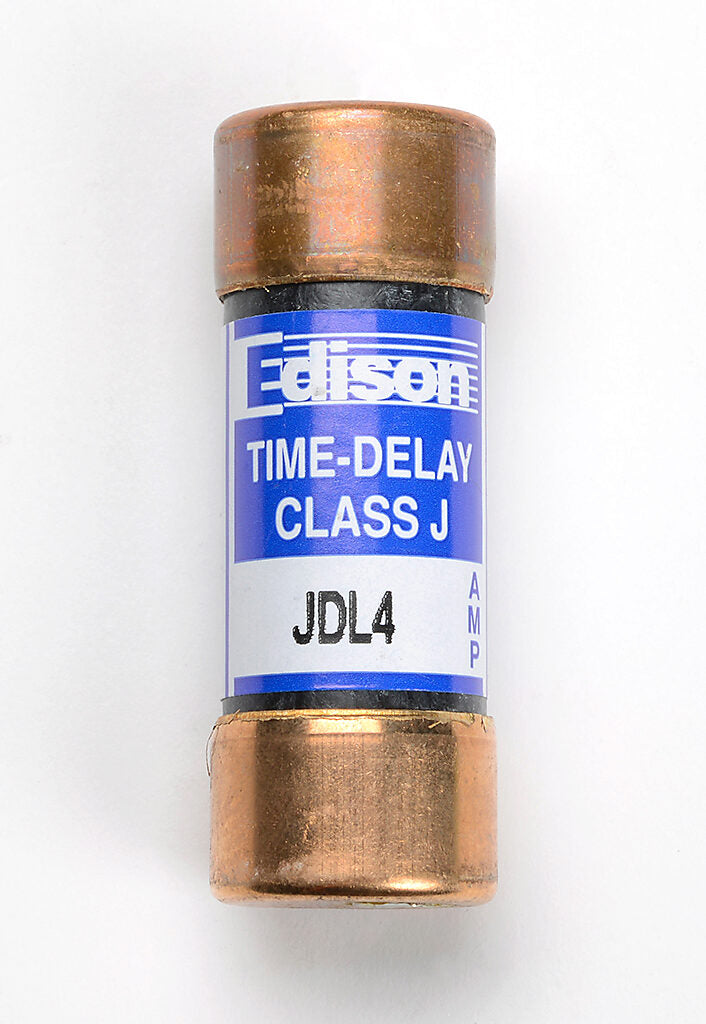

JDL4 is a 4 amp, 600 volt Class J time-delay fuse from Edison Fuses designed for reliable circuit protection.JDL4 features a current-limiting, dual-element design providing time-delay response to withstand temporary overloads while protecting against short circuits. It has a 200,000 amp interrupt rating and is UL listed and CSA certified for safety and performance. This fuse is ideal for feeder and branch circuit protection in industrial and commercial applications.
- Amperage Rating: 4 Amps
- Voltage Rating: 600 Volts AC
- Fuse Type: Class J, Time-Delay, Dual-Element
- Interrupt Rating: 200,000 RMS Symmetrical Amps
- Mounting Type: Ferrule
- Dimensions: 2-1/4 inch length, 13/16 inch diameter
- Certifications: UL Listed, CSA Certified
- Current Limiting Fuse
- Non-indicating Type
- Suitable for feeder and branch circuit protection
Specifications
- Part Number: JDL4
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 4
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
- Velocity : D
Product Data
- UPC : 78263424915
- GTIN : 00782634249153
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1
